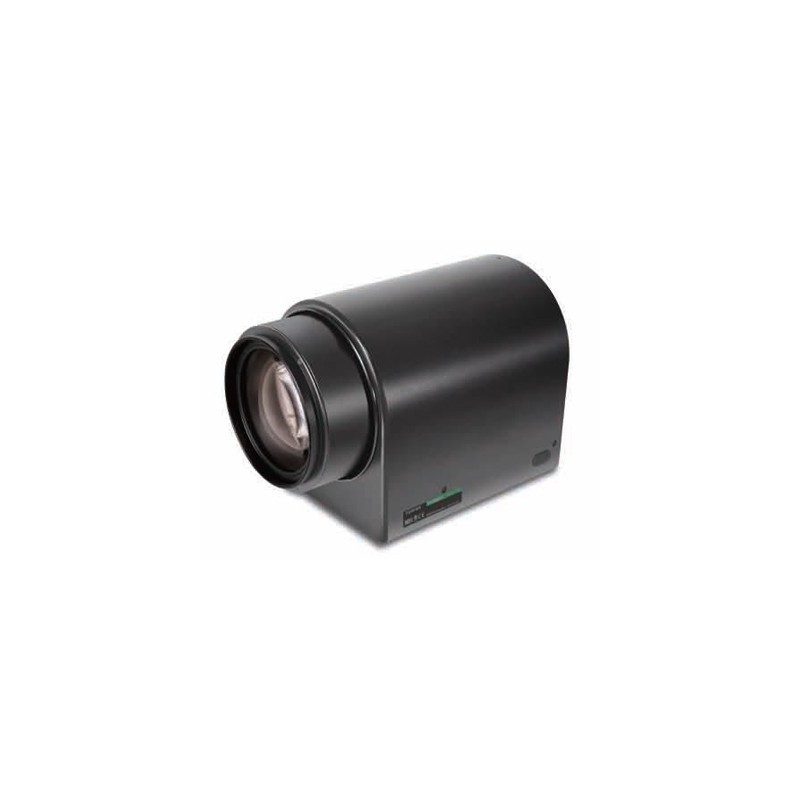

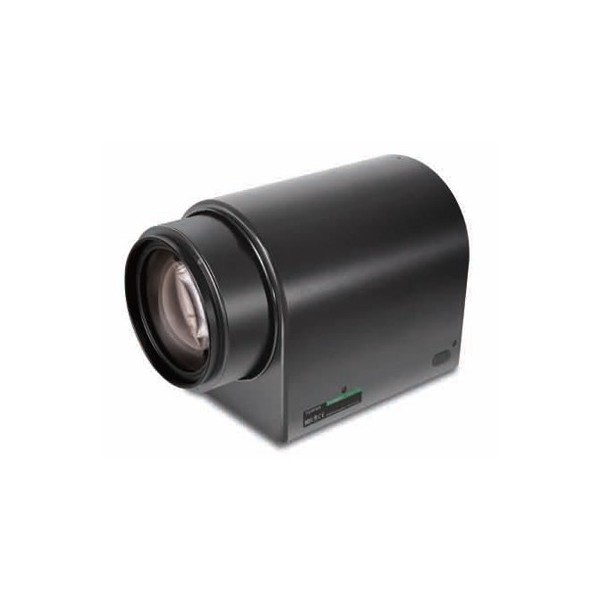

Fujinon D32X15.6HR4D-VX1 Lens 1/2 "zoom motorized telephoto 32x - Iris automatic
New product
Fujinon D32x15.6HR4D-VX1, zoom 32x focal length of 15.6 ~ 500 mm. 1/2 "lens, auto iris, C mount. 1.3 megapixel resolution day / night.
The Fujinon C-mount 15.6-500mm f / 3.9-T1500 telephoto lens is compatible with 1/2 "day / night cameras and features 32x optical zoom and motorized zoom control. of focus) or remote operation for the iris and multi-power compatibility (switchable 6/12 / ± 6 / ± 12 VDC) for connection to existing monitoring systems, for zoom operation.
Characteristics:
Focal length in mm 15.6 ~ 500
32x zoom ratio
Applicable lens for 1/2 "~ 1/4" cameras for 2/3 "cameras as well Iris range F3.9 ~ T1500 (equivalent F1500) Iris operation Iris mode switchable (video or DC) or remote control Focusing operation Preset Zoom operation Motorized drive
Preset possible:
Viewing angle 1/2 ": Wide: 22 ° 44 'x 17 ° 11' TV: 0 ° 45 'x 0 ° 34'
Minimum object distance (M.O.D.) 3 m
Focus range (from the front lens) in m infinity ~ 3
C mount
Weight: 2.7 kg
Filter thread M82 x 0.75
