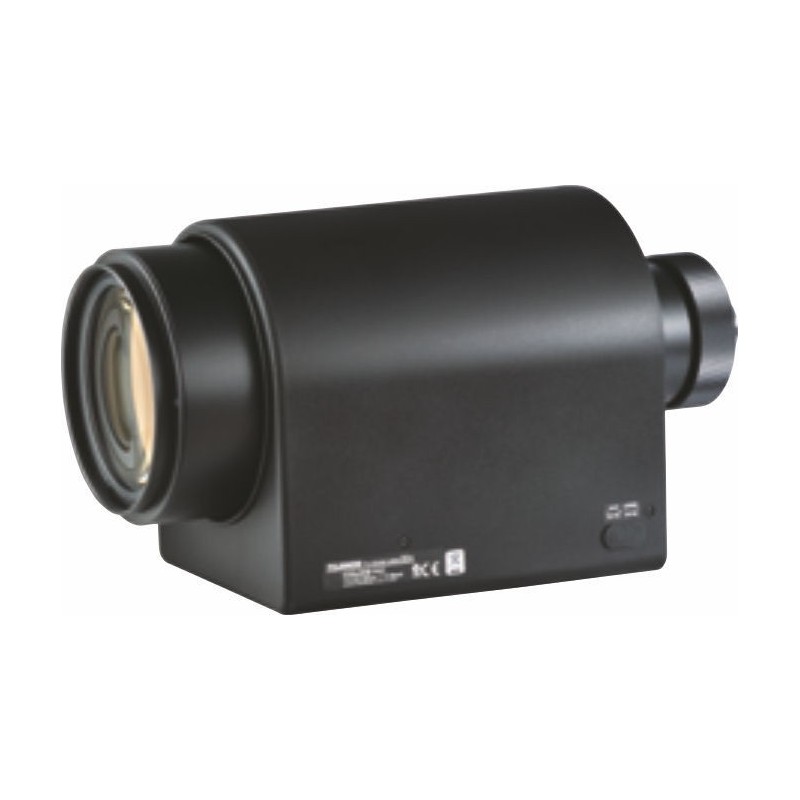

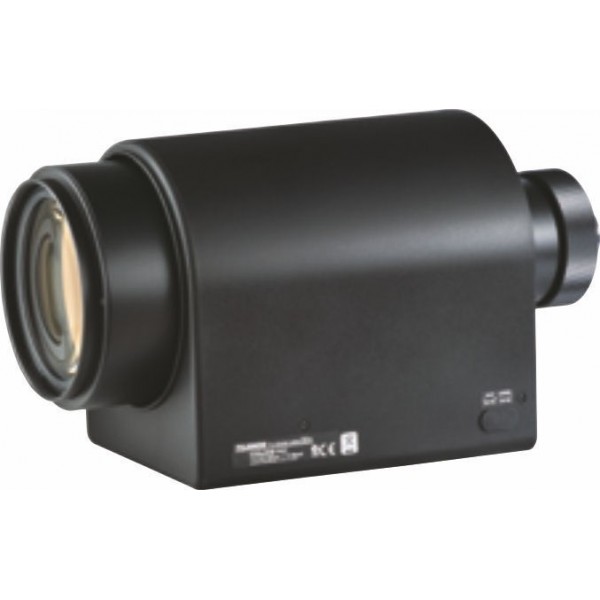

Fujinon C22x23R2D-V41 lens 1 "motorized zoom 22x day / night Iris automatic
New product
Fujinon C22X23R2D-V41. Motorized zoom 22x day / night (near infrared)
Focusing video lens 1 "1" 23-506mm F3.1. Iris automatic remote control.
Zoom lens with near-infrared wavelength selection mechanism, ideal for day and night cameras. High power zoom lens with a focal length of 500 mm, ideal for remote monitoring. Compact and lightweight design, allowing compact systems to be easily established. Multi-Power Compatibility (6V, ± 6V, 12V, ± 12V), for use with existing control systems. Special ND filter built into the T3000, supporting high-sensitivity cameras. The auto iris is remotely controllable, allowing you to fine-tune the light intensity based on the monitoring target. Supports 1 "II cameras.
Characteristics:
Focal length 23 mm - 506 mm (22x)
Motorized Focus
Iris range F3.1 - T3000 (equivalent to F3000)
Iris Auto (Type of video) or remote (* 1)
Zoom motor drive
Rear focal distance (in air) 39.54 mm
Leave the pupil position (from the image plane) -64 mm
Object dimensions to M.O.D:
1 "wide 1611 mm × 1208 mm Head 73 mm × 55 mm
2/3 "wide 1108 mm × 831 mm TV 50 mm × 38 mm
1/2 "wide 806 mm × 604 mm Telephony 37 mm × 27 mm
1/3 "wide 604 mm × 453 mm Head 27 mm × 21 mm
Angular field of view:
1 "wide 31 ° 06 '× 23 ° 35' Head 1 ° 27 '× 1 ° 05'
2/3 "Wide 21 ° 40 '× 16 ° 20' Head 1 ° 00 '× 0 ° 45'
1/2 "wide 15 ° 50 '× 11 ° 55' TV 0 ° 43 '× 0 ° 33'
1/3 "wide 11 ° 55 '× 8 ° 57' TV 0 ° 32 '× 0 ° 24'
Focusing range (from the front of the lens) - 3 m
Filter thread M82 × 0.75 mm
C mount
Weight: 2.4 kg
Standard Accessories IRIS Control Cable Connector (14-pin, 8-pin).
