CMD-BU20U - Full HD Camera - CMOS Sensor

New product

Quotation

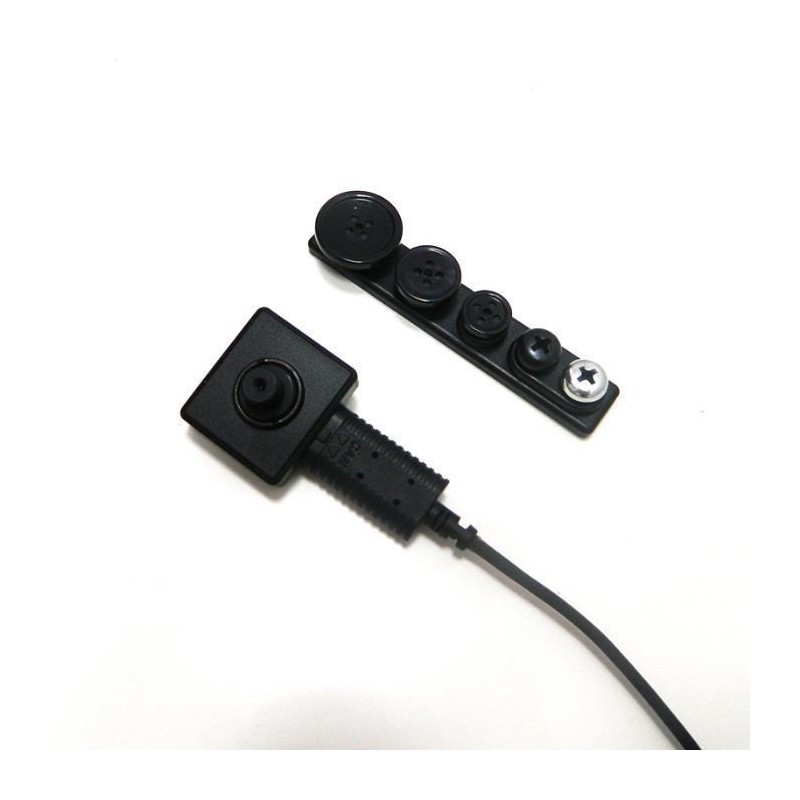

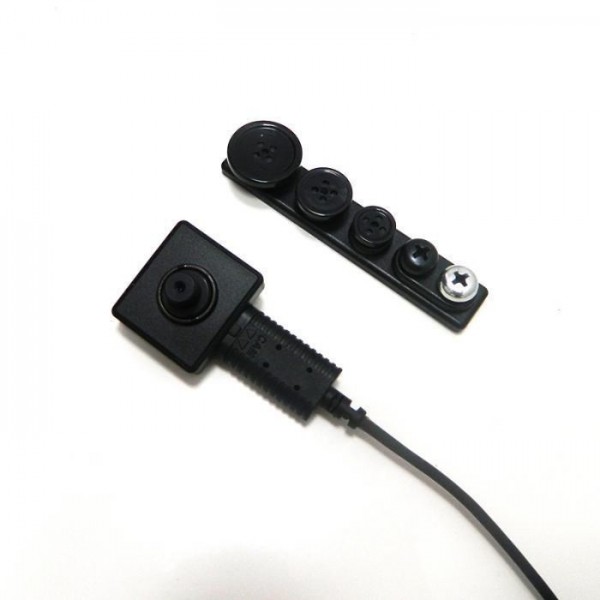

CMD-BU20U Full HD camera. 1200 TV line + CMOS sensor, 1080p digital resolution
Built-in microphone. Support for WDR (Wide Dynamic Range). High sensitivity (can record in low light situations)NTSC and Pal support. Interchangeable screw buttons
External AGC microphone.

More details

CMD-BU20U is the brand new Full HD camera that best exploits the PV-500 EVO2U and PV-1000 Touch5U premium digital video recorders. The new Sony CMOS 1 / 2.8 "sensor offers a resolution of more than 1200 TV lines as well as a 1920 X 1080 digital output for a more detailed, better and clearer image.

Characteristics
Model: CMD-BU20U
Video resolution:> 1200 TV lines
Pixel Size: 2.8um (H) x 2.8um (V)
Digital output: 1920 X 1080 (1080P)
Video system support: NTSC and PAL
Image Sensor Type: Sony CMOS Progressive 1 / 2.8 "
Sensitivity to lighting: 0.08 Lux / F2.0 (50 IRE)
Lens F / No: F2.0
Diameter of the lens: 4.3mm
Angle of view: 78 °
Depth of field: 50 cm -
Electronic shutter: 1/8 ~ 1/30 000
Video Output: Dana RAW
Audio output: 2 Vp-p (Max) Impedance of 10 KHz ohms
AGC:> 52 db (AGC disabled)
S / N ratio: 36 dB (Max)
Supply voltage: DC 3.3V +/- 5%
Supply current: 200 mA
Operating temperature: -10 ~ 60
Operating humidity: 20 ~ 90%
Storage temperature: -30 ~ 80
Dimension: 30X30X20 mm
Weight: 10 g
