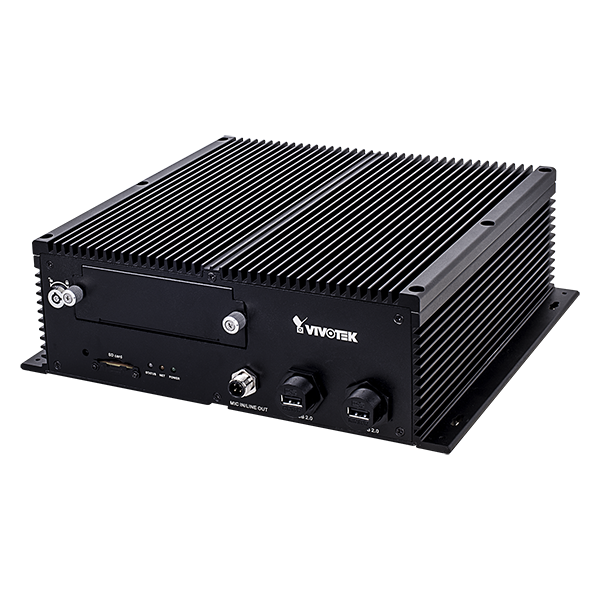

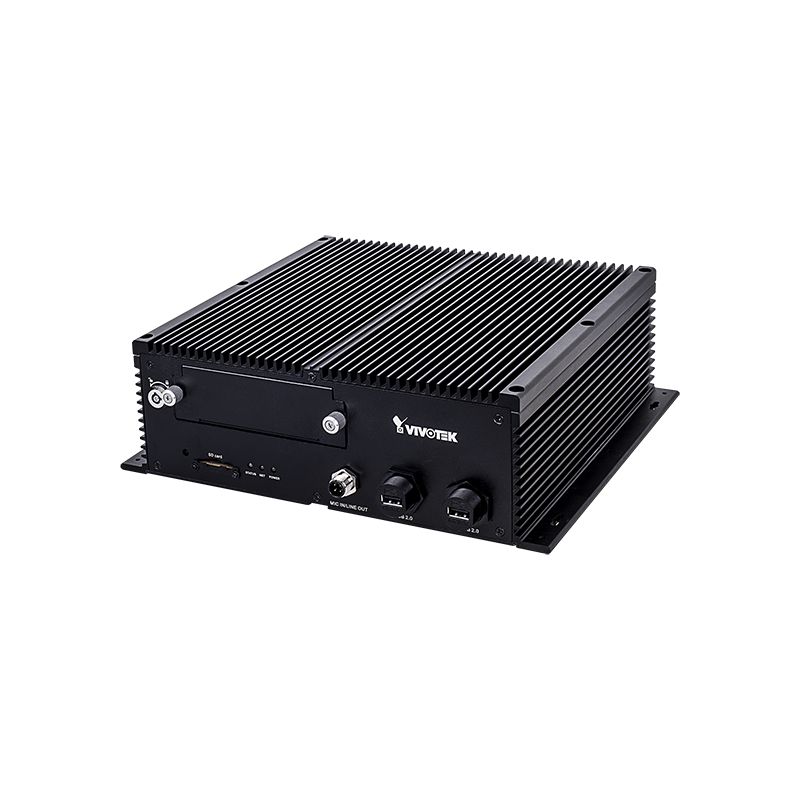

NV9311P M12 VIVOTEK 8 Channels Mobile NVR EN50155/MIL-STD-810G

Condition: Nouveau produit

H.265 8-CH Embedded PoE Mobile NVR

802.3at/af Compliant PoE & Management Efficiency
Built-in G-sensor for Vehicle Vibration Alerts
GPS Tracking on Google Maps with VAST 2 VMS
Delay Power On/Off & Low Voltage Protection
EN50155/MIL-STD-810G Certified

Plus d'infos
Télécharger

DISPLAY
LiveView Display 8 Channels
Multi-layout display: 1x1, 3V, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6
Video Output HDMI x1, VGA x1
Display Resolution 3840x2160,1920x1080, 1280x720
Stream Application ConstantAuto Adaptive Stream
Fisheye Dewarp 1O,1P,1R,1O3R,1O8R
PTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group)

VIDEO

Video Format MJPEG, H.264, H.265

Graphic Decoder Hardware decoding

Decoding Resolution UP to 3840x2160

Decoding Capability 3840x2160 @ 120 fps (4-CH) 1920x1080 @ 240 fps (8-CH)

RECORD

Recording Time (sec.) Pre-Record: 5 (Max. 10)
Post-Record: 20 (Max. 300)

Recording Stream Single

Recording Throughput 64 Mbps

Recording Mode Continuous, Schedule, Manual, Event, Activity Adaptive Streaming Recording Setting

Recycle (unit: Day) Watermark Supported

STORAGE:

DISK Devices Internal x1 (2.5" HDD/SSD)
(HDD is purchased by separately) HDD Max. Capacity
Please refer to HDD supported list on VIVOTEK website

Disk Management Create, Format and Remove Disk
HDD S.M.A.R.T SD Card
SD card slot x1 (reserved)

Video Clip Export USB Dongle (FAT Format)

Schedule Backup FTP

PLAYBACK

Playback Display 4 Channels
Multi Layout Display: 1x1,2x2,1P+3,1V+3

Playback ControlRegular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard)
Video Search By Calendar, Date/Time, and Alarm
Thumbnail Explorer (Storyboard)
Listing the thumbnail of recorded video (Max. 2 CH)
Snapshot JPEG
Video Clip Export EXE

NETWORK
Ethernet 10/100/1000Mbps Ethernet (RJ-45) x 1
Network Throughput in total 96 Mbps
WiFi 802.11a/b/g/n/ac 2T2R (optional)
Mobile Network LTE (optional)
PoE 802.3at/af compliant PoE ports x 8 (RJ45) (Total Max. 64W)
PoE Management Supported
Protocols IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter

EXTERNAL INTERFACE
USB Front x2 (USB 2.0) Back x1 (USB 2.0)
Alarm In 8
Alarm Out 4
Audio Line out x 1
Antenna Interface GPS x1, WiFi x2, LTE x2
RS232 1 Port (Reserved)

SYSTEM
Camera Integration ONVIF Profile S
GNSS GPS/GALILEO/GLONASS supported
G-sensor Supported Event
Motion Detection, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, GPS disconnected, GPS speed, G-sensor
Event Action Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS
User Management User level: administrator, regular user
Log System, Recording, User, Error
Date&Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time
Language Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese

REMOTE CLIENT
Software AP
Shepherd ,VAST 2
Mobile/Tablet App
iViewer (Android & iOS)
Web Browser
Internet Explorer 10 (32 bit) or later/ Windows
Chrome v68.0.3 & Firefox v61.02 or later/ Windows & macOS

GENERAL
Power Input DC 12V~48V ±10%
Power Management Programmable delay on/off relative to ignition or other switched voltage
Power Consumption Max. 149 W
Without HDD/SSD and PoE: Max. 15 W (Heater off), Max. 60 W (Heater on)
Dimensions 284 (W) x 230 (D) x 90 (H) mm
Weight 4.06 kg (without HDD)
Operating Temperature -40°C ~ 55°C (-40°F ~ 131°F)
Humidity 0 ~ 95%
Safety Certifications CE, FCC, VCCI, C-Tick, EN50155, EN61373, UL, CB, EN45545, EN50121-3-2/EN50121-4, MIL-STD-810G

NV9311P M12 VIVOTEK 8 Channels Mobile NVR EN50155/MIL-STD-810G

H.265 8-CH Embedded PoE Mobile NVR
