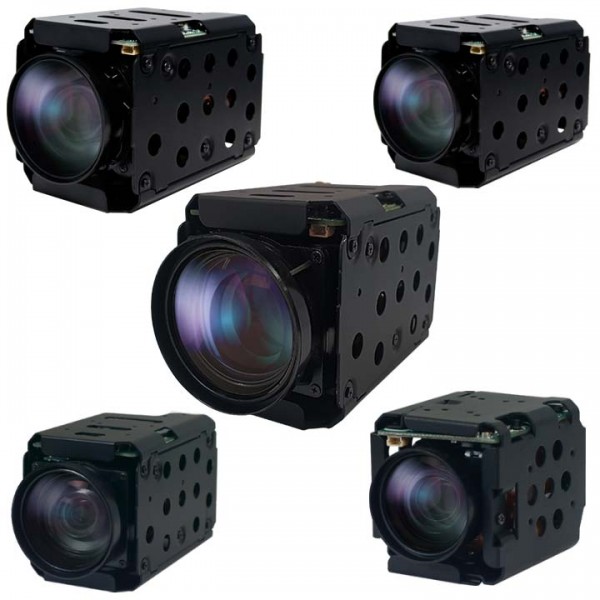

KTNC - Optical zoom block - Global Shutter 1.5Mp

The global shutter captures all the pixels of the sensor at the same time, immobilising the movement with total precision and without distortion.

In contrast, a rolling shutter works by exposing the sensor sequentially, usually from top to bottom. Although this exposure is very fast, sometimes the moving object is even faster, causing distortions in the image. This can be seen when capturing fast-moving actions such as the rotation of aircraft blades.

The global shutter is also a great advantage when filming in front of LED panels, often used as backdrops at sporting events. Even with high shutter speeds, these panels can show streaks that spoil the image. Using a global shutter, on the other hand, produces much more uniform panels.

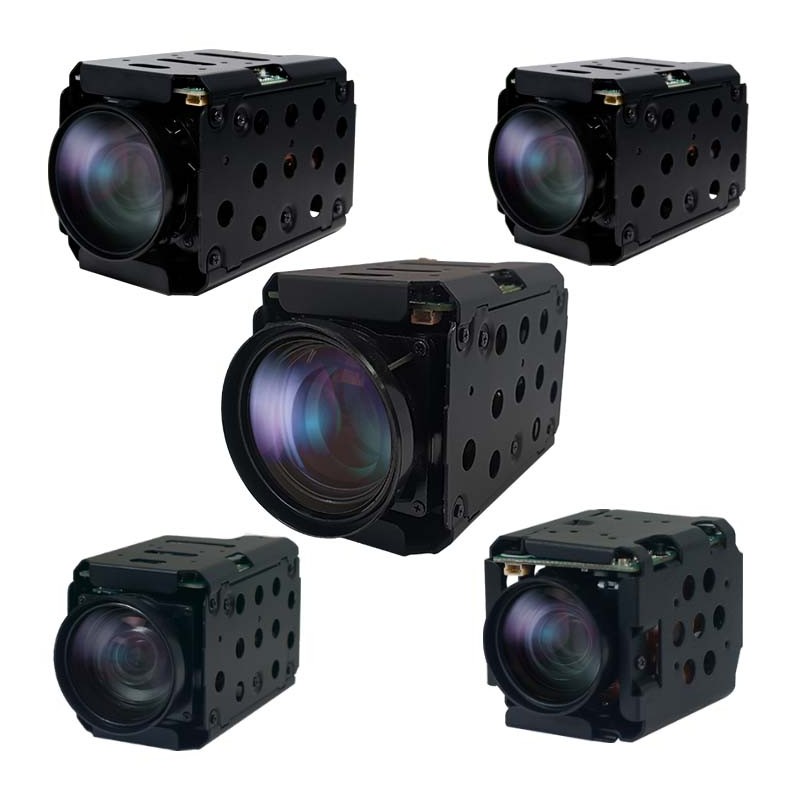

All models of KTnC Global Shutter optical blocks (click on the part number to download the datasheet):

Part number	Resolution	Zoom	Focal	Sensibility	Video output	Control	Min distance	Dimensions mm
ATC-HZ5540T-LP	720p 60/50/30/25	40x optical 12x digital	4.25~170mm	Day: 0.01Lux Night: 0.007Lux	Parallel LVDS CVBS	RS232 TTL VISCA/Pelco	0.01(W)/3m(T)	50x58.8x95.8
ATC-HZ5525Z-LP	720p 60/50/30/25	40x optical 12x digital	5.3~130mm	Day: 0.1Lux	Parallel LVDS CVBS	RS232 TTL VISCA/Pelco	0.1(W)/1.5m(T)	50x58.8x96.1
ATC-HZ5530T-LP	720p 60/50/30/25	30x optical 12x digital	4.3~129mm	Day: 0.01Lux Night: 0.08Lux	Parallel LVDS CVBS	RS232 TTL VISCA/Pelco/Hitachi	0.01(W)/1m(T)	50x58.8x95.8
ATC-HZ5508C-C	720p 60/50/30/25	8x optical 12x digital	5.6~43.7mm	Day: 0.01Lux Night: 0.08Lux	CVBS	RS232 TTL VISCA/Pelco/Hitachi	0.2(W)/1m(T)	41.6X45X61.6
ATC-HZ5508C-LC	1080p 60/50/30/25	8x optical 12x digital	5.6~43.7mm	Day: 0.1Lux Night: 0.08Lux	LVDS/CVBS	RS232 TTL VISCA/Pelco/Hitachi	0.2(W)/1m(T)	41.6X45X61.6
ATC-HZ5508C-P	1080p 60/50/30/25	8x optical 12x digital	5.6~43.7mm	Day: 0.1Lux Night: 0.08Lux	Parallel	RS232 TTL VISCA/Pelco/Hitachi	0.2(W)/1m(T)	41.6x45x61.6
ATC-HZ5508C-PC	1080p 60/50/30/25	8x optical 12x digital	5.6~43.7mm	Day: 0.1Lux Night: 0.08Lux	Parallel/CVBS	RS232 TTL VISCA/Pelco/Hitachi	0.2(W)/1m(T)	41.6x45x61.6
ATC-HZ5508C-L	1080p 60/50/30/25	8x optical 12x digital	5.6~43.7mm	Day: 0.1Lux Night: 0.08Lux	LVDS	RS232 TTL VISCA/Pelco/Hitachi	0.2(W)/1m(T)	41.6X45X61.6
