316L SST professional Underwater Camera with cable Designed for inspections, underwater diving, submerged marine applications, nuclear plants, and any other use where the camera operates underwater.
ALLWAN SECURITY
An Underwater Camera for Professional Diver Full HD Resolution Delrin Housing, Scratch-Resistant Sapphire Crystal Window
ALLWAN SECURITY
High definition mini camera in stainless steel 316L submersible 200m depth. Especially designed for TV production, 1080i or 1080p.As optional, a remote controller for video settings.IP68 immersion protection 100m or 200m reinforced allows permanent use in water.
ALLWAN SECURITY
Underwater Ethernet wide angle Full-HD video stream camera With remote video by cable, the UW-6020IP offers a FULL-HD high resolution video signal, which can be recorded on a laptop using VLC, using a VMS or a NVR.
ALLWAN SECURITY
Wired Wide-Angle Submersible IP Network Camera Video return to the surface via reinforced cable Perfect for underwater video surveillance requiring high image resolution Wide viewing angle in water
Underwater IP camera, 5MP submersible up to 100m, extendable to 500m upon request, with motorized varifocal lens 3.2-10.2mm. NDAA compliant
GigE Ethernet camera for underwater applications. Custom range according to your specifications.High frame rate camera.
ALLWAN SECURITY
Wired Underwater Camera ULTRA HD 4K 8MP - IP ONVIF Ethernet Network The only industrial underwater camera with optical zoom and 4K resolution. Suitable for marine applications, naval use, swimming pools, nuclear environments, and industrial settings
ALLWAN SECURITY
The new ZB1970LED is a compact Full HD video camera with a waterproof connector at the back. IP68 and manufactured in Stainless Steel 304, the ZB1970LED offers a clear image in HD-TVI format (AHD/CVI/Analogue CVBS on request).
ALLWAN SECURITY
HD UNDERWATER CAMERA Its 316L stainless steel body is submersible to 200m. It allows an optimal vision thanks to its wide angle of view and its white light.
ALLWAN SECURITY
Submersible camera at 50m depth. Compact with its small diameter of 29.5mm. Equipped with a lighting by 8 powerful LEDs. Applications in medium with radiation.
ALLWAN SECURITY

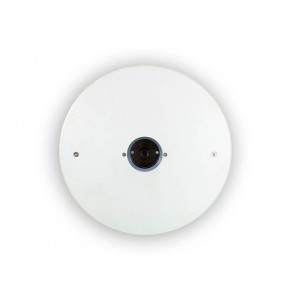

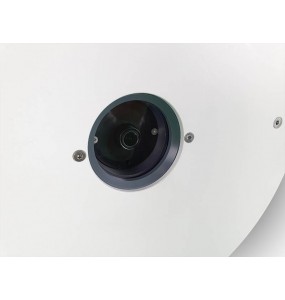

Swimming Pool Underwater camera | UW-POOLHD47 Permanent submersible to 50m for public pool monitoring. Materials selected for chlorine resistance. IP camera under the standardized OnVif protocol, RTSP video stream.
ALLWAN SECURITY
Study and custom manufacturing of underwater cameras With its expertise, design office, and machining center, ALLWAN-SECURITY's Industrial division designs and manufactures custom industrial and submersible cameras
ALLWAN SECURITY
Wired Full HD underwater motorized video camera with remote control

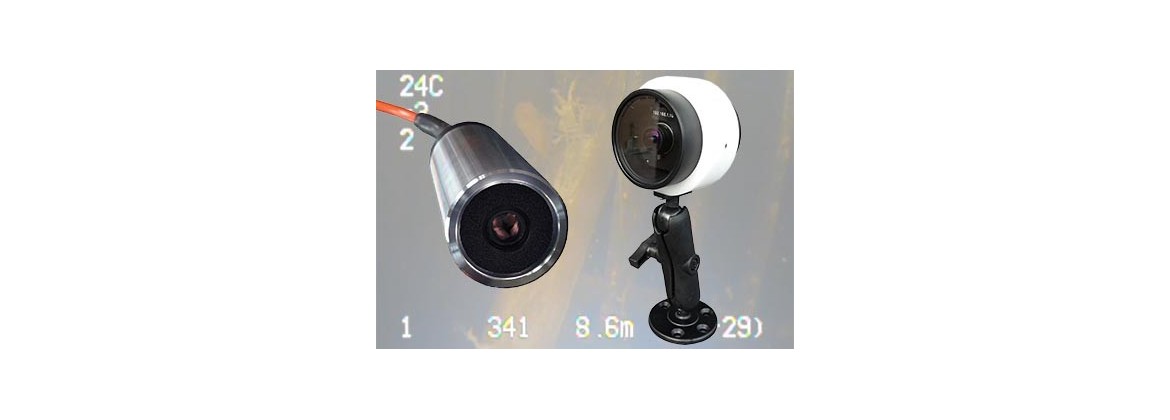

Subsea surveillance submersible cameras | Professional-grade
Our underwater camera solutions are specifically designed for industrial applications, nuclear power plants, ships and vessels, divers, and underwater inspections.
For the most demanding projects, we design and manufacture custom-built submersible cameras — please contact us for details.
Description
Allwan Security, a specialist in the design and manufacturing of industrial underwater cameras, offers a complete range of submersible cameras developed to meet the specific needs of the sector.
Fixed submersible cameras with various lens options
- Standard fixed-angle cameras for most applications
- Wide-angle cameras for close-range, wide field-of-view imaging
- Motorized varifocal lens cameras for adjustable angle and focus depending on the area to be monitored
- Remote-controllable optical zoom cameras for long-distance viewing or high-detail imaging of specific areas
Underwater surveillance cameras : A wide range of video technologies
- Coaxial analog PAL CVBS cameras
- Coaxial AHD, CVI, or TVI cameras
- IP cameras with RTSP, OnVif streams
- SDI cameras
- GigE cameras
Resolutions available depending on the submersible camera model
- D1
- 720p, 1080p (Full HD)
- 4K UHD 2160p
Underwater wired cameras : Frame rates
Our submersible cameras offer 25 fps for analog models, up to 50 fps or 60 fps for IP or SDI models, and for specific GigE-based models, frame rates can exceed 500 frames per second.
Underwater cameras: Various materials, custom options
- Delrin – Suitable for both fresh and salt water
- Stainless steel (various grades available, standard 316L) – Suitable for seawater or nuclear pool environments
- Aluminum – Treated upon request, for fresh or low-corrosive water
- Cupro-Aluminium – Highly resistant alloy for use in saline environments
- Titanium – Lightweight and resistant, ideal for marine immersion
- PVC – Resistant to chlorine or H₂S
- Any other material upon request
Our expertise ensures that each product is tailored to its intended use. All underwater cameras can be fine-tuned, including focus adjustments for long-distance viewing or macro close-up imaging.
Allwan supports you
Allwan Security helps you define a solution suited to your application — not only the cameras themselves but also the required cables, video stream management, control systems, and monitoring.
We offer complete video control systems in server racks, desktop equipment, or all-in-one portable field cases.
Each solution is assembled in France in our workshops, configured, and tested before delivery.
All systems are delivered with the necessary technical documentation for operation and maintenance.
