Atex Panel PC - Zone 2 There are 4 products.
ALLWAN SECURITY

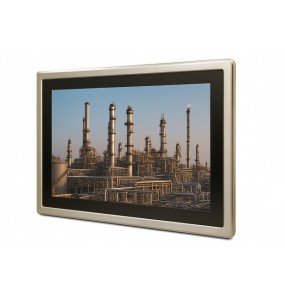

EX15-Z2 : Ecran Atex zone 2 - 15"
EX15-Z2 – High-Performance 15″ Stainless Steel IP65 ATEX Display 15-inch stainless steel IP65 high-brightness ATEX display certified for Zone 2 and Class I Division 2. Robust touchscreen monitor, ideal for explosive environments in chemical, oil & gas, food processing, and offshore...
HMI Atex and Displays for Zone 2 Hazardous Areas
Robust Solutions for High-Risk Environments
In industries such as oil, gas, petrochemicals, or energy processing, equipment must operate reliably and continuously under extreme conditions. This range of industrial Panel PCs and displays, certified ATEX/IECEx, meets the requirements for Zone 2 / Class 1 Division 2 classified areas, combining safety, reliability, and long-term performance.
Built for Extreme Environments
These systems are engineered to withstand dust, moisture, vibrations, and extreme temperature variations. Their stainless steel enclosures with IP65 or IP66 protection, combined with fanless design, ensure maximum durability in demanding industrial settings.
Industry-Ready Touch Interface
Equipped with projected capacitive (PCAP) or resistive touchscreens depending on the model, these Panel PCs are glove-operable. They provide smooth, precise interaction—essential for field operators.
Optimal Visibility, Even Outdoors
Certain models offer high-brightness displays up to 1000 nits, ensuring perfect readability in direct sunlight. These screen options are designed for intensive use, whether offshore, in refineries, or on drilling sites.
Wide Operating Temperature Range
Thanks to optimized thermal design and industrial-grade components, these systems can operate in extreme temperature ranges from –40 °C to +70 °C, depending on the model. An optional smart heater ensures reliable functionality even in freezing environments.
Processing Power and Industrial Compatibility
These Panel PCs are powered by Intel Atom, Celeron, or Core i5 processors and support Windows 10/11 IoT Enterprise or Linux Ubuntu, making them ideal for SCADA, HMI, Industrial IoT, or process monitoring applications.
Connectivity and Modularity
The modular architecture allows integration of the interfaces required for each project: USB, serial ports (RS232/RS422/RS485), Ethernet LAN, digital I/Os (DIDO), and more. Everything is designed for simplified maintenance and rapid deployment in the field.
Typical Applications
These Panel PCs are ideal for critical systems operating in hazardous locations:
Control and automation in ATEX zones
SCADA/HMI interface and supervision
Process automation in Oil & Gas
Data collection and control in classified environments
Monitoring of production or energy transport equipment
Why Choose This ATEX Range?
ATEX Zone 2 / IECEx / C1D2 certifications
IP65/IP66 stainless steel housing
Fanless, silent, and reliable operation
Glove-compatible touchscreens
High brightness up to 1000 nits
Wide temperature range: –40 °C to +70 °C
Multiple industrial-grade interfaces
Windows/Linux compatibility for critical applications
