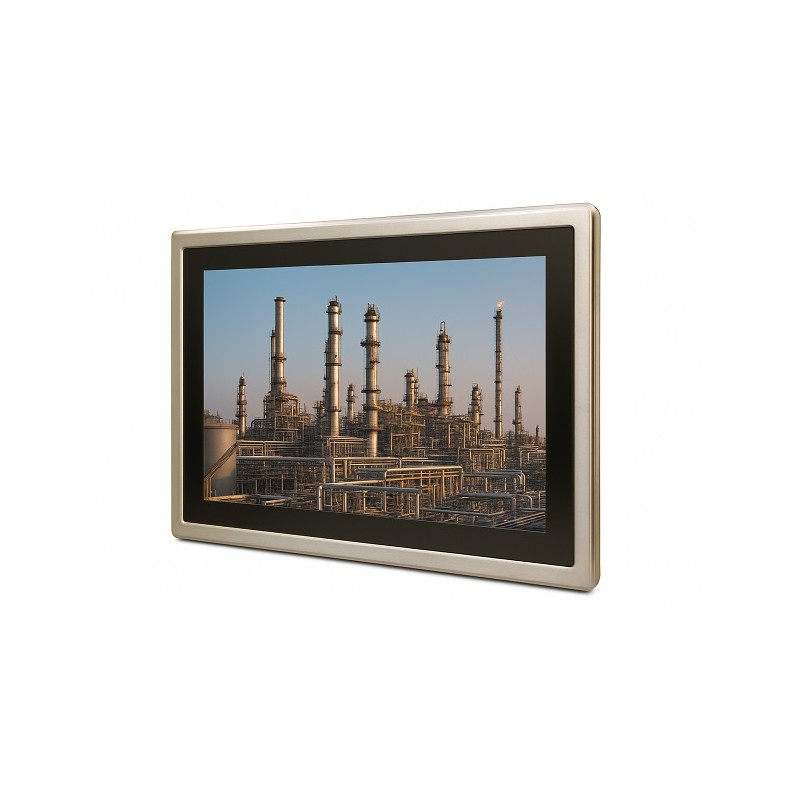

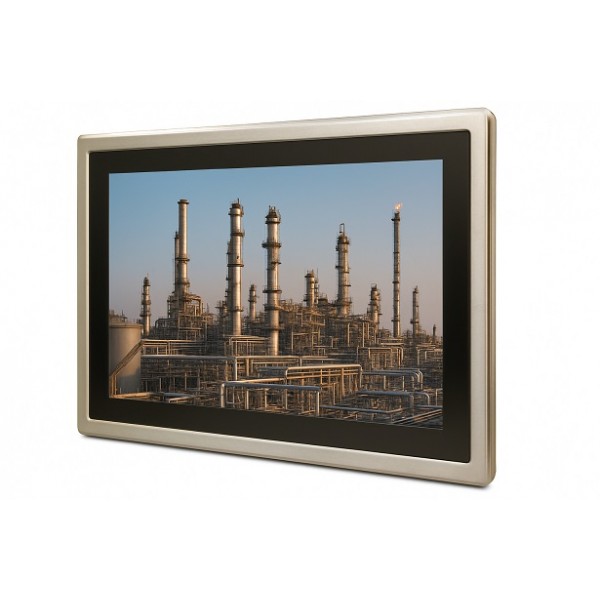

EX15-Z2 : Ecran Atex zone 2 - 15"

Technical Overview

The EX15-Z2 is an ATEX-certified monitor for Zone 2 (ATEX II 3G Ex ic nA IIC T4 Gc) and Class I Division 2 / C1D2, ensuring maximum safety in potentially explosive atmospheres. Constructed from stainless steel, it features an IP65 rating, protecting against dust ingress and water jets. Its ruggedness is further certified to MIL-STD-810G standards (vibration, shock, drop, humidity).

Display & Touch Interface

• Size / Resolution: 15″ – 1024 × 768 pixels, 2000:1 contrast ratio, wide viewing angles (88°/88°/88°/88°).

• Brightness: 550 nits standard, option up to 1000 nits for sunlight readability.

• ATEX Touchscreen: 5-wire resistive ELO technology (explosion-proof) or alternative multi-touch P-CAP, compatible with gloves and heavy-duty use.

Industrial Connectivity

All ports are protected by waterproof M12 connectors:

• Touch USB, RS-232, VGA.

• Power supply 9–36 V DC via M12.

• LED indicators for power and standby status.

Installation & Ergonomics

• VESA 100 × 100 mm mount, compatible with articulating arms.

• Rear mounting option integrated into panel or console.

• Encased in a compact housing: 396 × 310 × 49 mm, weight: 5.7 kg.

Extreme Environment & Durability

• Operating temperatures: –20 °C to +60 °C (storage up to –30 °C / +70 °C).

• Humidity: 10% to 95%, non-condensing.

• Fanless design suitable for humid and dusty environments.

• This stainless steel waterproof ATEX Zone 2 display is IP65 certified against water jets.

Certifications & Compliance

• ATEX Zone 2, Class I Div 2 – standards EN 60079-0, -11, -15 and ANSI/ISA-12.12.01.

• IECEx, CE, FCC, UL 60950-1, CSA C22.2, EN 62368-1.

• Compliance with MIL-STD-810, IP65, and food-grade stainless steel certification.

Added Value for Industrial Users

• ATEX Safety: compliant with explosive zones, ideal for chemical, oil, gas, and pharmaceutical industries.

• High Visibility: bright, anti-reflective screen, suitable for outdoor use.

• Stainless Steel Ruggedness: corrosion-resistant, ideal for the food industry.

• Simplified Maintenance: IP65 housing easy to clean, standardized VESA mounting.

• Operational Savings: durable integration, fewer failures, reduced maintenance costs.

Use Cases

• Refineries & offshore platforms: continuous monitoring, process supervision.

• Chemical & pharmaceutical production: classified zones, high-pressure cleaning.

• Food industry: protection against corrosion and intensive washing.

• Industrial automation: rugged touch HMIs, SCADA / PLC interfaces.

Summary

The EX15-Z2 is an ATEX innovation combining:

• Visual performance (15″, 1000 nits),

• Industrial touch (resistive / P-CAP),

• Stainless steel & IP65 durability,

• Secure M12 connectivity,

• Full ATEX/IECEx/C1D2/MIL-STD certifications.
