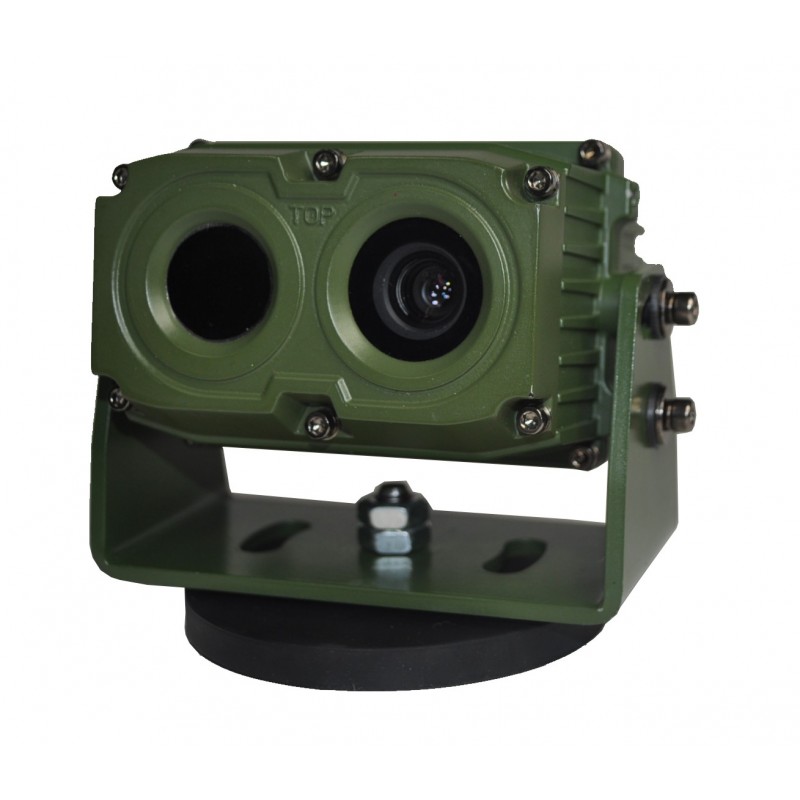

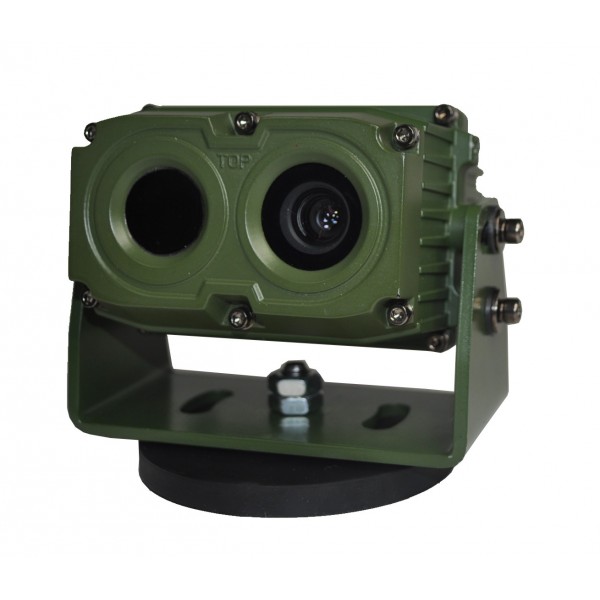

FU200A Onboard camera thermal fusion thermal sensor

New product


Embedded camera fusion thermal sensor / CMOS. Night driving assistance camera for military vehicles. The driver can drive vehicles safely with the headlights off or in low light conditions, as driving can immediately react to potential risk by detecting traffic lanes, people and animals on the road.

More details

Mobile vehicle bispectrale fusion thermal camera

1. Light weight and compact
2. Mode in display: Black hot, White hot, green hot;
3. Output mode: Thermal, visible light and fusion;
4. Distinguish the background and the pits of the road;
5. Fast sensing the low temperature, and self heating to prevent the lens from fogging or freezing;
6. IP67 Protection;
7. 1-10 settings of brightness and contrast
8. Horizontal angel of adjustment: -20°~20°
9. Screen: wide and narrow

This is a camera for assisting the night driving of military vehicles.
The driver can drive the vehicles safely with the vehicles lights off or under the low light condition, because the drive can immediately respond to the potential risk by detecting the lanes, people and animals on the road. Thus, it can be used on the military vehicles during night transportation of the soldiers or supplies.

The detection distance is ≥100 meters for human target (1.7m * 0.5m), in the environment of
visibility≥ 10km,relative humidity≤65%, temperance difference between human and environment ≤3℃。
Field of view 36°×27° (thermal and visible light)
Frame rate 25 HZ
Image output format CCIR Standard video signal
Gain Automatic
Dimensions 110×75×110mm
Weight (g) ≤950g
Video interface Analog output interface
Display resolution 800×600 pixels
Display dimensions 200mm×150mm×20mm
Display weight (g) ≤500g
Working voltage 9~32V
Smart detection of
walking people Support
Smart lane Support
Fusion of two
spectrum Support
Zoom 1X, 2X
Display mode black hot, white hot and green hot
Storage temperature -41℃~+70℃
Working temperature
Outside the vehicle:-40℃~+60℃
In the vehicle: -30℃~+60℃
Protection IP67
MTBF 4000h
MTTR 30min
Self test Self test after switching on and interface for other testing
Thermal sensor 384X288 pixel
Visible light sensor 1280X960 pixels
Output resolution after fusion 720X576 pixels
Universal interface
