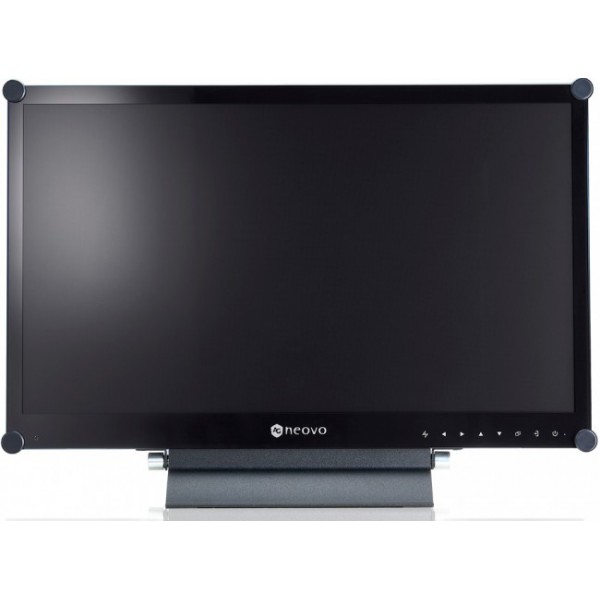

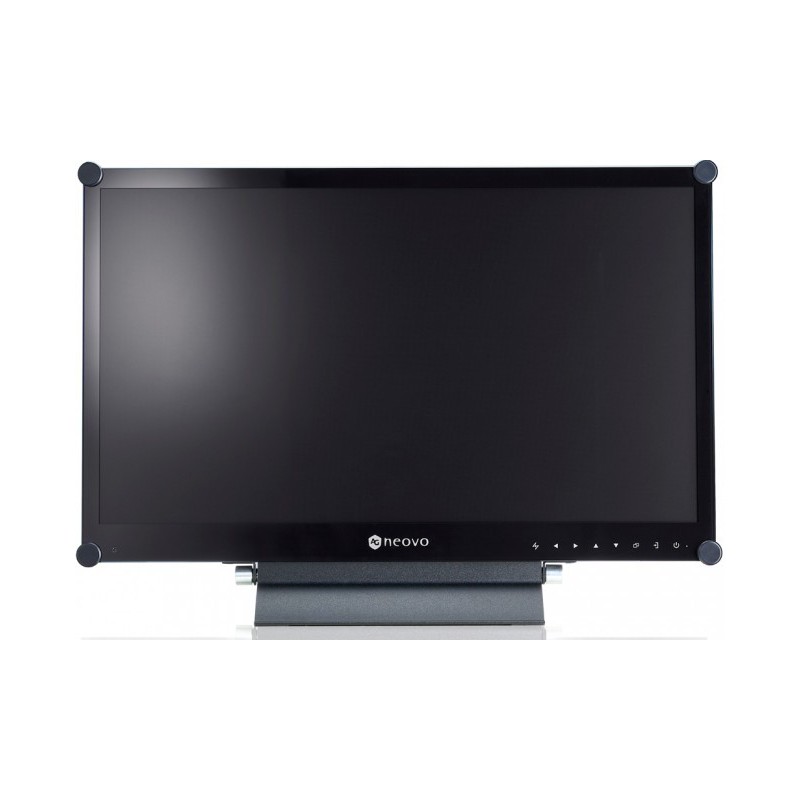

HX-24G - Neovo 24" SDI Surveillance Monitor 24/7 Glass Panel

Description

Designed for high-definition, uncompressed video broadcasting and transmission applications, the HX-24G monitor features both SDI input and output.

This allows for the reception and transmission of megapixel images directly from 3G/SD/HD-SDI devices. With extremely low latency and the ability to maintain reliable transmission over long distances, the HX-24G is ideal for production studios and broadcast environments.

Its NeoV™ optical glass and robust metal casing provide advanced protection, enabling the HX-24G to withstand the demanding conditions of studios and surveillance environments.

Perfect for real-time, lossless broadcasting, the HX-24G is the optimal choice for the broadcasting, security, and public sector applications.

Continuous Transmission The HX-24G has been specifically designed to meet the needs of broadcasting and surveillance applications. It supports multiple SDI video formats, including up to 3G-SDI, ensuring seamless transmission of any type of video signal. Its high-quality SDI input and loop SDI output enable easy connection to other devices, eliminating the need for an external splitter

Exceptional Image Quality

Equipped with advanced technologies, the HX-24G delivers enhanced resolution, allowing for sharper and more detailed image reproduction. With image settings optimized by AG Neovo, it adjusts color, brightness, sharpness, and contrast, offering better control over shadows, lighting, and precise color rendering in videos.

Exceptional Reliability Designed for continuous 24/7 operation, the HX-24G features AG Neovo's Anti-Burn-in™ technology, which eliminates the risk of residual images, ensuring stable performance even in critical environments. Its rugged metal casing and NeoV™ optical glass provide enhanced protection against damage while simplifying maintenance tasks.

Technical specifications

Display

- 23,8" display FHD
- Pixel Pitch: 0.274 mm
- Native Contrast: 20,000,000:1 (DCR)
- Viewing Angle (Left/Right/Up/Down): 170°/160°
- Color Display: 16.7M

Frequency

- Horizontal Frequency (H): 24 kHz - 83 kHz
- Vertical Frequency (V): 50 Hz - 75 Hz

Inputs

Outputs

- SDI on BNC x 1

Audio

- Audio In: Stereo Audio Jack (3.5 mm) + RCA Stereo
- Internal Speakers: 2W x 2

Power Supply

- External power supply, provided 12VDC
- Consumption : 2.75A
- On Mode: 18W (On)
- Standby Mode: < 0.5W
- Off Mode: < 0.3W

Front Glass

Operating Conditions

- Temperature: 0°C - 40°C (32°F - 104°F)
- Humidity: 10% - 90% (non-condensing)

Storage Conditions

- Temperature: -20°C - 60°C (-4°F - 140°F)
- Humidity: 5% - 95% (non-condensing)

VESA Wall Mount

- VESA FPMPMI: YES (100 x 100 mm and 75 mm x 75 mm)

Dimensions

- Product with base (W x H x D): 562.4 x 392.8 x 196.0 mm (22.1" x 15.4" x 7.7")
- Product without base (W x H x D): 562.4 x 352.6 x 56.2 mm (22.1" x 13.9" x 2.2")

Weight

- Product with base: 8.1kg (17.9lb)

- Product without base: 7.3 kg (16.1lb)

Accessories Included

- Audio Cable, Power Cable, Manual, VGA Cable, Power adaptor

Optional Accessories

- Ceiling Mount (Landscape only) CMP-01 + WMK-03
- Wall Mount (Landscape only): PMK-01, WMA-01, WMK-01, WMK-03
- Desk Mount (Landscape only): DMC-01, ES-02
