LDC monitor drawer FLIP DOWN
New product

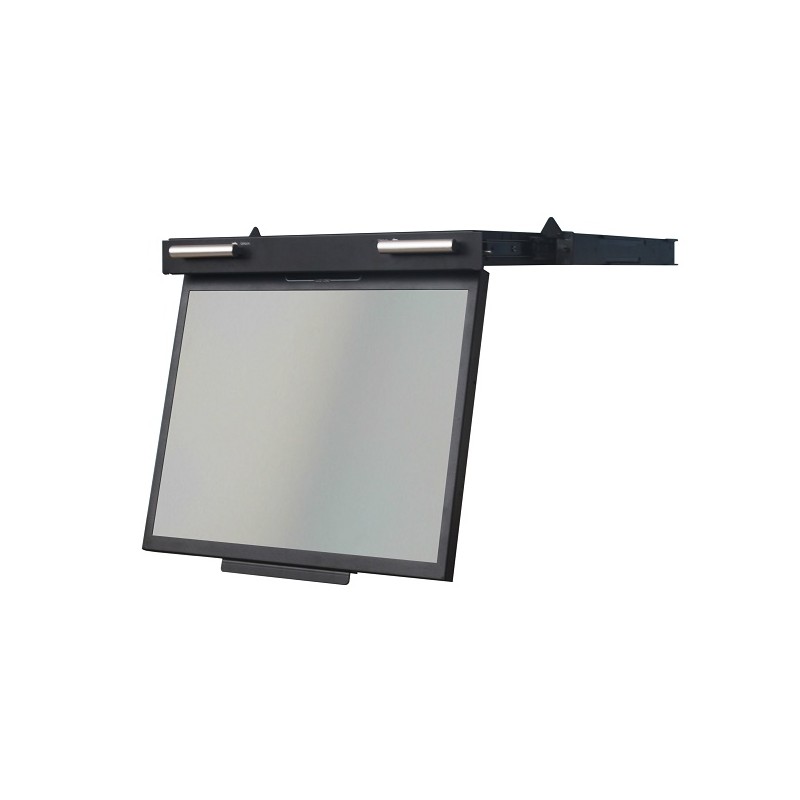

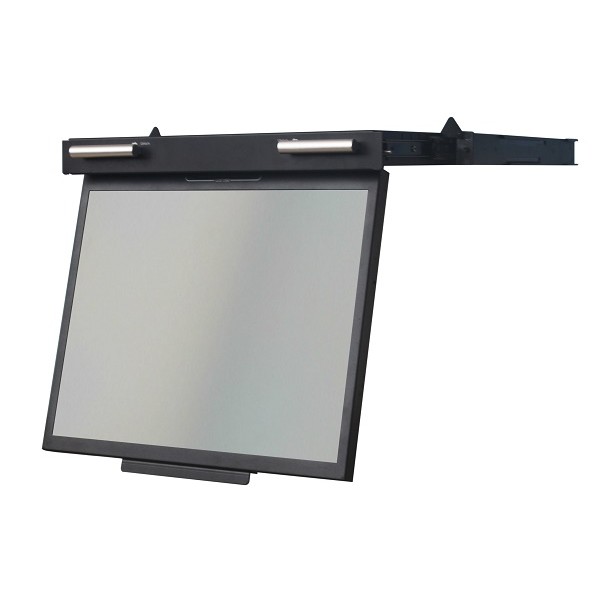

19" Sliding Drawer Deployable Screen, Flip-Down |
| |
Low-profile drawer monitor, folds upwards like a sun visor.
| ||
Maximized Server Rack Integration
Designed to minimize footprint in 19" server racks, the RACK1U19FD monitor fits perfectly into spaces of just 1U.
Its heavy-duty ball-bearing slide rail mechanism ensures smooth sliding and secure locking when deployed.
With a single motion, the screen is deployed and ready for use. This flip-up version—opening upwards like a sun visor—streamlines operations.
It frees up valuable volume inside your network cabinets.
Foldable Monitors Tailored for Industry and Mobile Systems
Industrial-grade construction built to last. Thanks to its rugged design, it is suitable for high-vibration environments, tested at 5-500Hz at 1 Grms PTP, and resistant to equipment shocks up to 15G.
Particularly targeted at mobile and transportable vehicle racks, our foldable monitors also integrate seamlessly into BRC reinforced racks.
The mechanics of this screen have been thoroughly engineered and field-tested to ensure reliable, long-term frequent use.
Key Benefits
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | RACK1U-19FD |
| Panel Size | 19" |
| Resolution | 1280*1024 |
| Contrast Ratio | 1000 : 1 |
| Brightness | 350 cd/m² |
| Viewing Angles | 170/160 |
| Color Count | 16.7M |
| Audio | 3.5mm Jack |
| DVI-D | DVI-D 24-Pin Female Connector |
| VGA | D-SUB 15-Pin Female Connector |
| USB Touchscreen (Optional) | USB Type-A Connector |
| Weight | 17.5 kg |
| Dimensions | 448 x 44 x 508 mm |
| Power Supply | Standard 230VAC - Optional 9~36VDC |
| Video Input Options | HDMI, DP, 3G-SDI, HD-SDI, SD-SDI, or Composite CVBS PAL/NTSC (BNC) |
| Panel Protection Option | Reinforced Tempered Glass |
| Operating Temperature | 0°C to +50°C |
| Shock Resistance | 15G / Peak (11ms) |
| Vibration Resistance | 5-500Hz 1 Grms PTP |
| Display size | 19" |
| Resolution | 1280x1024 |
| Material | Steel |
| Ingress Protection | IP44 |
| Touch screen | Optional |
| Video input | SDI |
| Video input | DVI |
| Video input | Display Port |
| Video input | BNC CVBS |
| Video input | VGA |
| Video input | HDMI |
| Mounting | Fold to ceiling |
| Brightness | 350nits |
| Available options | Protection glass |
| Available options | Touch Screen |
| Power Supply | 9-36VDC |
| Power Supply | 110-230VAC |
