AL301W - High-Power White LED Outdoor Professional Spotlight

New product

Quotation

Long-Range Visible Outdoor Spotlight

For video surveillance with color vision and deterrent effect for sensitive sites, outdoor and perimeter surveillance, and enhanced visibility on industrial sites

More details

Description

The AL-301W white lighting spotlights come in different models offering various beam angles and ranges to suit each situation.

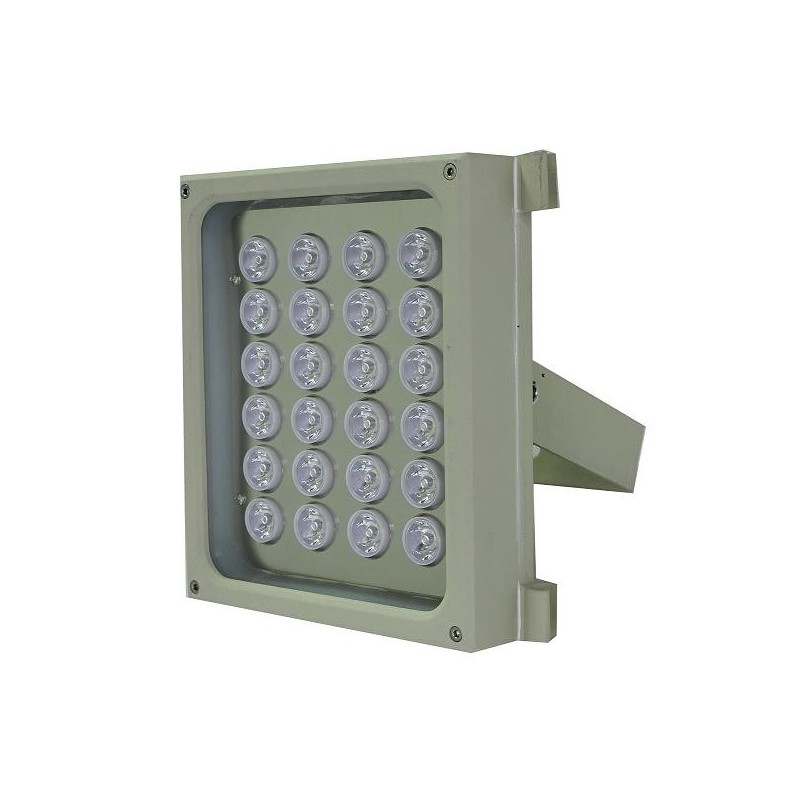

The AL-301W consists of a spotlight equipped with 24 high-power 2W LEDs, with multiple beam angles available to illuminate only the necessary area, maximizing the power of the device without lighting undesired zones.

Our spotlights are of industrial quality to meet the professional requirements.

Increased Lifespan: Built to last, the AL-301W is a tool of extreme reliability.

Easy Installation: The U-mount bracket allows for quick and simple installation.

With or Without Light Sensor: The spotlight automatically activates when ambient light decreases. Without the sensor, it operates as soon as it is powered on.

Matrix White LEDs: Create a powerful, diffuse, and uniform light of 5500-6000K.

Robust Aluminum Housing: Optimal heat dissipation with the fins at the back of the unit.

Technical Specifications

  • Model: AL-301W
  • LED Type: 24 white matrix LEDs 5500-6000K, 2W
  • Beam Angles by Model:
    AL301W-15: 15° angle / Max Range*: 260m
    AL301W-30: 30° angle / Max Range*: 220m
    AL301W-45: 45° angle / Max Range*: 170m
    AL301W-60: 60° angle / Max Range*: 140m
    AL301W-90: 90° angle / Max Range*: 80m
    AL301W-120: 120° angle / Max Range*: 65m
    *Range indicated for a surveillance camera, depending on light sensitivity
  • Dialux files available upon request
  • Voltage: AC85-265V / DC12V / AC24V
  • Power Consumption: 54W
  • Day/Night Management: Automatic or manual (please specify at order)
  • Mounting: U-shaped bracket
  • Operating Temperature: -40℃ to 50℃
  • Protection Rating: IP66
  • Housing: Aluminum, black-painted
  • Front Glass: High-transparency tempered glass
  • Weight: 3.3 kg
  • Dimensions: 206 × 208 × 117 mm
