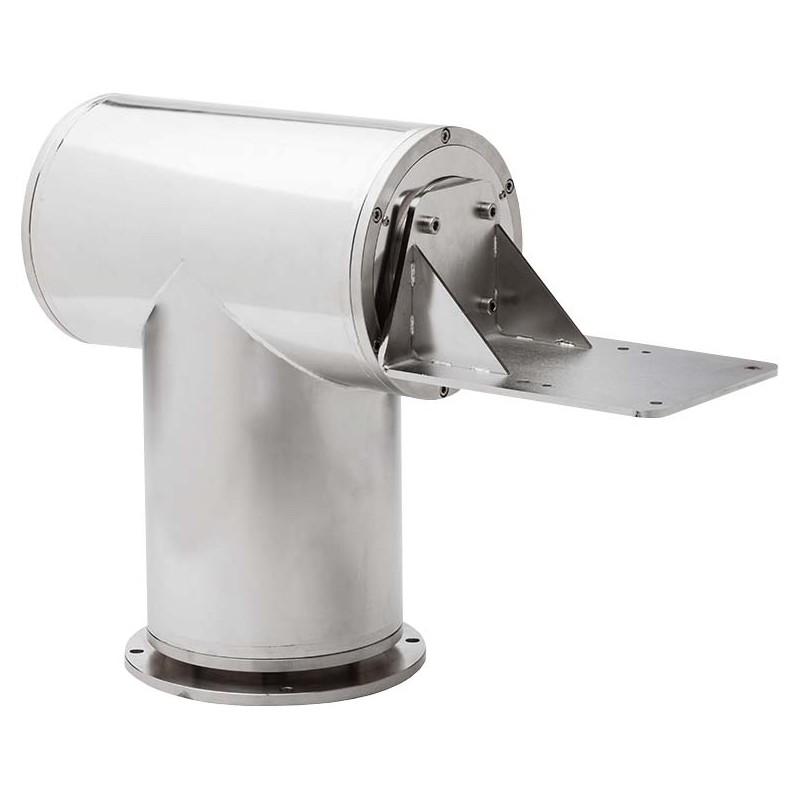

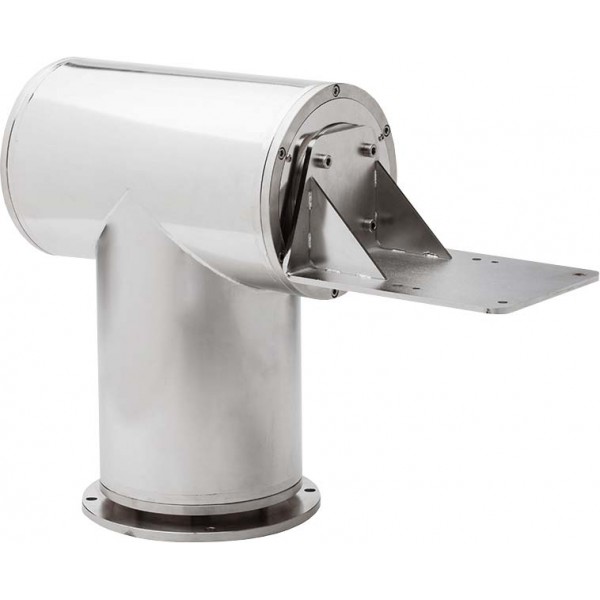

250PTE - Motorized turret AISI316L

Description

The 250PTE is a robust 2-axis motorized turret made of stainless steel AISI316L, designed for demanding industrial applications requiring precise movements and resistance to harsh environments.

Applications

The 250PTE is ideal for:

• Harsh industrial environments: Refineries, power plants, and other facilities where durability is crucial.
• Mining zones: Designed for extreme heat, omnipresent dust, and potential solid material projections onto the equipment.
• Maritime and offshore: Adapted to saline conditions and demanding marine environments.
• Perimeter surveillance: Securing critical infrastructures requiring reliable monitoring.

Advantages

• Durable Construction: The use of AISI316L stainless steel ensures long-lasting performance even in corrosive environments.
• Flexibility: Compatible with third-party camera housings, allowing the integration of various surveillance solutions.
• Precision and Reliability: Smooth and accurate movements thanks to advanced mechanical design.

Technical Specifications

• Material: Electropolished stainless steel AISI316L, offering exceptional corrosion resistance.
• Load Capacity: Up to 50 kg, compatible with third-party camera housings.
• Movements:
  • Pan: Continuous 360° rotation with variable speed from 0 to 10°/s and 80 Nm torque (limited by a safety device).
  • Tilt: 180° (+/-90°) angle with variable speed from 0 to 4°/s and 80 Nm torque (limited by a safety device).
• Precision: Mechanical backlash below 0.1° and preset positioning accuracy of 0.01°.
• Power Supply: Available in 24VAC and 230VAC (+/-10%) versions.
• Maximum Power Consumption: 120W.
• Protection Rating: IP66/IP67 compliant with EN 60529, ensuring protection against dust and water.
• Operating Temperature: From -40°C to +60°C, with peaks up to +75°C.
• Weight: 47 kg (net weight); 50 kg (gross weight).
• Control: RS485 Pelco-D with position feedback.
