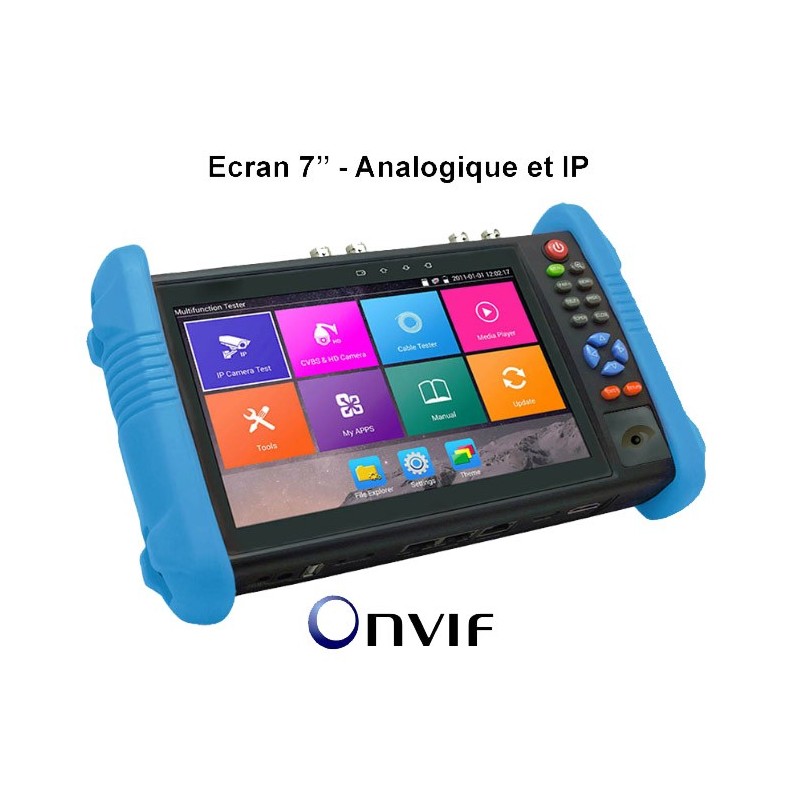

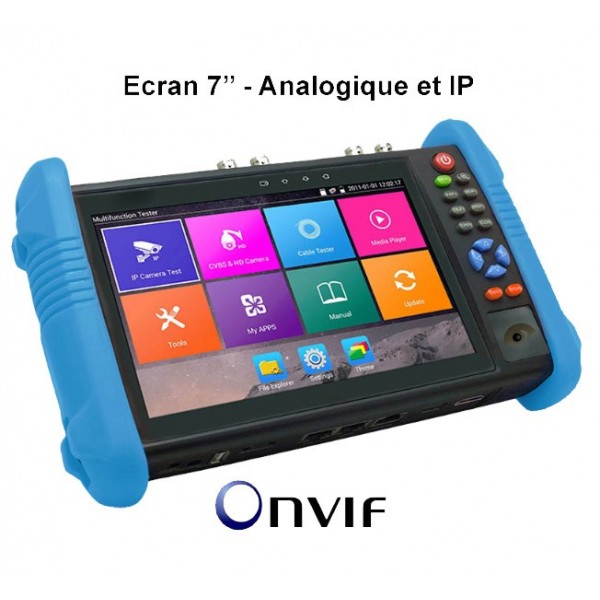

7HD-IPTEST - IP, Analog, AHD/CVI/TVI, SDI Camera Tester

Description

The 7HD-IPTESTA is a versatile IP camera tester featuring a 7-inch IPS touchscreen with a resolution of 1920x1200. It supports IP cameras up to 4K and is compatible with Onvif, H.264, and H.265 protocols. This model also offers 24W PoE power for IP cameras and a 12V 2A DC output.

This CCTV IP and analog camera tester is multifunctional.
It features a smartphone-style touchscreen interface, providing a highly intuitive and easy-to-use tool.
Specifically designed for field use.

Technical Specifications

• Display: 7-inch IPS touchscreen, 1920x1200 resolution

• IP Camera Compatibility: 4K, H.264, H.265, Onvif, Onvif PTZ, ACTi, Dahua, Hikvision, Samsung, Honeywell, etc.

• Network Testing: FTP server, static IP address, DHCP, bandwidth testing, IP discovery

• IP Applications: Supports video management software like Hikvision iVMS-4500, Dahua gDMSS HD Lite

• Connectivity: RJ45 10/100M port, built-in 150M Wi-Fi, Wi-Fi hotspot creation

• Power Supply: 24W PoE for IP cameras, 12V 2A DC output, 5V 2A USB output

• Video Testing: BNC input/output, CVBS loop test, color bar generator

• Additional Features: 4x zoom, image capture, video recording, built-in LED light, 8GB SD card included (expandable up to 32GB)

• Battery: 7.4V 5000mAh lithium-ion polymer, 10-hour runtime after 6-hour charge

Comparison with Other Models in the 7HD-IPTEST Series

The 7HD-IPTESTA is ideal for technicians looking for a high-performance IP camera tester with essential features. For specific needs, the other models in the series offer additional options such as an integrated multimeter or support for various analog and HD camera formats.
