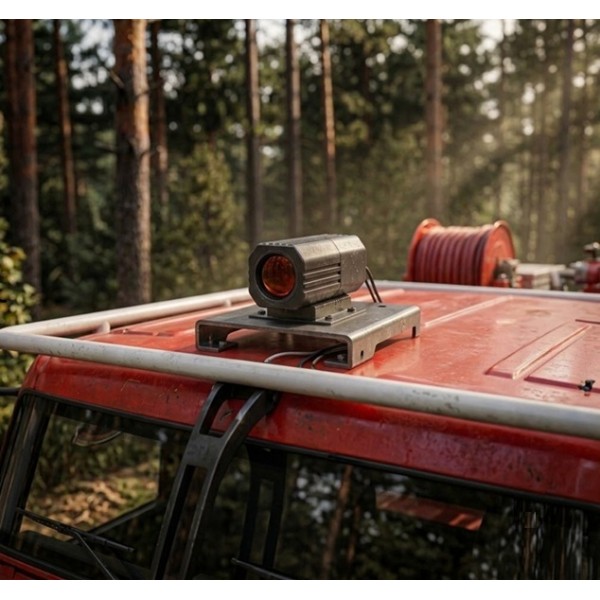

New Infrared thermal forest fire ignition detection camera for firefighters trucks

Onboard Fire Camera CAMFEU-TH Vehicles

New product

Quotation

Detecting fire outbreaks with an emergency vehicle camera

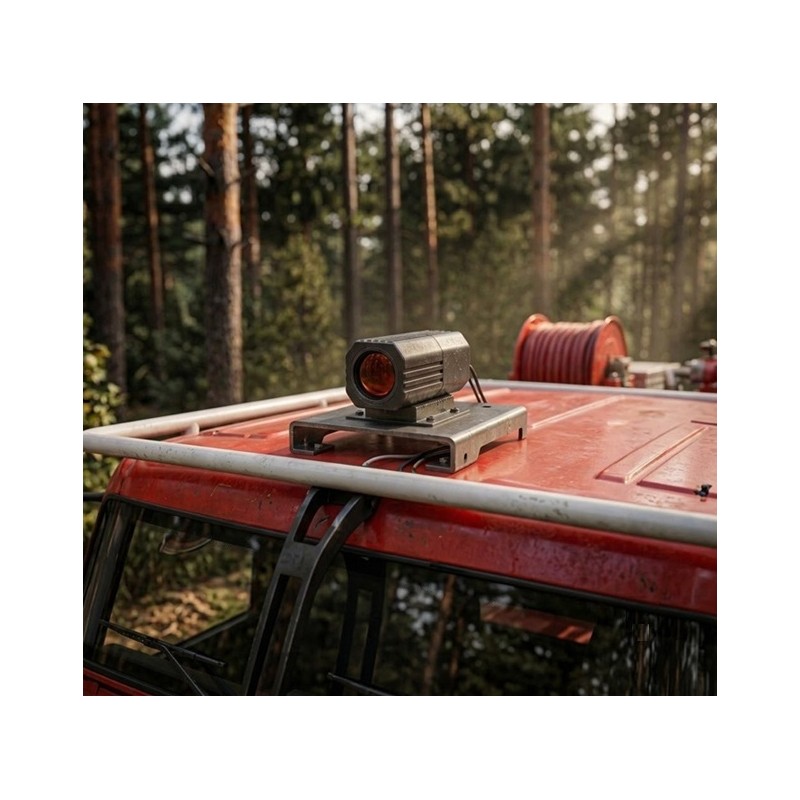

The CAMFEU-TH kit consists of an ORION-TH thermal onboard camera for a CCF type vehicle (Forest Fire Water Tender), which allows for better visibility of fire outbreaks during patrols.

Combined with the Orlaco 0208681 monitor, rescue units have a real-time view from inside their vehicle of the monitored area.

Rapid intervention solution

Safety and responsiveness: Continuous thermal surveillance to secure forest fire fighting patrols.

More details

Protecting forests and homes

Thermal imaging creates an image based on temperature contrasts, allowing the detection of wildfires and residual hot spots even through thick smoke or in total darkness.

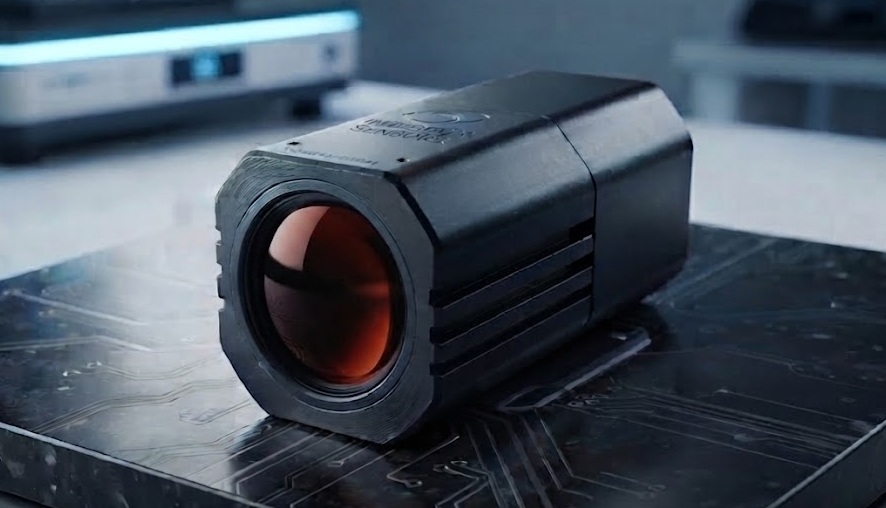

The camera

The CAMFEU-TH system features a compact and waterproof ORION-TH camera that can be installed on any type of emergency vehicle.

It is equipped with the latest FLIR sensor and delivers a NETD < 20mK for exceptional sensitivity.

Wildfire thermal camera

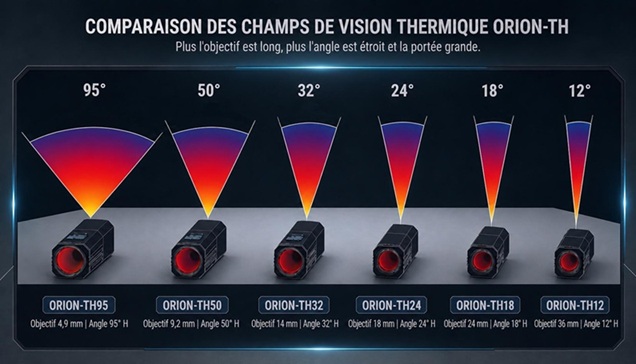

Wide choice of viewing angles

The ORION-TH camera is available in multiple field-of-view options to suit all configurations.

Field of view Orion-TH thermal camera
  • ORION-HT95: 95° horiz. - 4.9mm
  • ORION-HT50: 50° horiz. - 9.2mm
  • ORION-HT32: 32° horiz. - 14mm
  • ORION-HT24: 24° horiz. - 18mm
  • ORION-HT18: 18° horiz. - 24mm
  • ORION-HT12: 12° horiz. - 36mm

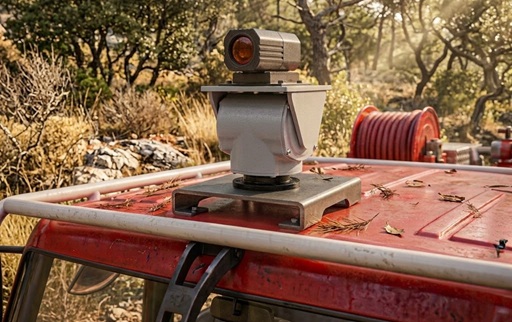

Optional motorized pan-tilt unit

To control the camera effortlessly, opt for the optional motorized pan-tilt unit, allowing you to orient the camera right from the cab. This system offers precise panning and tilting to effectively target heat sources and adjust orientation based on operational requirements.

Thermal camera on fire truck for wildfire detection

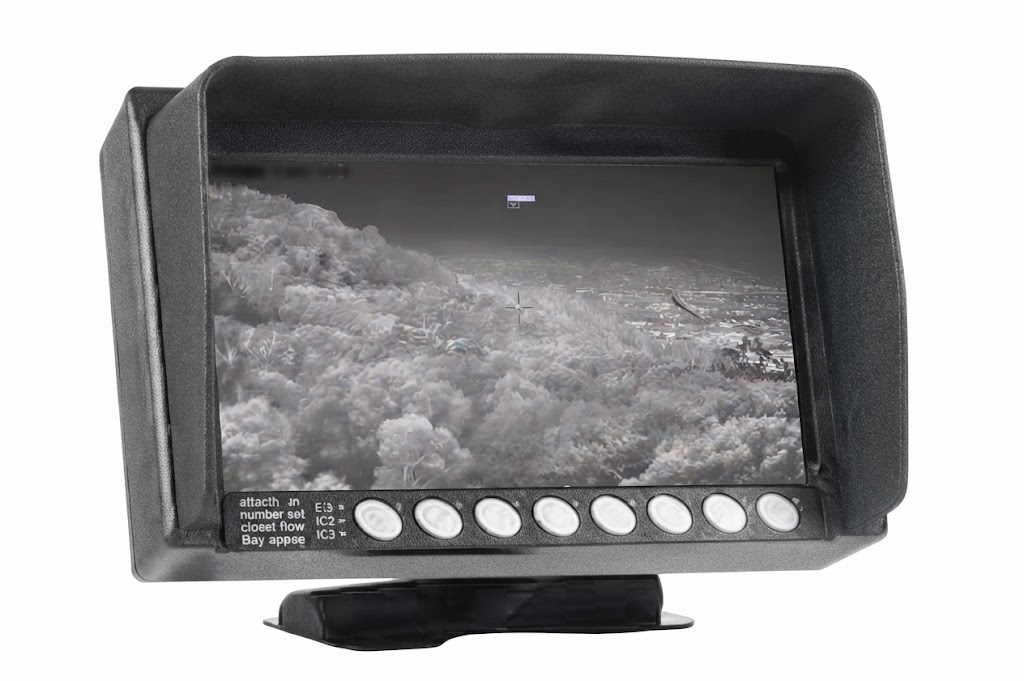

    The display

    Ruggedized and waterproof, it features auto-adaptive brightness to deliver the best possible display during both day and night operations.

    Designed for tight cab spaces, its 7" size allows for easy installation in any type of emergency vehicle.

    An optional 12" display is also available.

    Our monitors are also IP67 waterproof and can be installed outside the vehicle cab.

    		Thermal camera monitor screen

    Operates at high ambient temperatures

    The complete CAMFEU-TH camera, cable, and monitor assembly withstands operating temperatures up to 80°C ambient and functions down to -40°C.
