SCOPEVISION ECOLINE HD - Diam 6mm / 100cm
New product

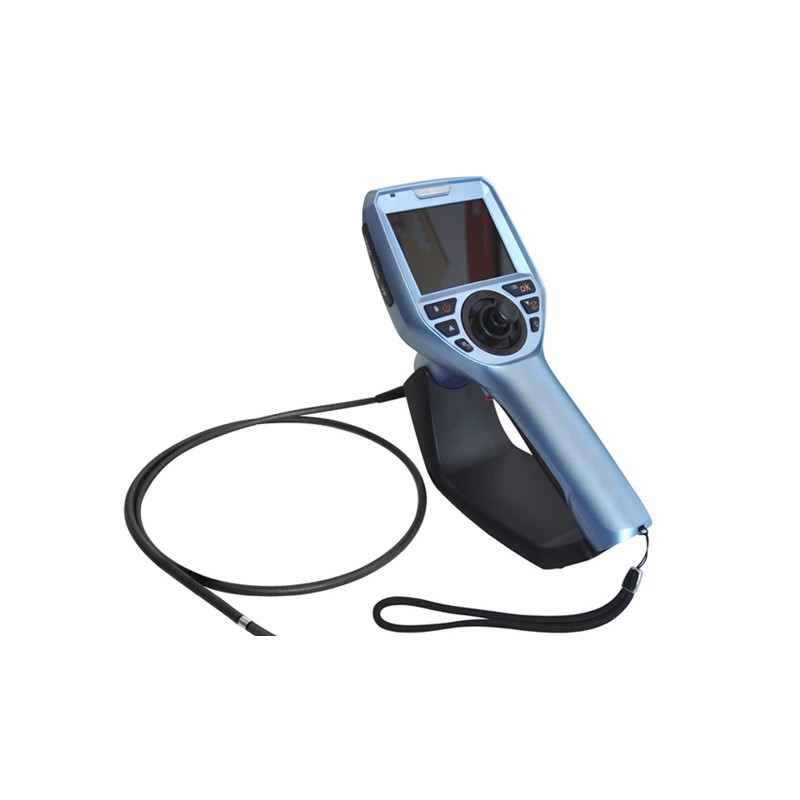

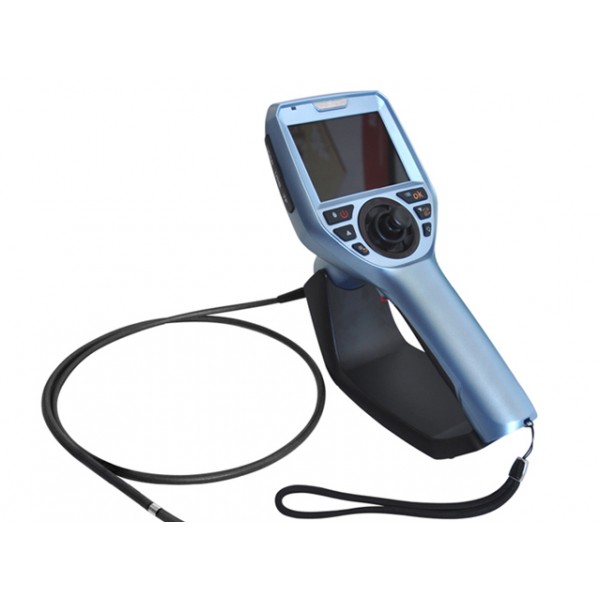

Industrial endoscope, economical range, featuring a robust construction. 6mm probe, 100cm length, articulating with a tungsten sheath.
Description
The SCOPEVISION ECOLINE HD is an industrial-grade tool with essential functions for routine inspections.
The robust tungsten probe is abrasion-resistant and IP67 waterproof. It features a scratch-resistant sapphire viewport. The articulation allows the camera to be directed in the areas to be inspected.
An optional cooled probe, resistant up to 200°C, is available for inspections without waiting for the vehicle to cool down. A version with an oil-resistant probe is also available.
Industrial HD Megapixel camera
 | The SCOPEVISION ECOLINE HD features a 3.5" high-resolution screen and an HD probe camera with 1 million pixels. It impresses with its clear and detailed image quality. Photos are stored in BMP format for maximum detail. Supports both photo and video recording. There are 7 levels of lighting adjustment. Working distance: 10-100mm. |
 | |
Articulated probe up to 180° in all directionsThe probe features a new design with precision-machined directional components, allowing it to achieve a 180° bend, which is particularly useful in automotive applications. |  |
| HDMI video outputAllows display on an external screen, ensuring better viewing comfort or sharing the inspection with other operators. |
 | High-quality probe, IP67 water and dust resistantNew double insulation structure, made with a laser welding process. Optionally, the probe can be adapted to resist oils. Upon request, a cooling system allows the probe to operate up to 200°C, eliminating the need to wait for the vehicle to cool down before performing the inspection. |
The probe is made with the highest quality, featuring a braided tungsten sheath and a titanium alloy head. It includes an ultra-high-definition camera, powerful LED lighting, and a scratch-resistant sapphire lens. This equipment is user-friendly, durable, and budget-conscious. The monitor handle is highly ergonomic, lightweight, and easy to operate with one hand. The user interface is intuitive, allowing for easy operation without the need for extensive study of the user manual. |  |
Technical Specifications
CONTROL UNIT | |
Display size | 3,5’’ HD |
Display resolution | 640*480 |
Digital zoom | x4 digital zoom during inspection and x8 during playback |
Réglage éclairage sonde | OUI, 7 Levels |
Photo / Video | Photo and video + Snapshots during recording |
Formats | Pictures : JPG/BMP – Video : MP4 |
Time Watermark | OUI |
Languages | French, English, German, Portuguese, Spanish, Russian, Chinese, Japanese, Korean |
Display backlight | 3 levels |
Video output | Micro HDMI |
Storage capacity | 8Go standard provided, up to 32Gb – TF card |
Dimensions | 240x102x126mm |
PROBE | |
Diameter | 6mm |
Length | 100cm |
Material | Tungsten braided water resistant |
Camera resolution | 1 million of pixels |
Depth of field | 10 to 100mm |
Field of view | 85° |
View direction | Forward |
Lighting mode | Led |
Rotation | 360° all directions |
Bending angle | 0 to 180° |
Guided Control Method | Mechanical control |
Probe ingress protection | IP67 |
POWER SUPPLY | |
Battery | Rechargeable Lithium, reverse polarity protected |
Capacity | 3.7V 3200mAh |
Working time | 4h |
OPERATION ENVIRONMENT | |
Control unit working temperature | -10 to +50°C |
Probe working temperature | -20 to +60°C |
Storage temperature | -20 to +60°C |
Relative humidity | 15-90% |
OPTIONS | |
Options | micro-HDMI cable, probe cooling system, magnetic base |
1 other product in the same category
ALLWAN SECURITY

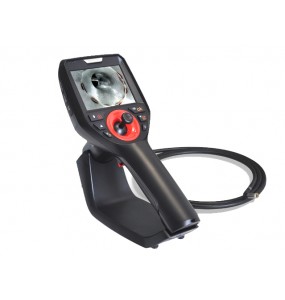

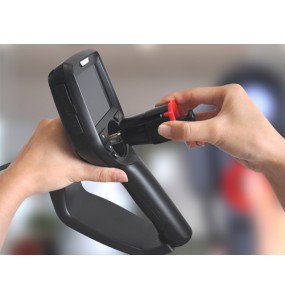

SCOPEVISION RPROBE- Replaceable probe
