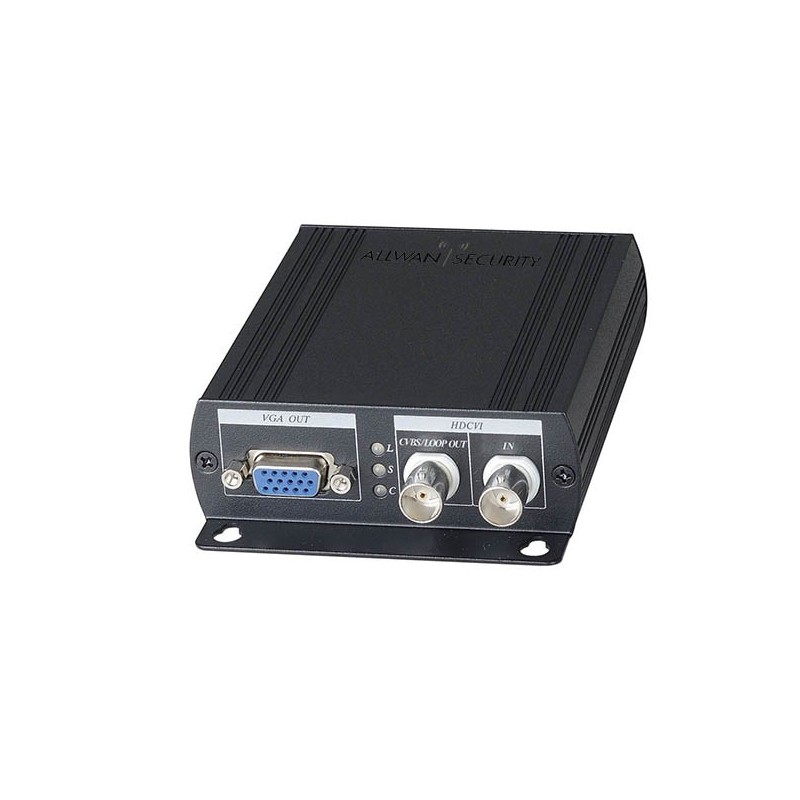

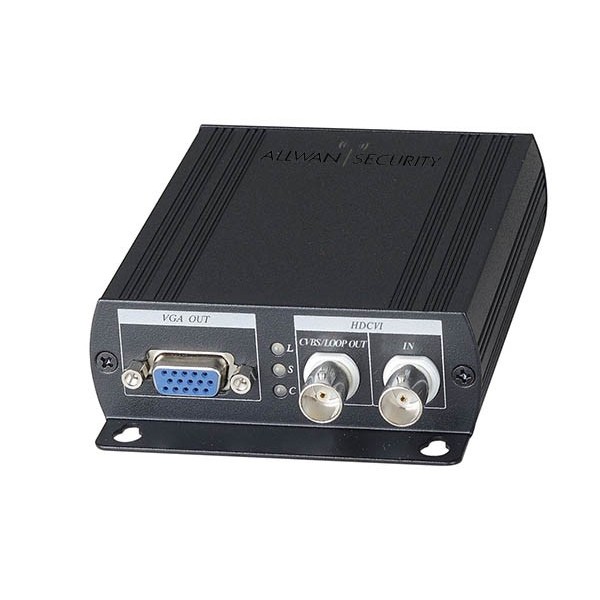

MULTICONV-HD - Convertisseur multi signaux vidéo vers HDMI et VGA

Description

For many video surveillance installations, it is often necessary to convert a video signal to ensure compatibility with existing equipment.

With the MULTICONV-HD, you can input any video signal type such as HD-TVI, AHD, HD-CVI, or even analog PAL. On the output side, HDMI, VGA, and analog outputs are available.

An added advantage is that the device supports Picture-in-Picture (PIP) functionality, where the position and size of the inset video window are configurable.

This small, cost-effective accessory provides great flexibility without requiring a complete overhaul of an existing surveillance system.

The device comes with a 12VDC power supply and includes mounting brackets for professional installation.

Technical Specifications

• Video Inputs: 2 BNC 75Ω (1 configurable as an output)

• Supported Formats: HD-TVI / AHD / HDCVI up to 1080p, PAL, NTSC, 960H

• Video Outputs: HDMI Type A, VGA D-SUB15, BNC (CVBS)

• Output Resolutions: 480p, 576p, 720p50/60, 1080i50/60, 1080p50/60

• Power Supply: 12 VDC, 500 mA (power adapter included)

• Power Consumption: 4.2 W max

• Dimensions: 130 × 88 × 30 mm

• Weight: 275 g

• Enclosure: Black aluminum

• Operating Temperature: 0°C to 55°C

• Storage Temperature: -20°C to 85°C

• Humidity: 0 to 95% non-condensing

Advanced Features

• Looping Mode: Allows duplicating the input signal on a BNC output

• PIP Mode (Picture-In-Picture): Displays an inset image

• Configuration: Via 4 DIP switches and 2 touch buttons on the front panel

• LED Indicators: Power, signal reception, and active outputs

• Compatibility: Supports analog video signals up to 1080p

• Reset Function: Allows restoring factory default settings

DIP Switch Configuration

• DIP 1: Selects BNC2 mode (Looping or CVBS)

• DIP 2: Enables BNC2 as an input or output

• DIP 3: Enables PIP mode (requires DIP 2 enabled)

• DIP 4: Selects the size of the inset image in PIP mode
