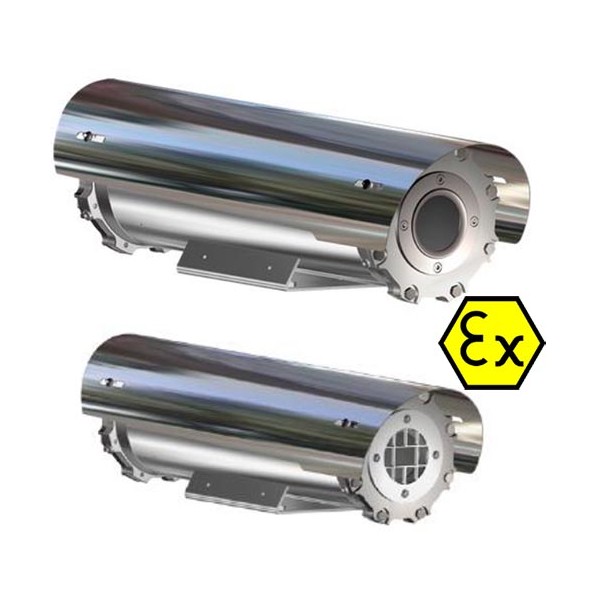

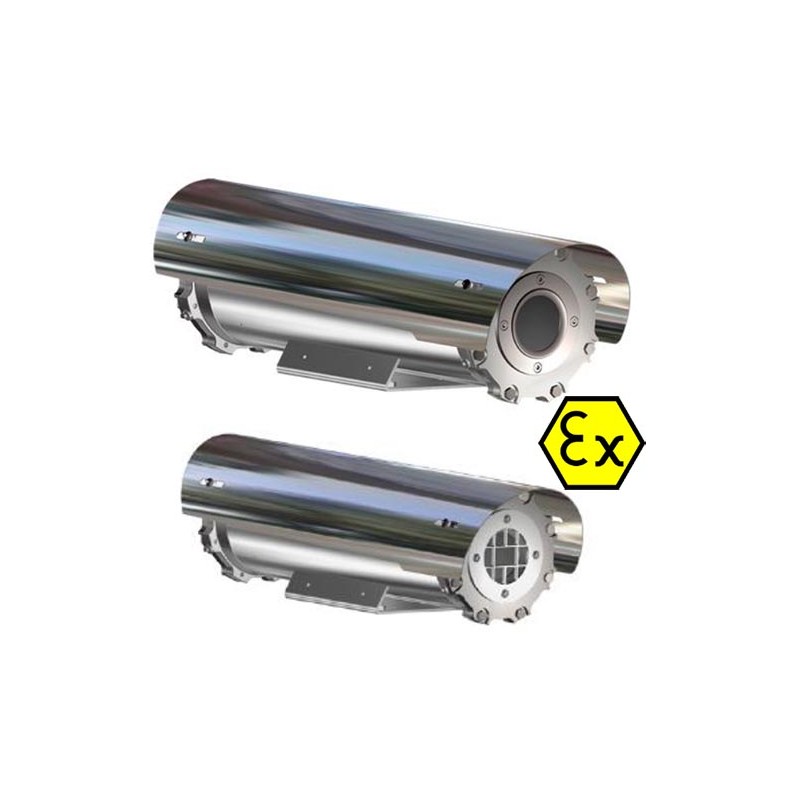

130EX - Atex IIC and H2 Ready Stainless Steel Enclosure - Standard/Thermal Camera

Description

The 130EX is an ATEX camera enclosure, certified ATEX, IECEX, UKCA, INMETRO, and CLASS-DIV, specifically designed for applications in hazardous areas.

This ATEX enclosure is made of electro-polished AISI316L stainless steel, ensuring increased resistance to corrosive and extreme environments.

It is particularly suitable for sectors such as oil and gas exploration/extraction, refineries, and installations both onshore and offshore.

Thanks to its robust design and security certifications, the 130EX provides a reliable video surveillance solution in potentially explosive environments.

Applications

The 130EX is ideal for applications in environments with explosion risks or extreme weather conditions, including:

• Oil and gas exploration and extraction.

• Refineries and chemical industries.

• Monitoring of Seveso sites.

• Offshore and onshore installations in severe environments.

Advantages

• Maximum Safety: With its stringent certifications, the 130EX offers optimal protection against explosion risks.

• Advanced Technology: Designed to be compatible with the latest video surveillance technologies, including high-definition IP cameras.

• Durability: Made to withstand the most demanding environments due to its stainless steel construction and extensive certifications.

• Flexibility: Customization options available to meet the specific needs of each installation.

Technical Specifications

Certifications

• Ingress Protection: EN 60529 (IP66/IP67/IP68/IP69), NEMA 4X
• Rating: II 2 G Ex db IIC T6/5/4 Gb -60°C ≤ Tamb ≤ +60/75/80°C
  II 2 D Ex tb IIIC T85/100/135°C Db -60°C ≤ Tamb ≤ +60/75/80°C
• Vibrations and Shock: EN/IEC 60068-2-6; EN/IEC 60068-2-27; DNV-CG-0339
• ATEX/UKCA Standards: EN 60079-0; EN 60079-1; EN 60079-31
• IECEX Standards: IEC 60079-0; IEC 60079-1; IEC 60079-31
• EMC: EN 55035; EN/IEC 61000-6-4; EN/IEC 61000-3-2; EN/IEC 61000-3-3; EN/IEC 61000-6-2; CISPR-32; CISPR-35; DNV-CG-0339
• LVD: EN/IEC 62368-1
• FCC: FCC part 15B
• RoHS: 2011/65/EU + 2015/863/EU (RoHS 3)
• WEEE: 2012/19/EU
• INMETRO: ABNT NBR IEC 60079-0; ABNT NBR IEC 60079-1; ABNT NBR IEC 60079-31

Construction

• Material: Electro-polished AISI 316L stainless steel
• Corrosion: High resistance to corrosion

Temperature Range

• Operating Temperature: -60°C to +60°C

Protection

• Protection Class: IP66, IP67, IP68, IP69
• NEMA Standard: NEMA 4X

Additional Features

• Window: Optional with wiper
• Integrated Heating/Demisting System
• Sunshield: Included
• H2-READY: Prepared for use in hydrogen-risk environments

Connectivity and Power Supply

• Built-in Optical Media Converter (optional)
• Built-in IP over Coaxial Converter (optional)
• Power Supply: 120VAC or 230VAC (optional)
