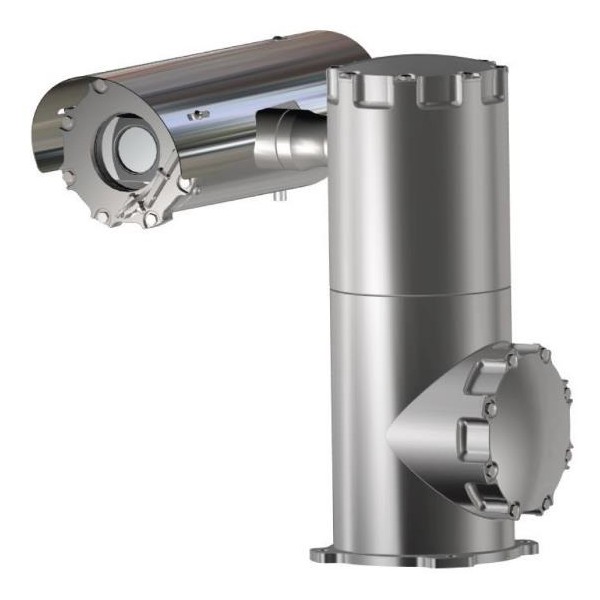

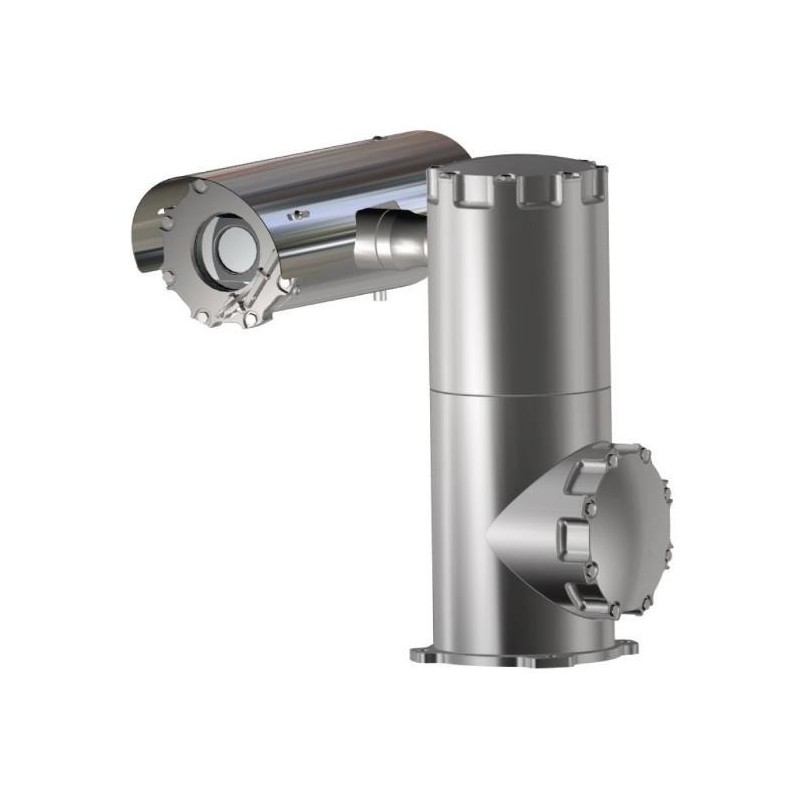

260PTEx ATEX Pan & Tilt Head with Integrated Camera Enclosure

Description

Monitor extreme environments with unmatched precision

Discover the 260PTEx series, a range of motorized stainless steel AISI 316L pan & tilt camera enclosures, specially designed to house standard, thermal, analog, or IP cameras in explosive atmospheres or corrosive and marine industrial environments.

ATEX and IECEx certified for hazardous zones

The 260PTEx housing is ATEX (II 2 G/D Ex) and IECEx certified, providing maximum safety in explosive atmospheres, ideal for petrochemical, offshore, chemical plants, and port facilities.

100% AISI 316L stainless steel – Built for extreme durability

• Material: Electropolished 316L stainless steel for optimal resistance to corrosion (salt, acids, chemicals)

• Protection rating: IP66, IP67, IP68, and IP69 – full protection against water, dust, powerful jets, and immersion

• Operating temperature: -60°C to +60°C

A customizable turret to fit your video architecture

Install your own camera (coaxial, IP, thermal, fiber optic) thanks to a spacious internal compartment (80 x 80 x 180 mm). Wide compatibility and full modularity to adapt to any on-site configuration.

Available options

• Single-mode fiber optic converter (up to 20 km)

• IP over coax

• Integrated cleaning tank and pump (ATEX rated)

• All-in-one cable set with dual cable gland (2 x M25)

Smooth and precise motorization

• Horizontal rotation: 360° endless – 0 to 40°/second

• Vertical tilt: ±90° – 0 to 20°/second

• Repositioning accuracy: 0.04°

• Control protocol: RS485 (Pelco-D)

Typical applications

• ATEX zones for gas and dust

• Refineries and oil installations

• Chemical plants and offshore platforms

• Ports and salt-exposed marine sites

• Silos, concrete plants, industrial hangars

Why choose the 260PTEx turret?

• Proven reliability in extreme conditions

• Certified safety for explosive atmospheres

• Compatible with IP, coaxial, and thermal cameras

• Rugged and durable design – 100% stainless steel

• European manufacturing – Dedicated technical support

Technical Specifications

Structure & Materials

• Material: AISI 316L stainless steel

• Finish: Electropolished (bright)

• Weight: 30.5 kg

• Mounting: 4 holes Ø11 mm on PCD 195 mm

Mechanics & Motion

• Horizontal rotation: 360° endless (speed: 0–40°/s)

• Vertical tilt: ±90° (speed: 0–20°/s)

• Torque: 20 Nm

• Backlash: < 0.1°

• Repositioning accuracy: 0.04°

• Electronic rotation limits: Adjustable

Camera Compatibility

• Compatible camera types: Standard, thermal, analog, IP, fiber optic

• Internal space: 80 x 80 x 180 mm

Environmental Protection

• Ingress protection: IP66 / IP67 / IP68 / IP69

• Operating temperature: -60°C to +60°C

• Wiper: Yes (integrated)

• Cable entry: 1 x M25x1.5

Power & Consumption

• Heater power supply: 110 VAC, 230 VAC, or 24 VAC

• Power consumption:

  • Min: 10 W (standby)

  • Max: 130 W (motors and heaters active)

Interface & Control

• Control protocol: RS485 (Pelco-D)

Certifications & Compliance

• ATEX Certification:

  • II 2 G Ex db IIC T6/T5/T4 Gb – Ambient temp: -60°C to +60/+75/+80°C

  • II 2 D Ex tb IIIC T85/100/135°C Db – Ambient temp: -60°C to +60/+75/+80°C

• Protection standards: EN 60529, NEMA 4X

• Vibration/Shock resistance: EN/IEC 60068-2-6; EN/IEC 60068-2-27; DNV-CG-0339

• EMC compliance: EN 55035, EN/IEC 61000-6-4, etc.

• Low voltage directive (LVD): EN/IEC 62368-1

• Environmental compliance: RoHS 3 (2015/863/EU), WEEE (2012/19/EU)

Available Options

• Single-mode fiber optic converter 2xSC (20 km, 1310 nm)

• IP over coax transmission

• Integrated cleaning tank and pump

• Pre-assembled cable with double cable gland (2 x M25)

Accessories

• Wall mount bracket in 316L stainless steel (ref. 260KB)
