IceGuard - Caméra pour chambre froide
New product

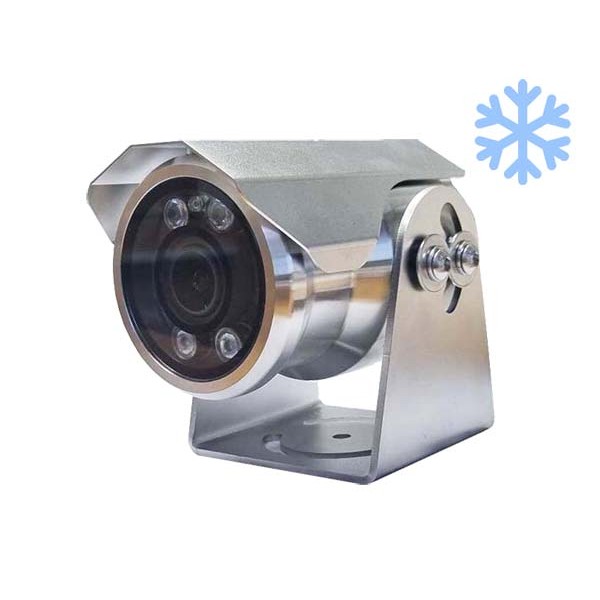

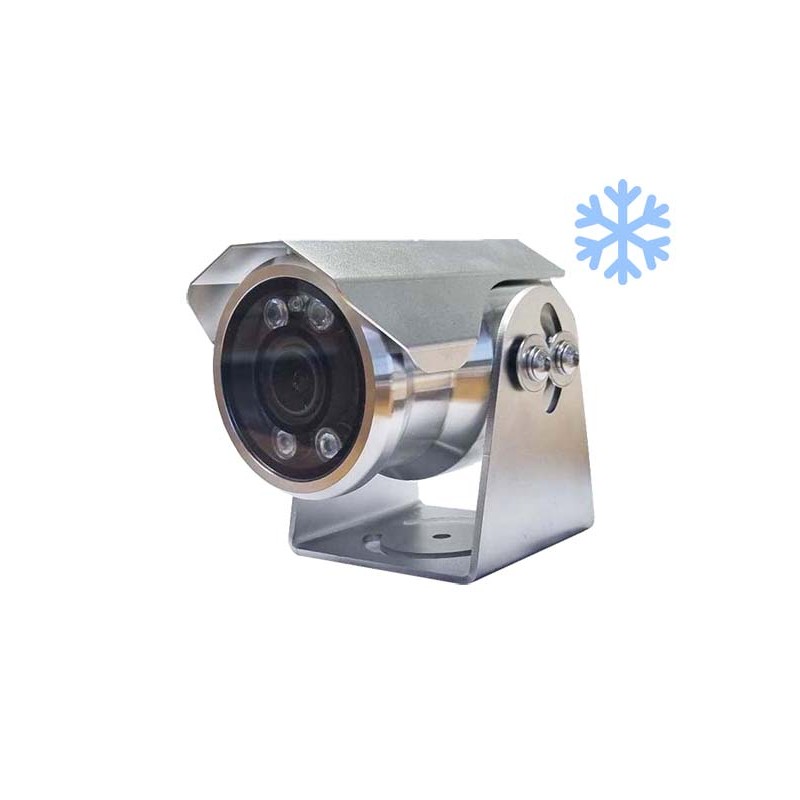

ColdStore Low-Temperature Surveillance Camera
Specialized industrial cold room camera equipped with an internal anti-fog and anti-frost prevention system, ensuring constant visibility even under extreme humidity and freezing conditions typical of cold storage warehouses
IceGuard: Surveillance Cameras for Cold Storage Environments
The IceGuard20 (2Mp) and IceGuard80 (8Mp – 4K) cameras are specially designed for cold storage warehouses, industrial cold rooms, and other low-temperature environments. Thanks to their robust construction in 316L stainless steel, they withstand extreme conditions of cold, humidity, and intensive cleaning with decontamination products.
Technical Specifications
Material: AISI 316L stainless steel, anti-corrosion
Operating temperature: Down to -40°C
Sealing: Certified IP66/IP67, shock and vibration resistant
Motorized varifocal lens: Remote adjustment without physical intervention inside the cold room
Night vision: Infrared illumination up to 30 meters
Fog and frost prevention: Internal system ensuring constant visibility
Power supply: PoE 802.3af, 12W consumption
Dimensions: 109 × 132.5 × 124 mm — Weight: 2.5 kg
Video Performance
| Model | Sensor | Max Resolution | Lens | Horizontal Field of View |
|---|---|---|---|---|
| IceGuard20 | 2Mp SONY Exmor CMOS DAY/NIGHT | 1920×1080 | 2.7–12mm MVF | 108.8° ~ 32.3° |
| IceGuard80 | 8Mp SONY Exmor CMOS DAY/NIGHT | 3840×2160 (4K) | 3.2–10.5mm MVF | 108.1° ~ 30.3° |
Image processing: DOL HDR, DNC, BLC, HLC, white balance, exposure, mirror, flip, privacy mask, LDC, OSD
Smart analysis: Tamper protection, motion detection
Compression: H.265, H.264, MJPEG — simultaneous triple streaming
Connectivity & Security
RJ45 waterproof connector (IP67)
Network protocols: TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, RTP, RTSP, DHCP, Zeroconf...
API: Open API, ONVIF profiles S and T
Security: Multi-level user authority, IP filtering, HTTP
Recommended Applications
Agri-food cold storage warehouses
Cold rooms for pharmaceutical products
Temperature-controlled storage areas
Industrial sites subject to frequent cleaning and decontamination
NDAA certified, IceGuard cameras ensure data confidentiality and reliable surveillance in the most demanding environments
