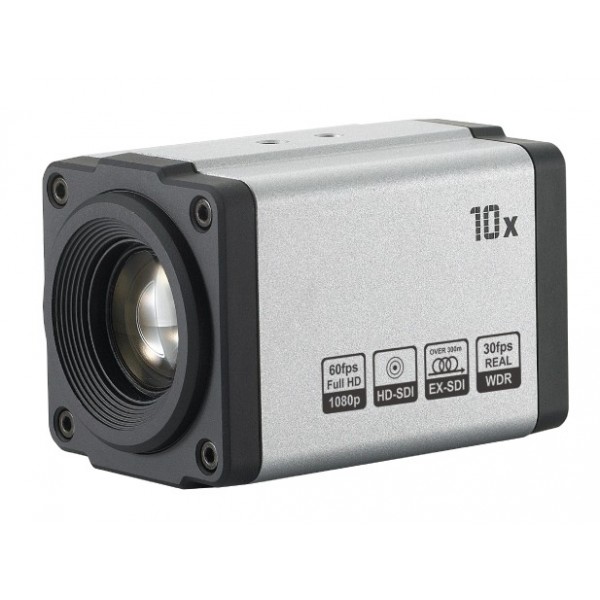

Box Camera MB-108 HD-SDI AF 2MP x10
New product
Panasonic 1/3 "2MP CMOS Sensor Camera HD-SDI, EX-SDI, TVI, CVBS. Optical zoom x10 (5.1 ~ 51mm), digital zoom x32, digital slow shutter, digital image stabilization. High light compensation. Defog function. Motion detection, protocol (VISCA, Pelco-D, Pelco-P).
Characteristics
OSD menu
Day & Night Auto / Day / Night / Ext-int
WDR / BLC disabled / WDR / BLC / HLC
ACE Off / Low / Medium / High
DNR Auto / Off / Low / Medium / High
Fog Off / On (Auto / Manual)
Off / OnD Image Stabilization
Off / On motion detection (3 positions)
Privacy mask Off / On (24 positions)
Slow digital shutter OFF / x2 / x4
Off / On gain control
Auto White Balance / One Push / Manual / Indoor / Outdoor
Shutter speed 1/30 (25) ~ 1 / 30,000 sec
E.Zoom Off / x2 ~ x32
Image Reversal off / H / V / H & V
Camera
Panasonic CMOS Sensor 1/3 "Image Sensor
Total number of pixels 1956 (H) x 1266 (V) = 2.48 M pixels
Active pixels 1944 (H) x 1092 (V) = 2.12 M pixels
Video format 1080p @ 60 / 50fps, 1080p @ 30 / 25fps, 720p @ 60 / 50fps, 720p @ 30 / 25fps
Minimum lighting
Color 0.5 lux / DSS 0.125 lux
BW 0.1lux / DSS 0.025 lux
S / N ratio greater than 50 dB (AGC disabled)
HD-SDI, EX-SDI, TVI, CVBS video output
Lens
Lens type Zoom lens day and night x10
Optical zoom ratio x10, digital zoom x32
Focal distance f = 5.1mm ~ 51mm
Opening ratio F1.6 (wide) ~ F1.8 (TV)
Angle of view (D, H, V)
LARGE 68 ° 54 ° 31 °
TV 6.7 ° 4.9 ° 4.0 °
General
DC12V power supply ± 10%
Max consumption 500mA
Operating temperature -10 ° C ~ + 50 ° C / 0% ~ 90% RH
Dimensions 59 (L) x 62 (H) x 100 (D) mm
Weight 0.36 Kg
