Camera KTNC carrée sur IP 2 et 5Mp

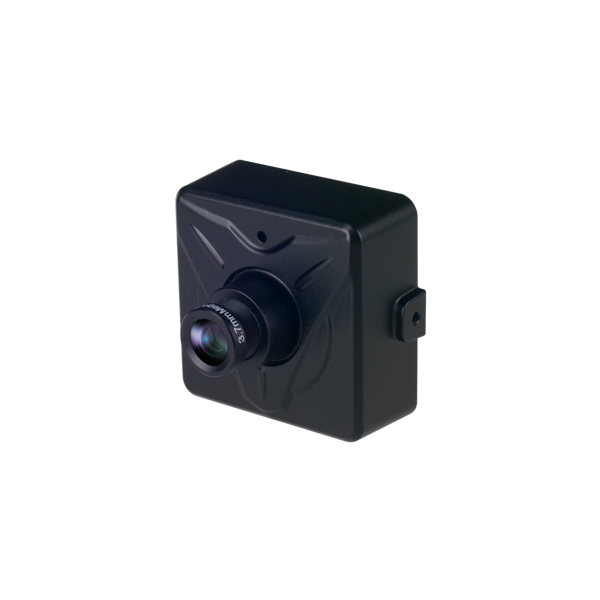

Compact square IP network cameras measuring only 47.5x47.5mm, offering a resolution of 2MP for the KNC-HMSS347-iB and 5.14MP for the KNC-FMST947-iB.

Equipped with a standard 3.6mm lens with M12x0.5 mount, they provide a comfortable horizontal viewing angle of 94° by 49.8° vertical, resulting in a diagonal angle of 117.1°.

They integrate advanced image processing functions such as white balance adjustment, automatic gain control (AGC), motion detection (4 zones), lens distortion correction (LDC), alarm events, dynamic range, 8 privacy masking zones, 3D-DNR noise reduction, image rotation, defog, and adjustable shutter speed.

Video:

The KTNC square mini network cameras feature a 1/2.8'' SONY STARVIS CMOS sensor with 2 and 5MP resolution models, which work well in low light conditions, enabling image capture in dimly lit environments.

The adjustable high image resolution ranges from 384x288 to 1920x1080 for the KNC-HMSS347-iB and from 384x288 to 2592x1944 for the KNC-FMST947-iB, allowing adaptation to network configuration and allocated bandwidth, ideal for remote connections such as 4G.

Three streams are available, and the compression format can be set to H.264 (Main, Base, Profile) and MJPEG.

Audio:

The cameras have an internal microphone for remote listening, using the G.711 codec, and support two-way audio.

The audio output allows for connection to a speaker, enabling sound playback from the monitoring station, facilitating two-way communication.

Recording:

These cameras are intended to be connected to a surveillance station, where live viewing, remote recording, and interaction with the camera are possible.

It will be possible to record:

• Manually: Activate recording when necessary
• On a schedule: A weekly calendar allows you to define the day and time when you want the system to record videos.
• Motion detection: Recording is triggered when motion is detected in the image within user-defined areas.
• Alarm: When an alarm is triggered, you can record, send an email notification, upload to an FTP server, or send a notification to a server.

Power Supply:

The cameras can be powered either by 12VDC or by POE in 802.3af.

Integrators:

Perfect for integrators and software developers, this camera is OnVif compliant, and the API is available upon request.

Additionally, a built-in microphone allows for remote listening.

The KNC-HMSS347-iB (2MP) camera is also available with a 4.3mm pinhole lens:

KNC-HMSS347-iB = Standard 3.6mm board lens

KNC-HMSS347-iP4 = 4.3mm pinhole lens
