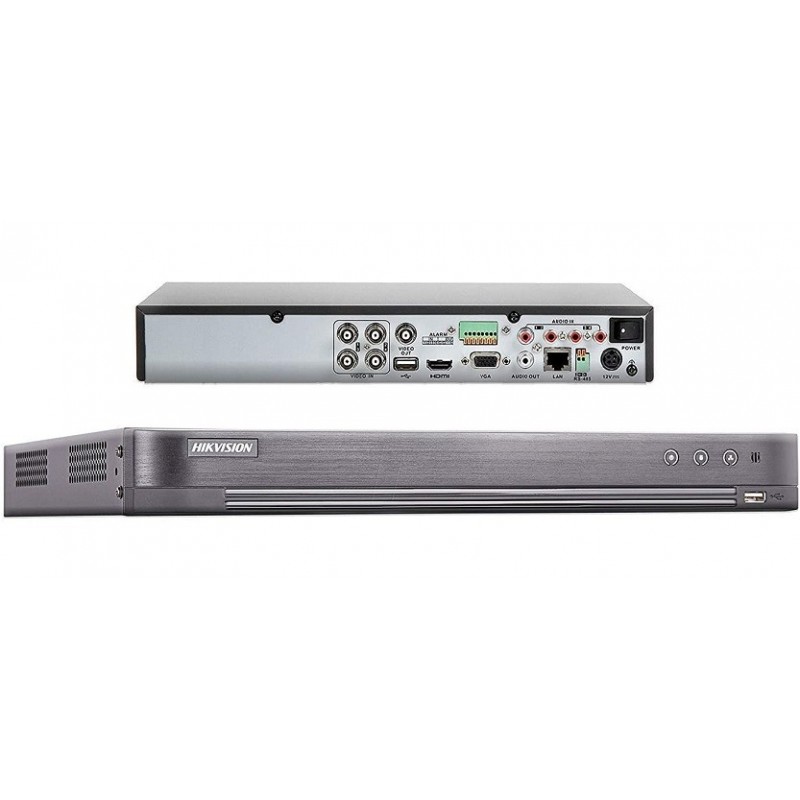

7204HQHI/08/16 DVR CVBS/AHD/TVI/CVI
New product
Digital video recorders for coaxial cameras
Compatible with analog, AHD, CVI, and TVI cameras.
From 1 to 32 channels.
Description
ALLWAN SECURITY offers a wide range of standalone video recording devices to save data captured by your cameras during industrial process control operations.
From 1 to 32 channels, our recorders (DVRs) allow for recording in various modes: scheduled weekly, manual, 24/7, motion detection, or via contact inputs.
Storage capacity can go up to 10TB, providing several weeks of continuous recording.
The oldest data is automatically overwritten for autonomous use with no maintenance required.
Technical Specifications
Series 7204 / 7208 / 7216 / 7232:
HD-TVI/AHD/CVI/Analog and IP
Compression: H265 H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
1080p 25 frames per second viewing and recording on all channels
VGA and HDMI + BNC screen output
1 Audio input
1 SATA port for up to 10TB
Intuitive software interface in French, controlled via mouse
RS485 multi-protocol control for motorized cameras, including Pelco D and Pelco P
