Quadvision AHD CVI TVI CVBS multiplexer
New product

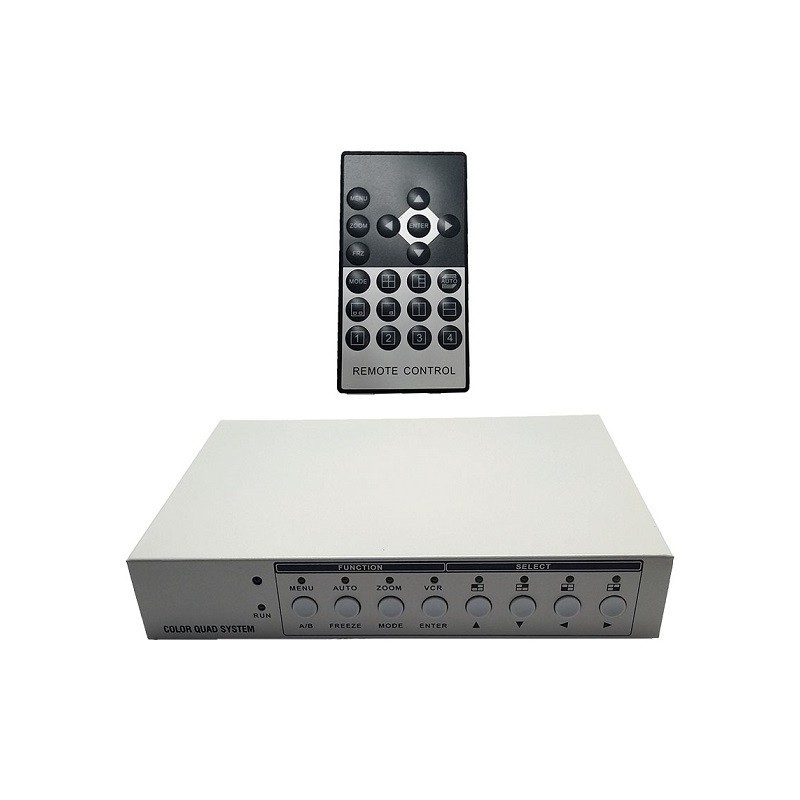

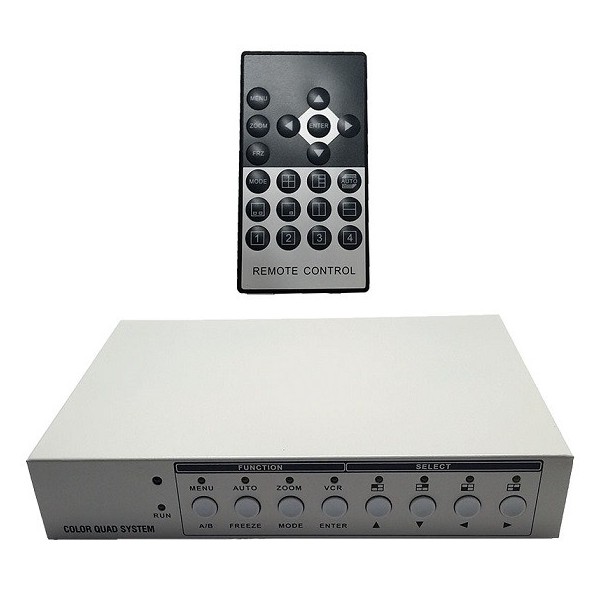

Multiplexer quad box High resolution | QUAD-404HD
Full screen display, PIP, divided into 2, 3 or 4 quad mode
Compatible with analog cameras, AHD, CVI and TVI
Description
HD Quadvision unit allowing multiple high-resolution cameras to be displayed on a single monitor.
This quad channel video multiplexer is an ideal accessory for applications where only visualization is required, particularly for industrial process monitoring, boats, embedded systems, and integrated video solutions.
Available in a waterproof 4-channel HD video monitoring case, please consult us.
Technical Specifications
Reference: QUAD-404HD
Video Inputs: 4
Input Video Signal Type: Analog CVBS, TVI, CVI, AHD
Outputs: VGA, HDMI, Analog BNC
No latency
Display Modes: Full screen, sequence, PIP, split 2 (horizontal or vertical), 3, 4 (quad)
Power Supply: 12VDC +/- 10%
Dimensions: 210 x 150 x 50 mm
