Wired Underwater camera - Stainless Steel
New product

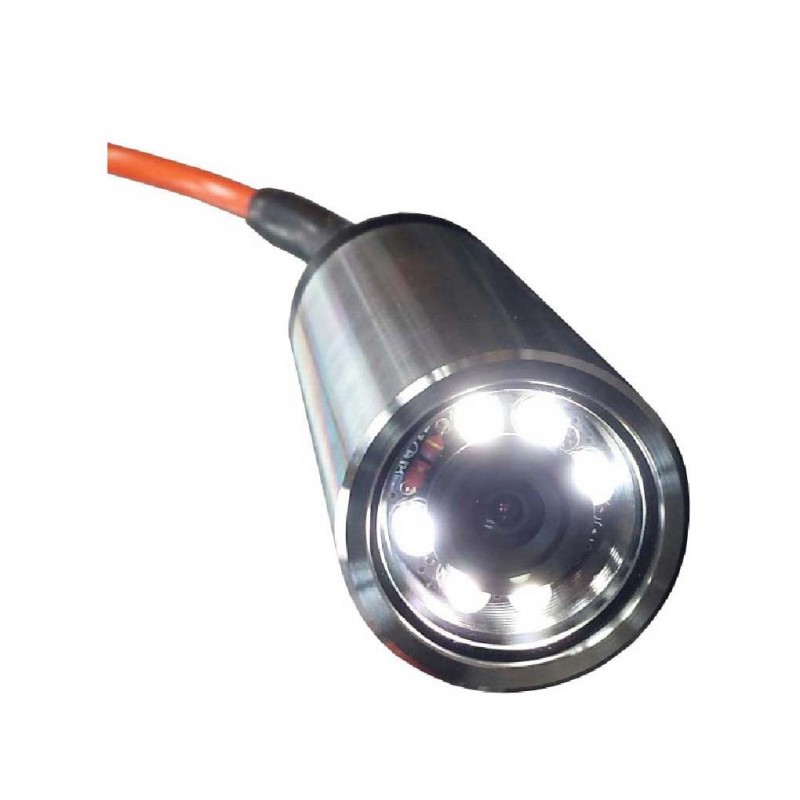

316L SST professional Underwater Camera with cable
Designed for inspections, underwater diving, submerged marine applications, nuclear plants, and any other use where the camera operates underwater.
Description
Compact 200m Depth Full HD Underwater Camera
The professional wired underwater camera provides a live surface video monitoring, designed for industrial, surveillance, professional diving, marine and freshwater environments, nuclear plants, and underwater rescue operations. With IP68 waterproofing, it offers a maximum depth of 200m for permanent underwater use. 100% customizable, made in France by Allwan Security.
 | Compact Mounting Bracket for UW-38 Camera in Marine Grade 316L Stainless SteelCompact and robust mounting bracket made from electropolished 316L stainless steel, sold separately. Perfectly suited for the UW-38 series, this bracket allows for quick and secure installation |
Applications
- Marine vision
- Swimming pool water
- Salt water
- Nuclear industry
- Submerged process control
- Underwater equipment testing
Available models
- UW-38i: Composite analog PAL signal (960H resolution)
- UW-38TVI/UW-38AHD: HD-TVI or AHD Full HD 1080P at 25fps
- UW-38TVI-TRPE/UW-38AHD-TRPE: Same as UW-38TVI with removable SubConn connector
Technical Specifications
- Full HD 1080p resolution
- Made in France, 316L stainless steel body
- 200m depth rating (IP68) - 20 bars pressure
- 90° wide-angle view in air
- Scratch-resistant sapphire crystal lens
- Optional removable SubConn Micro Circular underwater connector
- Reinforced underwater cable ALTV075 (sold separately)
- Pressure rating exceeds requirements
- Available lens options: 3.6mm, 6mm, 8mm
- 6 ultra-bright LEDs, white or IR optional
- Optional no-light configuration (recommended for underwater work)
- Power supply: 10.8-13.2VDC
- High-quality polyurethane abrasion-resistant cable (sold separately)
- Diameter: 40mm
- Electro-polished finish
Accessories
- Underwater connectors (Jupiter, SubConn, Fischer, Glenair, etc.)
- Titanium or copper-aluminum versions on request
- ALTV075 reinforced cable
- Stainless steel 316L U-mount available
- For H2S environments – Non-Atex
Custom laser engraving available for orders over 20 units.
Discover our Full-HD monitoring and recording suitcases: VDR-150
