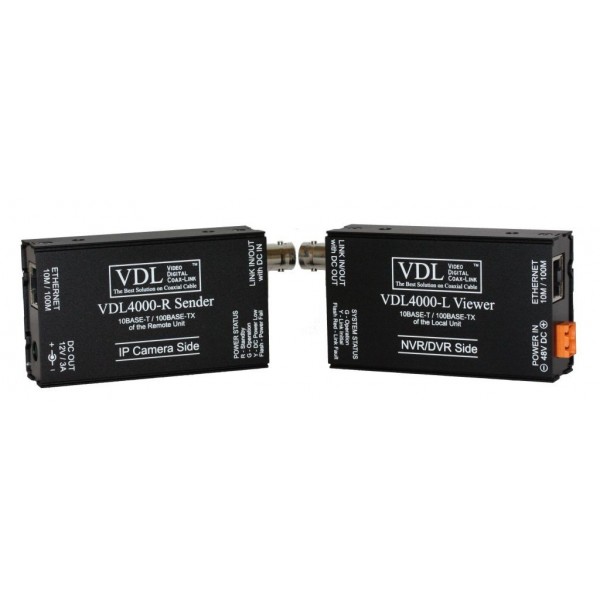

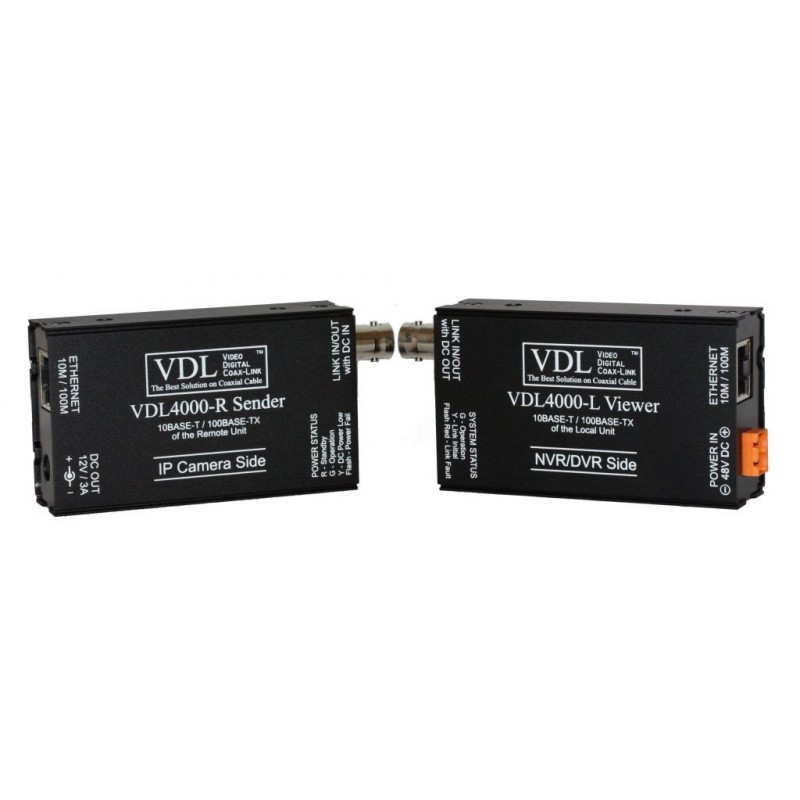

VDL-4000 IP cameras and 12V power supply on coax
New product
IP camera transmission kit or computer network. Power supply 12VDC up to 3A via coaxial. Transmission 800m max
Supports any type of IP camera.
The VDL-4000 is ideal for reusing coaxial cable already in place while you want to install IP cameras without redoing the on-site cabling to monitor.
It can also power a 12VDC camera up to 3A
Characteristics:
RJ45 Ethernet IP transmission and 12VDC 3A power supply via coaxial
100Mbps to support full-HD megapixel cameras
800m of max transmission with KX-6 or RG59 / RG6 cable
12VDC 3A power supply for camera or equipment (Ethernet switch for example)
Supports any type of IP camera without distinction
Short-circuit and overload protection
Can link with switches to create a multi-camera link
LED status indicators.
