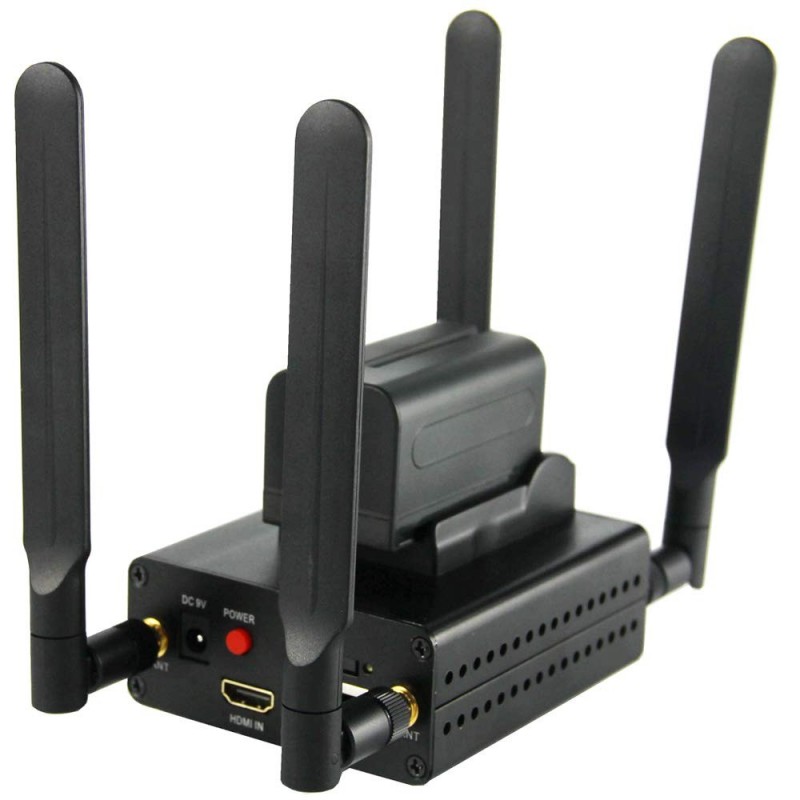

Video Encoder RTMP Portable
New product
Professional HD audio and video encoding. Powerful features. Supports H.264 / MPEG-4.4 data stream encoding. HDMI channel input supporting H.264 main profiles video code format and AAC / MP3 audio code format.
Adopt dual band HG 2.4 GHz / 5 GHz WiFi, reach a bandwidth of 300M, an integrated 4G LTE FDD / TDD LET module, a TD-SCDMA module, it is the best solution for wireless transmission in stable and real-time streaming.
Import live videos and quickly and easily add titles, content, site or other information.
Support for more than 8 hours of external battery (Sony F550 / 750/950 battery), you will never miss a moment of the action. When it runs out of juice, just connect a USB battery to continue.
Characteristics
Model: LTE FDD
1-channel HDMI video input (version 1.4) supports HDCP
Resolution 1920 × 1080P, 1920 × 1080i, 1280 × 720P
Frame rate 60fps
H.264 High / Main / Baseline Profile video encoding
Code bit rate 0.16 Mbps ~ 32 Mbps
CBR / VBR bit rate control
GOP Type IBBP
Deinterlace advanced video preprocessing, noise reduction, sharpness.
AAC, MP3 audio coding
32K / 48K / 64K / 96K / 128K / 160K / 192K / 256K sampling rate
24-bit sampling accuracy
Audio bit rate 64 KB / s ~ 384 KB / s
Ethernet RJ45 1000 Base-T interface
4G model 1 (optional) FDD LTE: band 1,2,3,4,5,7,8,20
4G model 2 (optional) FDD LTE: band 1,3,8
TDD LTE: band 38,39,40,41
WiFi 300M, dual band
RTMP / RTSP / UDP / HTTP / HLS / FLV / TS protocol
Configuration interface WEB operation interface
Upgrade Can be upgraded over the Internet
Working temperature: 0 ~ 45 ℃ -20 ~ 80 ℃ (storage)
Power: DC9V
Battery holder: optional
Consumption: 6W
Dimension: (LxWxH) 88 x 104 x 55mm
Weight: 0.35 kg external battery (Sony F550 / 750/950 battery), you will never miss a moment of the action. When it runs out of js, just connect a USB battery to continue.
