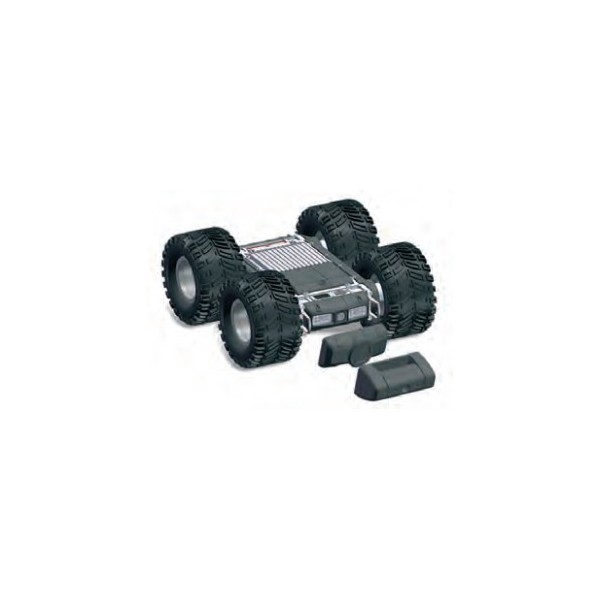

SCARAB - Controlled Discovery and Exploration System
SCARAB is designed to collect audio-video data in hard to reach or dangerous areas. the
The system transmits the data via RF link to the video surveillance and remote control unit.
The exploration platform is a wheelbase with integrated high-resolution cameras, a thermal camera, microphone and audio-video transmitter.
Video data is transmitted via a digital wireless channel providing high quality and stability.
4 wheels driving.
High resolution video cameras.
Powerful white and infrared lighting.
Automatic rotation of the image on the control screen when the platform is tilted.
Driving angle up to 30 °.
Switching frequency channels.
Power supply: rechargeable Li-Po battery
Provides no less than 120 minutes of continuous operation from the platform.
Fast mode / speed increase up to 5 km / h
Battery level indicator
Dimension wheels: 355x348x155mm
Dimension rail: 330x300x110mm
Weight: 5.5 kg
Operating temperature range -20 ° C to + 40 ° C
Humidity (at + 25 ° C),%
Interchangeable front panel:
front camera white / IR
Rotating camera (60 ° / + 60 °) horizontal line
Interchangeable track wheels.
Ability to reduce the height of the platform to inspect under vehicles.
Possibility of climbing stairs (with extended lane).
The SCARAB Kit Set includes a controllable exploration platform and remote control, integrated
with 7 '' screen. The device is stored and transported in the dust and watertight housing.
SPHERE designed to collect audio and video data in difficult areas. Simultaneous transmission of video data by 4 video cameras without loss of image quality. LED lights, microphone and data transmitter. The device has an integrated positioning function. Reception and monitoring of data executed via a wireless channel. Waterproof case for transport.
Analog wireless remote control and SCARAB and SPHERE video surveillance unit. Listening to audio data and receiving digital and analog video data. Audio / video output for external link monitor. SCARAB / SPHERE mode switching button. Frequency channel change. Li-Ion power suply.
Professional HD audio and video encoding. Powerful features. Supports H.264 / MPEG-4.4 data stream encoding. HDMI channel input supporting H.264 main profiles video code format and AAC / MP3 audio code format.
Secure transmission kit for surveillance drone for Law Enforcement and civil rescue.Crisis management solution by encrypted wireless transmission Multi-operator long distance streaming.Remote HDMI and 4G LTE, short and long distance HDMI drone transmission kit. Very low latency. multi operator aggregation.
