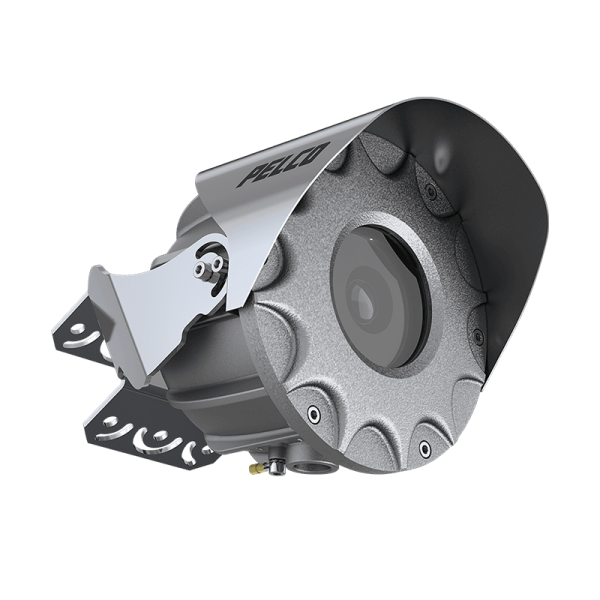

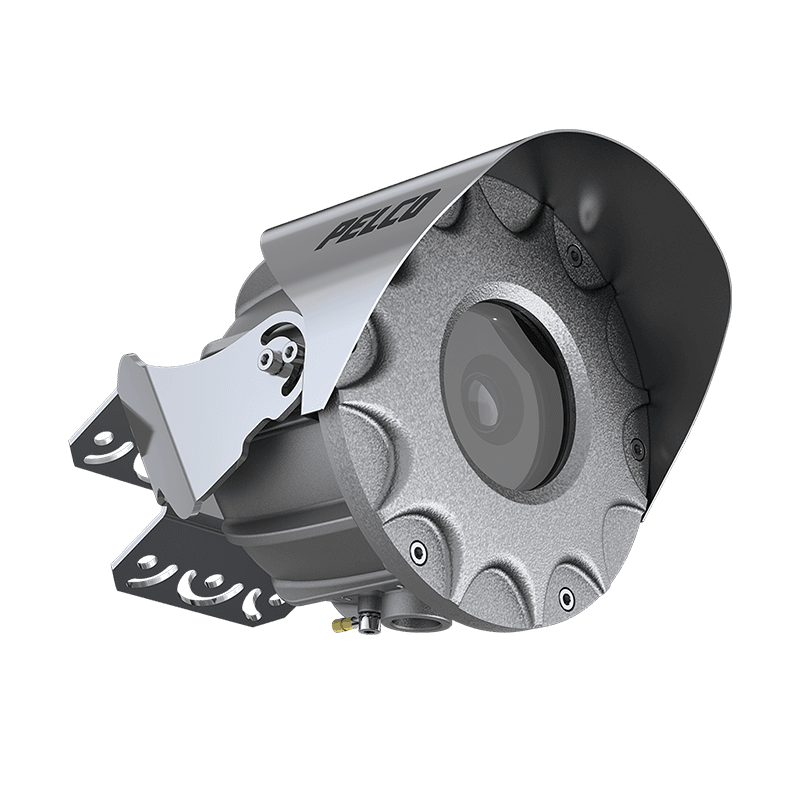

EXSITE ENHANCED 2 COMPACT SERIES EXPLOSION-PROOF CAMERA SYSTEM

Description

The Exsite Enhanced 2 Compact camera is ATEX and IECEx certified.

It is designed for explosion-risk zones (Zone 1 and Zone 2) – ideal for petrochemical plants, refineries, chemical facilities, and offshore platforms.

IP66-rated, it is weather- and corrosion-resistant thanks to its stainless steel housing rated IP66, IP67, IP68, and IP69K.

For ATEX marine applications, particularly on offshore floating platforms, the camera is also Lloyd's certified.

Key Features

High-performance IP camera: ONVIF compliant, easily integrates into any IP surveillance system.

HD video up to 1080p with 30x optical zoom, ideal for remote monitoring areas.

Extreme temperature range: operates from -40°C to +60°C.

Smart night vision with adaptive infrared up to 200 meters (depending on model).

Quick installation thanks to its compact design, enabling deployment in confined or hard-to-reach spaces.

Flexible power options: PoE, AC, or DC.

Technical Specifications

Image Performance

• Maximum resolution: 3200 × 1800 (6 MP)
• Sensor: 1/1.8" progressive scan CMOS
• Aspect ratio: 16:9
• Frame rate: Up to 30 frames per second
• Dynamic range:
• WDR off: 85 dB
• WDR on: up to 120 dB
• Minimum illumination: Color: 0.055 lux (F/1.8) - B/W: 0.028 lux (F/1.8)
• 3D noise reduction: Yes
• Scaling: Down to 384×216 (16:9) or 320×256 (5:4)

Lens

• Optical resolution: 6.0 MP
• Aperture: F1.8, 4.9–8 mm with remote focus and zoom
• Field of view (H/V):Horizontal: 52° to 92° - Vertical: 29° to 51°
• Minimum focus distance: 0.5 m

Image Control

• Video compression: H.264, H.265 (Pelco Smart Compression), MJPEG
• Streaming: Multi-stream H.264, H.265, MJPEG
• Electronic shutter: Automatic or manual (1/7 to 1/8196 sec)
• Iris: P-Iris, automatic, open, closed
• IR filter: Mechanical, automatic or manual
• Flicker control: 60 Hz, 50 Hz
• White balance: Automatic or manual
• Backlight compensation: Adjustable
• Privacy zones: Up to 64 zones

Network

• ONVIF compliance: Profiles S, T, G, M
• Security: HTTPS, digest/WS authentication, access log, signed/encrypted firmware, 802.1x
• Supported protocols: IPv6, IPv4, HTTP(S), DNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, SRTP
• SNMP management: Versions 2c and 3

Mechanical Construction

• Dimensions (L×W×H): 254.4 × 177 × 177.5 mm
• Weight:
  Without cable: 6.5 kg
  With 4 m cable: 8.5 kg
  With 10 m cable: 11.5 kg
• Material: AISI 316L stainless steel
• Finish: Electro-polished
• Cable entry: 1/2" NPT
• Shielded cable (optional):
• Outer diameter: 16.8 mm ± 0.4 mm
• Under armor: 12.4 mm ± 0.3 mm
• Composition: 3 × 1.5 mm² + 4 × 2 × 0.22 mm² (cat. 5E F/STP)

Power & Storage

• Local storage: microSD/microSDHC/microSDXC up to 2 TB (Class V10 or higher recommended)
• Connectivity: RJ45 (100BASE-TX)
• Power consumption:
  24 VDC: 20 W (0.9 A)
  24 VAC: 21 W (1.32 A)
  PoE+: IEEE 802.3at
• Supported power: 24 VDC/VAC ±10%, PoE+ IEEE802.3at

Environmental

• Operating temperature: -40 °C to +65 °C
• Storage temperature: -40 °C to +55 °C
• Humidity: 10% to 95%, non-condensing
• Cold start: Up to 1-hour startup delay if < -10 °C
• Thermal system: Integrated fan and heater

Certifications

Safety / Environmental

• General certifications: cULus, CE, UKCA, ROHS, RCM, BIS, KC
• Safety standards: UL/CSA 62368-1, EN/IEC 62368-1, IS 13252/IEC 60950-1
• IP rating: IP66, IP67, IP68, IP69
• Salt fog resistance: EN 60068-2-52
• NEMA: UL50E: 4X, 6P
• Vibration resistance: EN 50130-5, EN 60068-2-6

EMC

• Emissions: FCC Part 15, ICES-003, EN 55032, EN 61000-6-3
• Immunity: EN 50130-4

Marine Certification

• Lloyd’s Register Marine Type Approval: EN 60945
• Requires MAXIMUS MBX communication box or FM1010 filter
• Salt fog resistance: EN 60068-2-52

Hazardous Environment Certifications

• ATEX: EN IEC 60079-0, -1, -31
• IECEx: IEC 60079-0, -1, -31
• EAC EX: TR CU 012/2011
• INMETRO: ABNT NBR IEC 60079-0/-1/-31
• UK Ex: EN IEC 60079-0/-1/-31
• KCs: Employment and Labor Dept 2016-54
• UL (USA & Canada): UL 60079-0/-1/-31, CSA-C22.2 without armored cable
