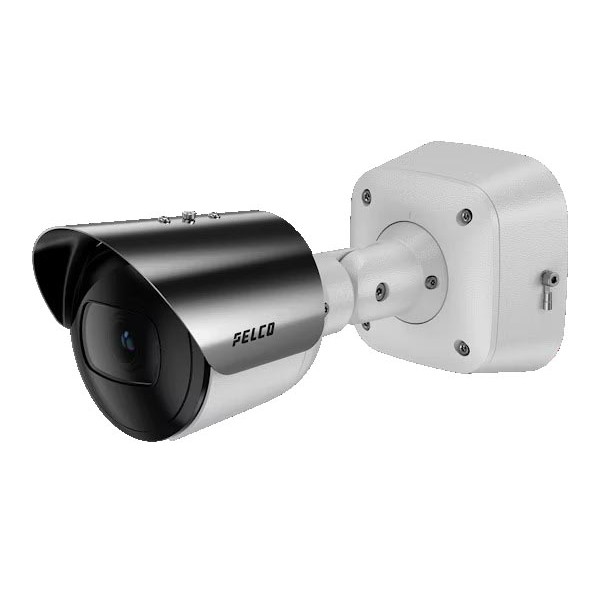

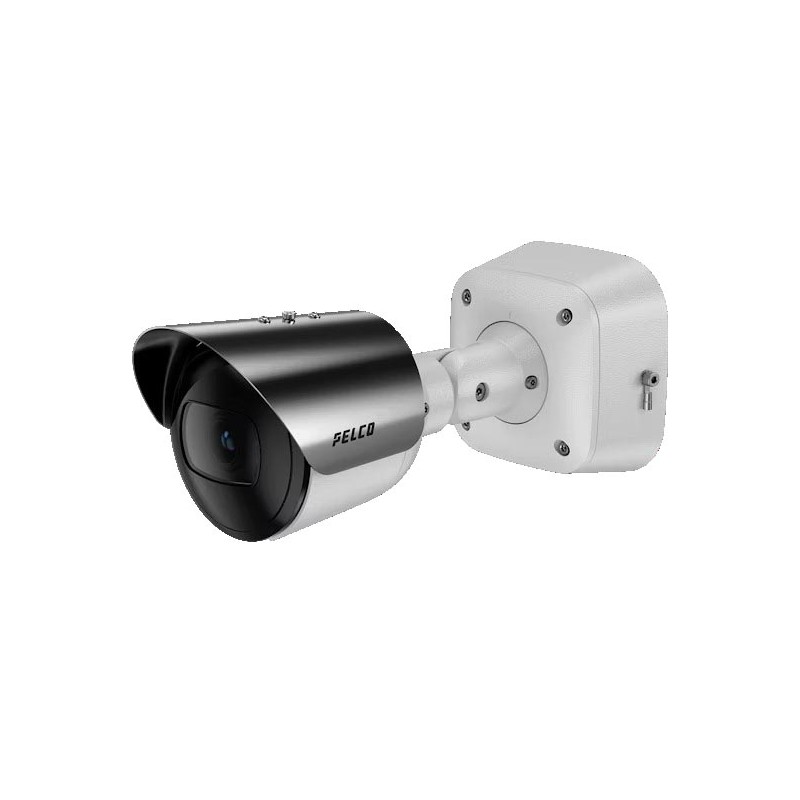

ExSite Pro Bullet - ATEX IP compact 4K camera

Description

Secure your installations in the harshest environments with the Pelco ExSite Pro Bullet

The Pelco ExSite Pro Bullet is a rugged, high-tech ATEX Ethernet security camera designed to deliver superior surveillance quality, even in the most dangerous and extreme conditions.

Because safety is paramount and price is crucial, PELCO and ALLWAN offer this camera at a controlled price, combining budget-friendliness with high performance.

With ATEX certification, this camera is ideal for explosion-risk zones. Its compact design and 4K IP performance with OnVif compatibility make it a flexible and powerful surveillance solution for all your security needs.

Technical Specifications

• Sensor: High-sensitivity CMOS

• Temperature Range: -50°C to 60°C

• Video Resolution: Up to 4K UHD (3840 x 2160)

• Varifocale lens : 4.4-9.3mm (H angle 109~47°)

• Connectivity: IP, Ethernet, PoE+, ONVIF

• Protection: IP66 (water and dust resistant), IK10 (impact resistant)

• Certification: ATEX Zone 1 & 2 (gas and dust)

• Night Vision: Infrared, up to 100 meters

• Video Analytics: Motion detection, behavioral analysis

Key Features of the Pelco ExSite Pro Bullet

ATEX Certification (Zone 1 & 2):

The ExSite Pro Bullet camera is specifically designed for hazardous industrial environments such as explosion-risk areas (ATEX zones), providing enhanced security in explosive atmospheres (gas or dust).

CERTIFICATIONS

Explosion-proof

ATEX (EN IEC 60079-0, EN 60079-7, EN 60079-31),
IECEx (IEC 60079-0, IEC 60079-7, IEC 60079-31),
UK Ex (EN IEC 60079-0, EN 60079-7, EN 60079-31),
UL listed for USA (UL 60079-0, UL 60079-7, UL 60079-31),
UL listed for Canada (CAN/CSA-C22.2 NO. 60079-0, 60079-7, 60079-31),
INMETRO and KCs pending.

Environmental Certifications

IEC 60529 IP66, IP67, IP68 (1.8m depth for 2 hours), IPX9K, NEMA 4X,
IEC 60068-2 Shock & Vibration,
NEMA TS2 Sec 2.2.7–2.2.9,
IK10-rated casing.

EMC Certifications

FCC Part 15 Subpart B Class A, ICES-003 Class A, EN 55032 Class B,
EN 61000-6-3, EN 61000-3-2, EN 61000-3-3, EN 50121-4, EN 50130-4

4K Ultra-HD Resolution

Capture ultra-detailed images with 4K resolution, allowing zoom-in without loss of quality. Perfect for applications where image precision is crucial.

IP Connectivity and ONVIF Compatibility

This IP network camera is fully ONVIF compliant, ensuring easy integration into multi-brand surveillance systems while supporting remote control and optimized management.

Motorized Varifocal Lens

Enjoy sharp and detailed images with a precise motorized varifocal lens offering a viewing angle from 109° to 47°.

Compact and Rugged Design

Its compact size and durable housing make the ExSite Pro Bullet ideal for discreet yet powerful installations in tight spaces while withstanding tough outdoor conditions.

Weather and Impact Resistance (IP66/IP67/IP68 & IK10)

Designed to resist harsh weather, rain, dust, and impacts, this camera is ideal for outdoor use even in extreme climates. With IP66 protection and IK10 impact resistance, it is built for the toughest environments.

Advanced Night Vision

Thanks to infrared vision technologies and high-sensitivity sensors, the ExSite Pro Bullet ensures effective surveillance even in complete darkness. Its smart illumination adapts to the lens setting: up to 30m at wide angle, and up to 70m at full zoom.

Ideal Applications for the Pelco ExSite Pro Bullet

• Petrochemical Industry and ATEX Sites:
  Perfect for high-risk environments, this camera ensures enhanced safety in explosive atmospheres.

• High-Security Outdoor Surveillance:
  Ideal for industrial sites, warehouses, and critical infrastructure requiring continuous and high-resolution surveillance.

• Sensitive and High-Security Areas:
  Government offices, military installations, and any site needing long-term and high-precision monitoring.

• Urban Outdoor Spaces:
  Protect high-traffic areas or public spaces with a camera that captures every detail, even from a distance.

Why Choose the Pelco ExSite Pro Bullet Camera?

• Certified for Hazardous Environments:
  With ATEX certification, the ExSite Pro Bullet is ideal for petrochemical industries, offshore platforms, and all sites requiring surveillance in potentially explosive atmospheres.

• 4K Image Quality:
  Leave no blind spots in your security system. 4K resolution delivers unmatched detail.

• Compact Yet Powerful Design:
  Its small size allows discreet installation without compromising performance—ideal for space-constrained areas.

• Easy Integration with Existing Systems:
  ONVIF compatibility and IP operation allow for smooth integration with your existing video surveillance setup, regardless of other equipment.

• Durable and Reliable:
  Built to withstand harsh conditions, the ExSite Pro Bullet’s IP66 and IK10 certifications ensure reliability in extreme outdoor environments.

FAQ – Frequently Asked Questions

Q: Is this camera compatible with existing surveillance systems?
A: Yes, the Pelco ExSite Pro Bullet is compatible with all systems supporting the ONVIF protocol and operates over IP, allowing easy integration with your current setup.

Q: Is the camera certified for explosive environments?
A: Yes, it holds ATEX Zone 1 & 2 certification, making it suitable for high-risk areas such as industrial facilities with explosive atmospheres (gas or dust).

Q: Can this camera be installed outdoors?
A: Absolutely. The ExSite Pro Bullet is designed for outdoor use in extreme weather conditions, with IP66/67/68 protection and IK10 impact resistance.

Q: Does the camera have night vision capabilities?
A: Yes, it features advanced infrared night vision, ensuring continuous monitoring even in total darkness.
