SCOPEVISION RPROBE- Replaceable probe
New product
Industrial-quality endoscope with removable probe
Allows the use of probes in various diameters and lengths depending on the operations to be performed.
Probes ranging from 2 to 6mm in diameter, with lengths up to 7m depending on the model.
Description

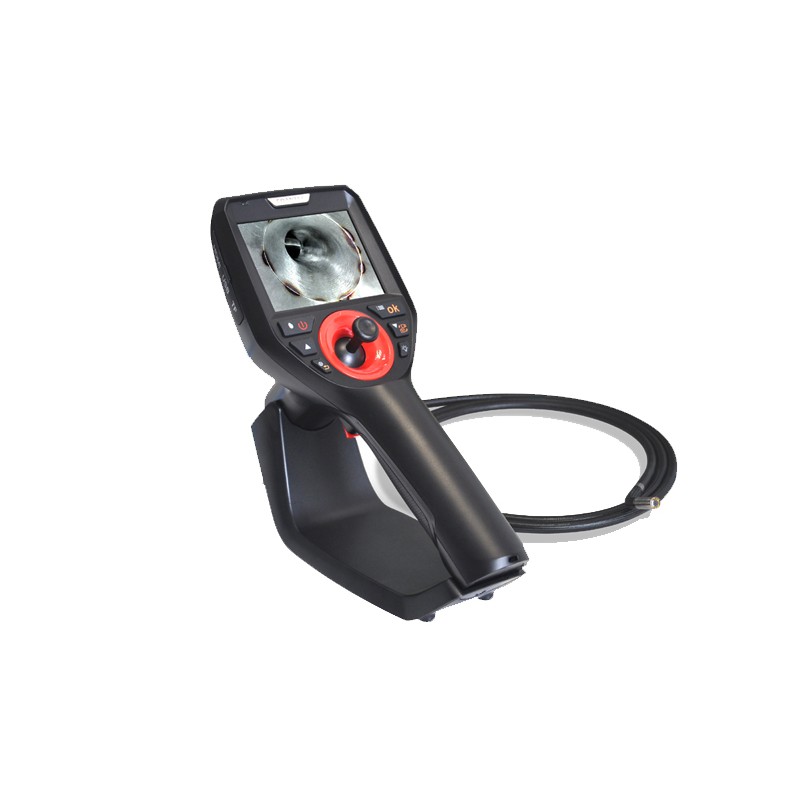

The SCOPEVISION RPROBE is a professional-grade endoscope featuring an innovative probe replacement system that eliminates the risk of damaging the equipment.
The RPROBE comes with probes that are fully articulated to 360°. The HD screen measures 3.5" , and our cameras have a very high resolution, waterproof and dustproof with an IP67 rating. For extreme applications, the probes can be made oil-resistant (contact us for details).
The advantages of this device is not only the wide variety of adaptable probes but also the available options:
- Probes with customizable lengths and diameters upon request
- Probes can be graduated to indicate the inserted length
- Axial view cameras, with axial and radial view options
- Foreign object extraction kit
- Wifi module
Versatile endoscope with a removable probe
  | Lightweight and versatilePerforming multiple functions concentrated in a single device, the investment cost is controlled with efficiency. The SCOPEVISION RPROBE features an integrated ergonomic design, making it lightweight and portable. Perfectly suited for use in aviation, energy, electricity, foundry, mechanical, automotive manufacturing, special inspections, and various other fields. It can detect surface inside various equipments or within the inner cavities of complex mechanical parts. The RPROBE offers HD images with unparalleled sharpness and clarity, enabling technicians to perform detailed diagnostics and analyze situations under optimal conditions. Photo and video recordings, timestamped. |
A removable probe in a snapThe unique probe system can be easily replaced via a bayonet ring at the back of the device. This innovative system prevents damage to the connectors. The operation is completed in less than 20 seconds, ensuring even greater efficiency. |  |
|  |
A wide range of inspection probes5 probe diameters available: 2 - 2.8 - 3.9 - 4.8 - 6mm The 2mm probe is available in lengths from 100 to 150cm. The 2.8 - 3.9 - and 4.8mm probes are available in lengths from 1 to 3m. Finally, the 6mm diameter can be made up to 7m. All probes are IP67 rated, feature an integrated fiber optic lighting system, and have a tungsten braided jacket. |  |

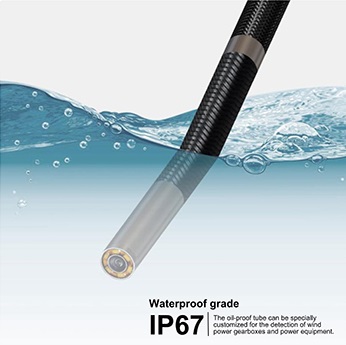

 | Waterproof IP67-rated probe resistant to water and dust, allowing immersion up to 1m depth for 1 hour. New double-insulation structure, created using a laser welding process |
 | |
Technical Specifications
CONTROL UNIT | ||||||
Screen size | 3,5’’ HD High brightness for outdoor use | |||||
Screen resolution | 640*480 | |||||
Digital zoom | 4x Digital zoom during the inspection and 8x during the playback | |||||
Probe lighting adjustment | YES, 7 Levels | |||||
Measurement assistant | Crosshair generator | |||||
Photo / Video | Pictures and videos | |||||
Formats | Image : JPG/BMP – Video : MP4 | |||||
Wifi | YES – Android App - option | |||||
Date and time overlay | YES | |||||
Languages | French, English, German, Portuguese, Spanish, Russian, Chinese, Japanese, Korean | |||||
Screen backlighting | 3 Levels | |||||
Video Output | Micro HDMI | |||||
Dimensions | 240x102x126mm – Carrying case: 411 x 321 x 165mm | |||||
Weight | 650g | |||||
PROBES | ||||||
Diameter | 2mm | 2.8mm | 3.8mm | 4.2mm | 4.8mm | 6mm |
Length | 1-2m | 1-2m | 1-3m | 1-5m | 1-5m | 1-7m |
Focus | 5-50mm | 5-50mm | 8-80mm | 8-80mm | 8-80mm | 8-80mm |
Resolution | 160 000 pix | 160 000 pix | 1 000 000 pix | 1 000 000 pix | 1 000 000 pix | 1 000 000 pix |
Field of View | 120° | 120° | 85° | 85° | 85° | 85° |
Direction (radiale=option) | Axial | Axial | Axial/Radial | Axial | Axial | Axiale/Radiale |
Tiltable | NON | > 150° | > 150° | > 150° | > 150° | > 150° |
Material | Tungsten waterproof | |||||
Light | Led / Optical fiber | |||||
Probe Ingress Protection | IP67 | |||||
POWER SUPPLY | ||||||
Battery Type | Rechargeable Lithium | |||||
Capacity | 3.7V 3200mAh | |||||
Working Time | 3-4h | |||||
WORKING ENVIRONMENT | ||||||
Display Unit Working Temperature | -10 to +50°C | |||||
Probe Working Temperature | -20to +60°C | |||||
Storage Temperature | -20 to +60°C | |||||
Humidity | 15-90% | |||||
PROVIDED IN THE PACK | ||||||
Included in the set | Base RPROBE, Carrying case, Magnetic base, Charger, battery, Micro SD USB Reader, SD 8Go card, manual | |||||
