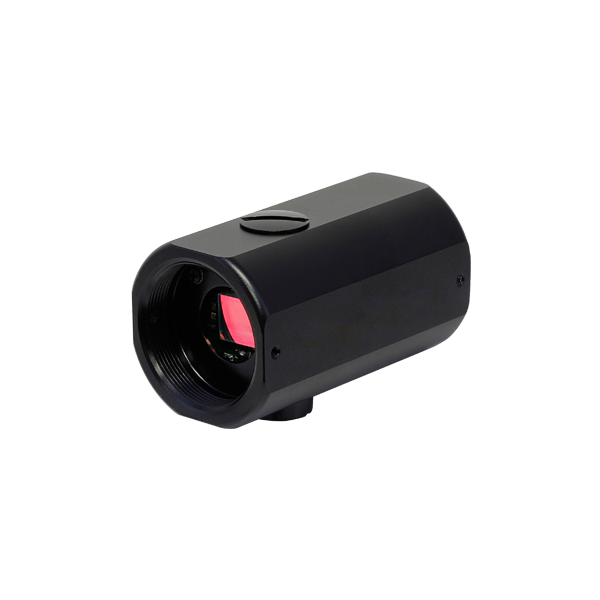

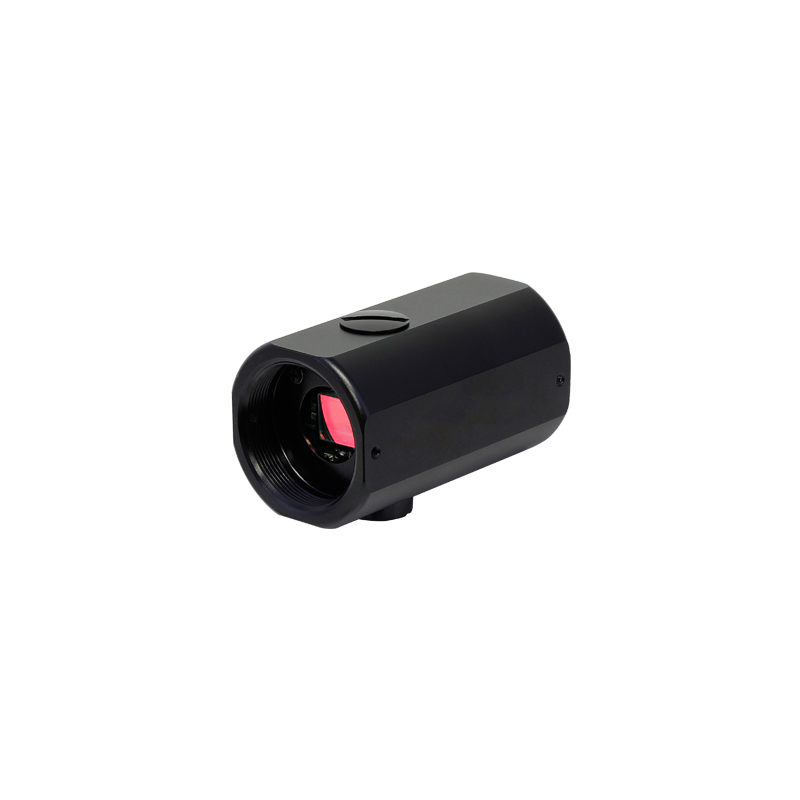

ALLWAN | Short SDI camera with C/CS mount for lens, aspherical, macro, zoom.

Camera compacte HD-SDI/EX-SDI et CVBS à monture C/CS

Condition: New product

KTC-HMB7865-H

HD-SDI(100m@RG59)/EX-SDI1.0(300m@RG59)/CVBS

Ideal for applications that require a specific focal length tailored to the area to be filmed, this camera features a C/CS mount where ALLWAN offers a full range of compatible lenses, contact us for more information.

Some industrial and professional applications require special lenses that can be aspherical, with a close focus for macro shots, a specific angle, or a closed iris for greater depth of field.

Additionally, the SDI video signal provides exceptional image quality with zero latency. This video signal requires a compatible screen. ALLWAN provides optional SDI to HDMI converters.

For older installations, the KTC-HMB7865-H camera also has an analog PAL video output.

Sensor: 1/2.8'' Progressive Scan CMOS
Mount: C/CS
Image settings: D-WDR, 16 Privacy masks, White balance WB (Push Lock Manual), DNR/3D-DNR, Image rotation (OFF, horizontal, vertical, horizontal+vertical), access to the menu via an integrated OSD joystick, WDR, AGC, Motion detection, Anti-fog, sharpness
Sensitivity: 0.1Lux
HD-SDI/EX-SDI1.0: 1080p@30fps(25fps)/720p@60fps(50fps)/720p@30fps(25fps), TV out: CVBS NTSC/PAL
Dimensions: 31x31x55mm
Maximum consumption: 230mA@12VDC

More information is available on the downloadable datasheet.
