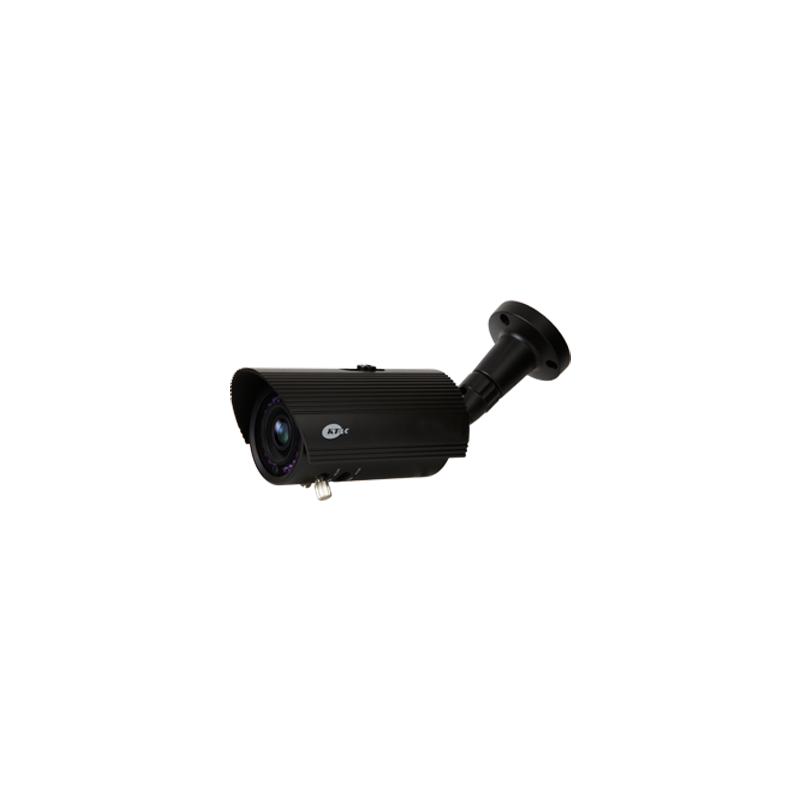

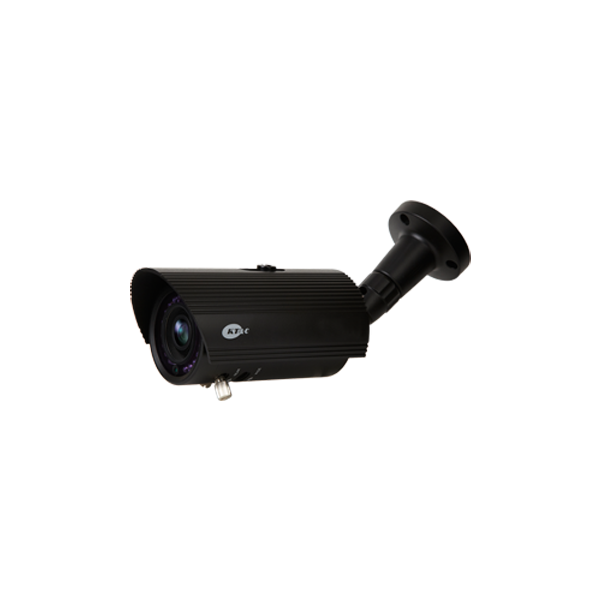

Fixed SDI camera with manual varifocale lens

Description

The benefits of the KTC-EN5022xV camera are as follows:

High resolution: Exceptional image quality with no latency thanks to its high-resolution capabilities, allowing detailed surveillance of areas to be filmed, with no delay in the HD-SDI/EX-SDI signal.

Ease of installation: With its compact design and size, it can be easily installed in most configurations, both indoors and outdoors.

Enhanced waterproofing: Rated IP66, it guarantees flawless protection against dust and water, ensuring use in all weather conditions.

Integrated varifocal lens: The camera features a manual varifocal lens that can be adjusted with sliding buttons from the outside, making it convenient for frequent adjustments.

HD-SDI video signal: Immediate high-definition professional video signal with no time delay.

Video signal options: It can be set to either 1080P at 25fps or 720p at 25 or 50fps.

Power supply: 12VDC.

Additional features: The camera includes additional features such as night vision, noise reduction, and other image processing options for optimal performance in various lighting conditions.

Conclusion: The KTC-EN5022xV camera offers a combination of high image quality, versatile installation options, weatherproof protection, and advanced features, making it an ideal choice for both indoor and outdoor surveillance applications, particularly in industrial settings and specific projects.

Technical Specifications

• Sony 1/2.8” 2.13MP STARVIS CMOS image sensor
• Resolution: 1080p(1920x1080)@30(25)fps
• Video output: HD-SDI(100m@RG59)/EX-SDI1.0(300m@RG59)/EX-SDI2.0(500m@R59)
• Varifocal DC Iris lens: 2.8~12mm
• Mechanical Day&Night IRC filter and 20 Infrared LEDs
• WDR, 3D DNR, Anti-fog
• OSD menu
• Bullet-type exterior camera

For more technical information, please refer to the downloadable datasheet.
