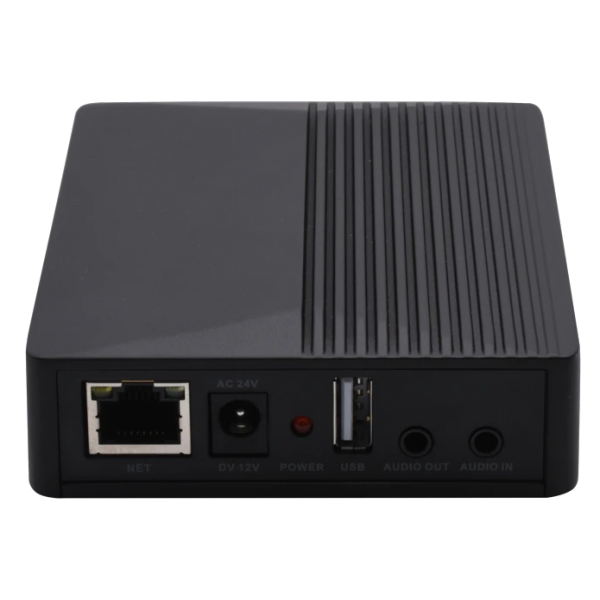

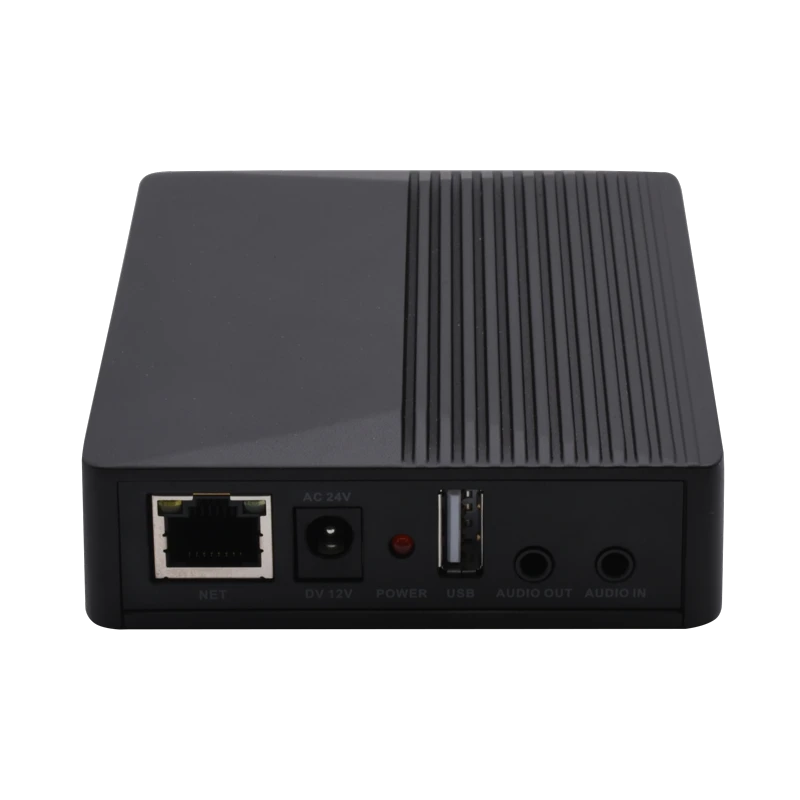

VIZ003‑B0: 5 MP AHD/TVI/CVI/PAL ENCODER TO IP

Condition: New product

Budget-Friendly Compact Video over IP Encoder

ONVIF-compliant IP encoder, powered via PoE or 12 VDC. It converts existing analog cameras (PAL, AHD, CVI, TVI up to 5 MP) to IP, making it the ideal solution for retaining costly equipment—such as thermal cameras, long-focal-length models, or PTZ domes (UTC only) —without the need for replacement.

Featuring 8 alarm inputs and 4 alarm outputs, this encoder can also function as an expansion module to increase your recorder's I/O capabilities.

More details

More info
Download

Technical Specifications

BNC Video Input : 5 MP — AHD / CVI / TVI / CVBS

Image Resolution:

5 MP: 2592×1944
4 MP: 2560×1440
2 MP: 1920×1080
720p: 1280×720

IP Video Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG with Region of Interest (ROI)

Power Supply: PoE or 12 VDC

DATASHEET VIZ003-B0

Download (276.82k)
