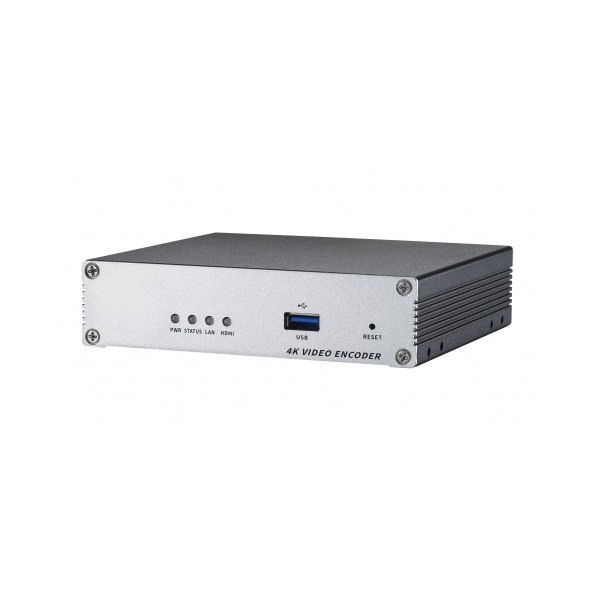

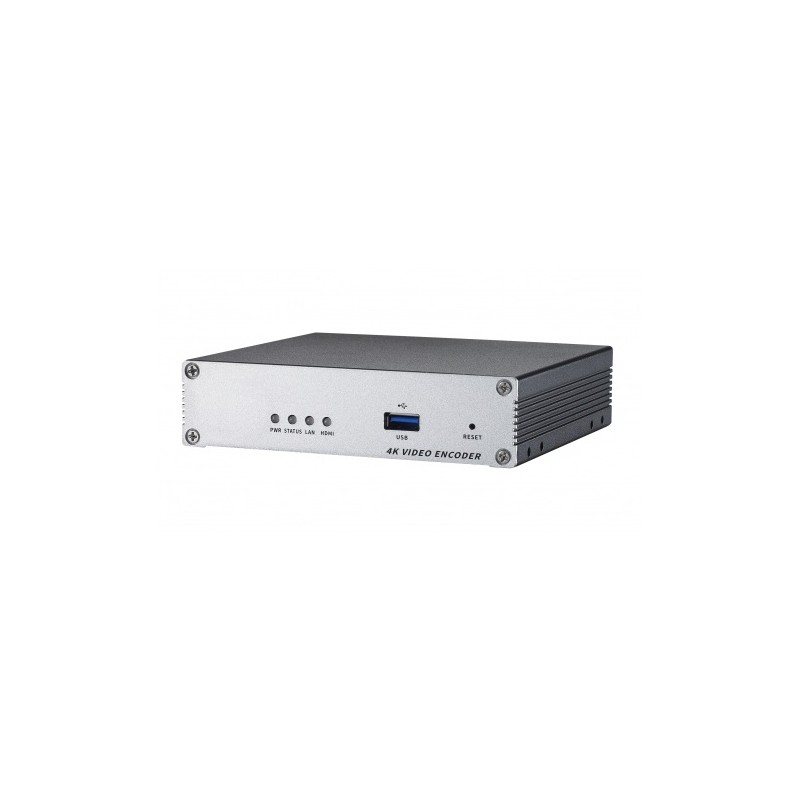

ALTN9500 4K HDMI Video encoder
New product
4K HDMI Video Encoder over IP
Audio management via HDMI
Maximum bitrate: 49Mbps
4 streams
Up to 60 frames per second at 3840x2160
Description
The ALTN-9500 is a professional-grade 4K video encoder designed for broadcast and industrial applications, offering high-quality video encoding, versatile streaming, and advanced network features. The ALTN-9500 video server is NDAA compliant.
Video Inputs/Outputs: Supports HDMI input (Type A) with loop-back HDMI output. It handles resolutions from 320x240 to 3840x2160, with up to 60 frames per second at 4K resolution.
Compression Formats: Utilizes H.264, H.265, and MJPEG for video encoding.
Audio Support: Provides full-duplex audio streaming with G.711 and AAC compression, adjustable bitrates, and supports HDMI and line-in audio inputs.
Networking: Equipped with a Gigabit Ethernet (10/100/1000 Base-T) port and supports various protocols, including IPv4/IPv6, RTSP, RTP, and ONVIF for seamless integration with other systems.
Power and Operation: Powered by 12V DC or PoE 802.3af, with a power consumption of 15W, operating in a temperature range from -20°C to 50°C.
Additional Ports: Includes a USB 3.0 port for local storage, RS232/RS-422/485 interfaces for control, and alarm interfaces.
This device is ideal for secure video streaming, high-performance broadcasting, and recording with robust network integration and multi-format video processing.
Technical Specifications
- Input/Output: HDMI
- Compression: H265, H264, MJPEG
- Resolution: From 320 x 240 to 3840 x 2160
- Bandwidth: Up to 49Mbps configurable
- Audio Input: Yes, and manages audio via HDMI
- Audio Compression: G.711/AAC
- Menus: 15 languages, including French
- Protocols: IPv4/IPv6, TCP, UDP, ICMP, DHCP, HTTP, HTTPS, SRT, FTP, SNMP, IPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTSP, RTP, RTMP, Multicast (IGMP)
- OnVif: Profiles G, S, T
- Other: MPEG-TS, PSIA
- Frames per second: 60 fps at 1080p
- Streams: Quadruple streaming
- Recording: Yes, on USB 3.0 port
- Telemetry: RS485/RS422/RS232 multi-protocol management
- SDK: Available on request
- Power Supply: 12VDC 1A or POE 802.3af
- Dimensions: 134 x 125 x 33 mm
- Weight: 560g
