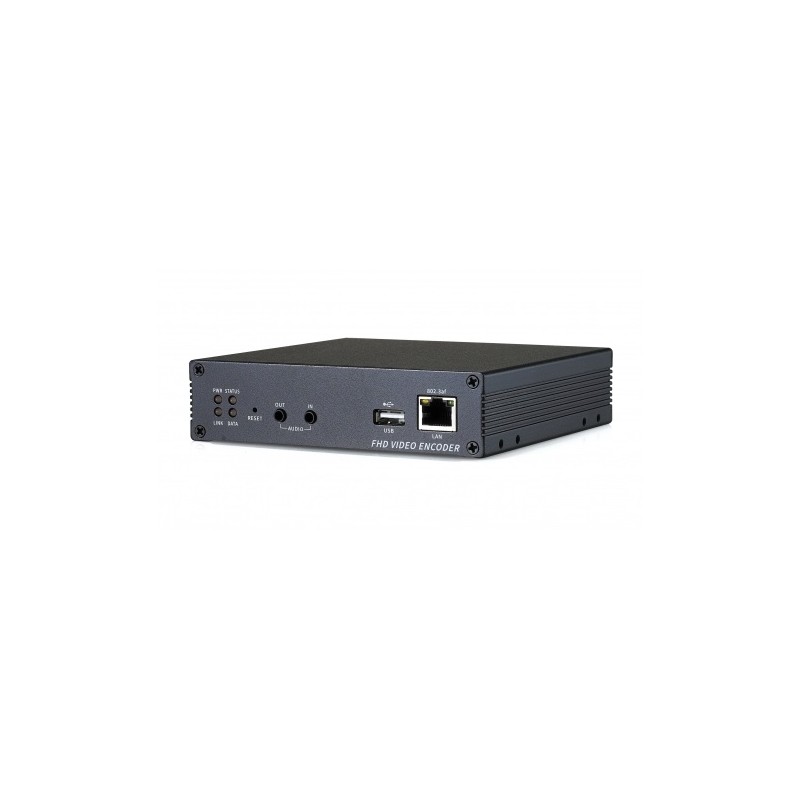

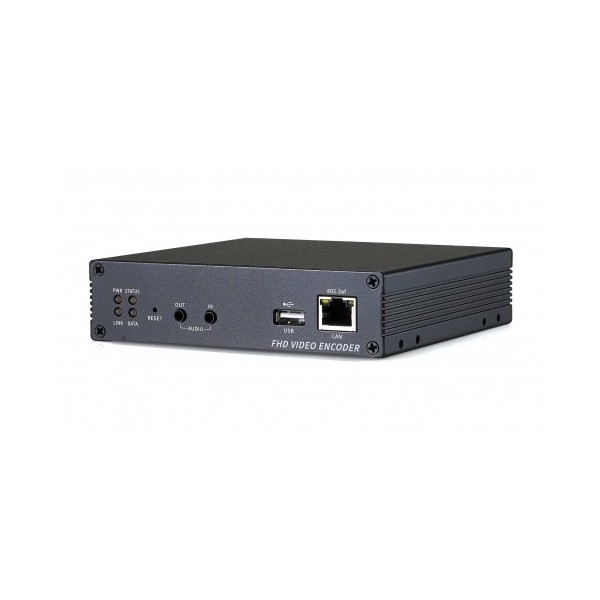

ALTN3100 Professional video coder

Description

This device replaces the ALTN3000.

The ALTN3100 video server is an encoder that allows for smooth high-quality video streaming at 1920x1080 resolution at 60 frames per second, based on a H.265 algorithm.

NDAA compliance makes it a secure Ethernet device.

Equipped with a 10/100/1000 Base-T RJ45 port, multiple streaming capabilities, and the option for recording on a USB flash drive or hard drive, it can also be powered via POE 802.3af or an external 12VDC power supply.

The ALTN3100 converter also supports the OnVif protocol, profiles G, S, and T, as well as MPEG-TS.

The SDI and HDMI video inputs are LOOP type, allowing for an identical video output to the injected signal, for example, to connect a screen.

Technical Specifications

• Input/Output: 3G-SDI and HDMI
• Compression: H265, H264, MJPEG
• Resolution: From 320 x 240 to 1920 x 1080
• Bandwidth: Up to 50Mbps configurable
• Audio Input: Yes, and manages audio via HDMI
• Audio Compression: G.711/AAC
• Menus: 14 languages, including French
• Protocols: IPv4/IPv6, TCP, UDP, ICMP, DHCP, HTTP, HTTPS, SRT, FTP, SNMP, IPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTSP, RTP, RTMP, Multicast (IGMP)
• OnVif: Profiles G, S, T
• Other: MPEG-TS
• Frames per second: 60 fps at 1080p
• Streams: Quadruple streaming
• Recording: Yes, on USB 3.0 port
• Telemetry: RS485/RS422/RS232 multi-protocol management
• SDK: Available on request
• Power Supply: 12VDC 1A or POE 802.3af
• Dimensions: 134 x 125 x 33 mm
• Weight: 560g
