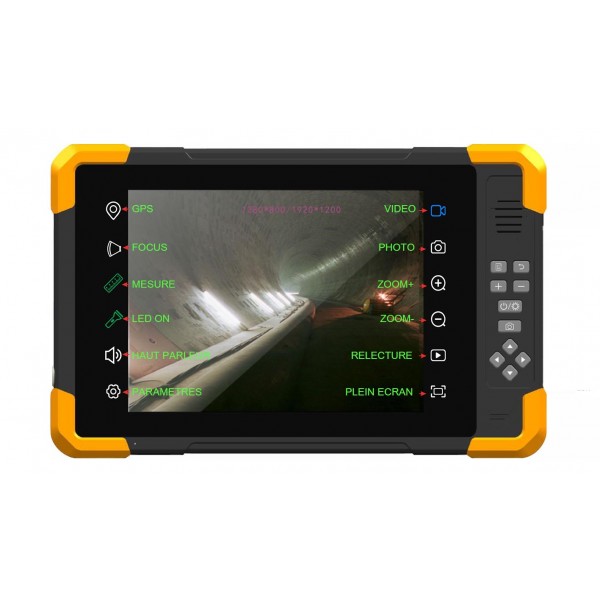

LUMISS100 Recorder-monitor 10 inch portable waterproof
New product
Portable, battery-powered non-destructive control screen for video monitoring and recording
Compatible with our ALLWAN SECURITY cameras, as well as AHD, CVI, TVI, and analog CVBS PAL/NTSC
Description
The next-generation LUMISS100 screen is a high-performance tool offering 4K recording capability.
Equipped with a removable battery, it provides a working autonomy of 6 to 8 hours.
Designed for use with ALLWAN SECURITY cameras, it is also compatible with AHD, CVI, TVI, and CVBS PAL/NTSC. USB and LVDS input options are also available.
With a large 10.1-inch display, it features high brightness at 800cd/m² on a capacitive touchscreen panel.
It supports RS485 control, PWM LED control, 4-bit laser input for distance measurement, and zoom control.
Video recording is available with the option to comment on the video using the built-in microphone, as well as taking screenshots, all with a maximum storage capacity of 256GB. The battery has a runtime of approximately 6/8 hours.
Technical Specifications
- Display: 10.1" high-brightness 800cd/m²
- Display Resolution: 1200x800
- Recording Resolution: 4096*3112, 2K, 1080P, 720P, CVBS (depends on camera)
- Video Input: 4-pin M12 connector, compatible with our ZB1970LED camera, BNC/BINDER adapter or other options available for compatibility with our other cameras. Also includes 12-pin LEMO connector with laser measurement, RS-485, focus, zoom, PWM LED control, etc.
- Compatibility: AHD, TVI, CVI, and analog CVBS PAL/NTSC video cameras
- Video Output: 4K HDMI
- Battery: Internal, removable 6500mAh 8.4V, 6/8 hours autonomy
- Options: LVDS and USB inputs
- Microphone: Yes, integrated for live audio commentary
