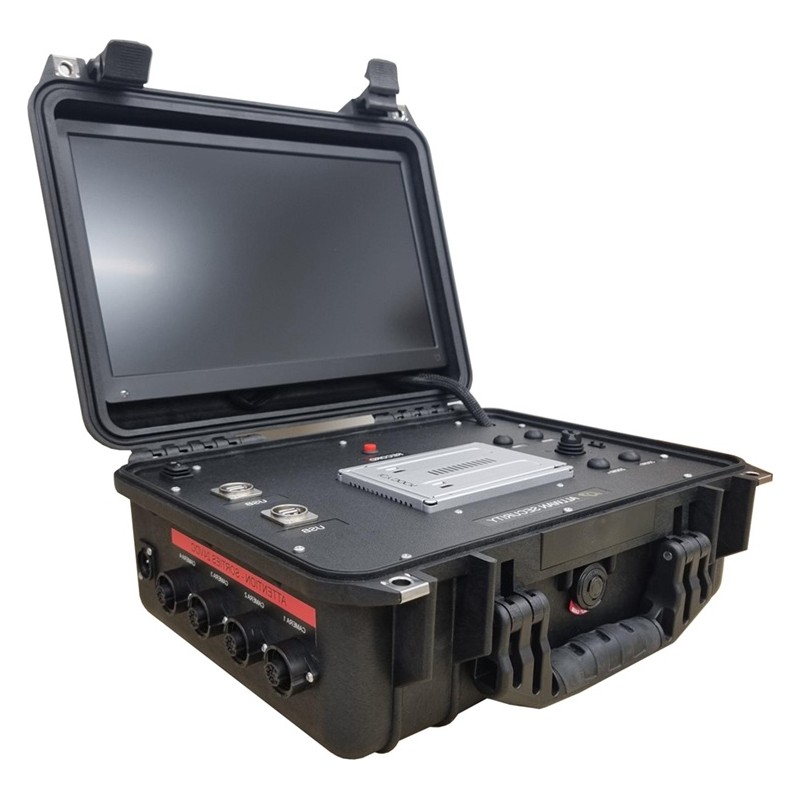

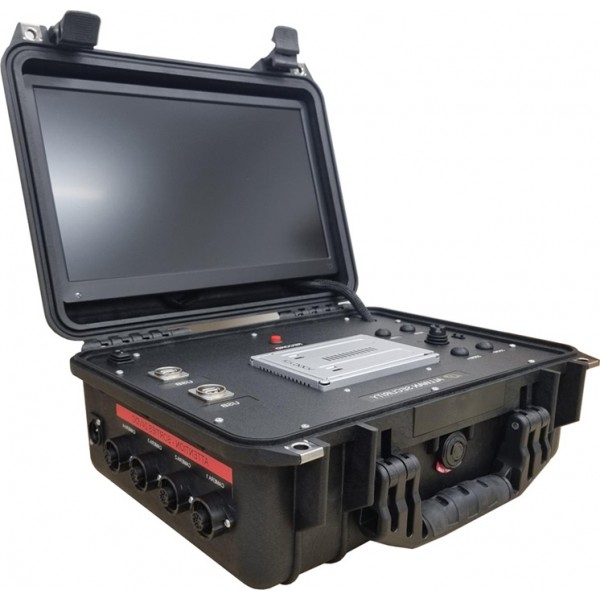

VDR-450HDIP Full HD Monitor Case

Description

Vision and recording case, with 1 to 8 channels, customizable according to your requirements. Specifically designed for temporary field applications, remote sites, vehicles, inspection, and surveillance of handling, machining, and industrial processes, it deploys quickly and is operational in just a few minutes.

A compact and rugged all-in-one solution for temporary industrial applications with high image quality requirements.

The video recording case is IP67 waterproof when closed.

Equipped with a 15" 1920x1080 screen for better viewing, it can accommodate 4 or 8 IP cameras, depending on the model, with integrated POE power.

Several recording modes are available, including manual via an ON/OFF button, continuous, scheduled weekly, or motion detection.

It comes with a 512GB SSD and supports up to 10TB.

Its HMI interface also allows control of PTZ motorized cameras.

A wide range of ALLWAN-SECURITY industrial and submersible cameras is compatible; please consult us.

Custom-made solutions, both single units and in series, according to your specifications.

Technical Specifications

• Reference: VDR-450HDIP (4 Ethernet inputs) and VDR-850HDIP (8 IP inputs)
• 15" Monitor
• 4 or 8 POE IP video inputs
• OnVif protocol
• 4K recording at 25 frames per second
• Recording modes: Continuous, scheduled, manual, motion detection
• 12VDC power supply or internal battery
• 500GB hard drive recording
• Oversized buttons for easy use, even with gloves
• Intuitive menu access via mouse

Most Requested Options

• PTZ control for motorized cameras
• Camera LED adjustment
• Internal battery
• Microphone for audio comments
• Backlit monitor for better outdoor visibility
• Case customizable according to your needs
