PV-500 NEO PRO Wifi / DVR / Lockout Jack (Military Grade)

New product


PV-500 Neo Pro
Wifi / DVR Portable Recorder
New lock socket (military rank)
Dim plug For connecting the camera to the DVR. DVR with LCD touch screen 3 '

More details

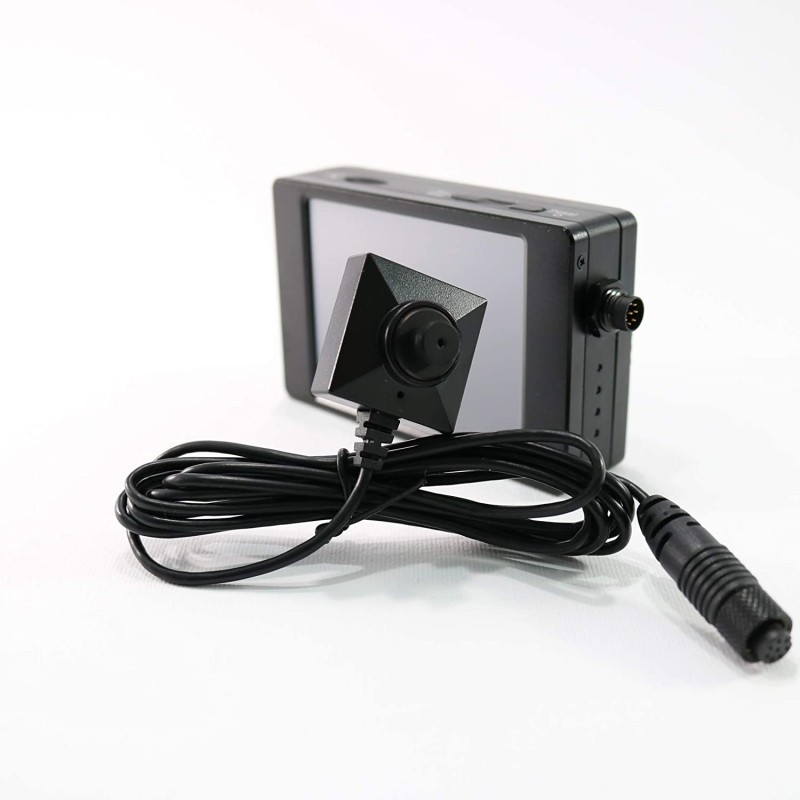

The PV-500 Neo Pro is a portable Wi-Fi DVR, which has a new lock socket (military grade) dim plug for a camera connection to the DVR. Like the previous model (PV-500 HDW Pro) this DVR offers a Wi-Fi connection via Smartphone to the application, which allows live monitoring of the video stream, uploading videos, snapshots, as well as video settings. 'apparatus.

The DVR has a 3 'LCD touch screen. This device is usable in many ways; via the app, via the remote control, via the LCD screen, or via the cable controller (supplied with the accessories). It can be used as a standard DVR without the connection to Wi-Fi or manipulation via the application, however, it can also be used as a secret DVR when activating recording or snapshots via your smartphone.

Focus - Improved dim plug, this military-grade plug for the CAM to DVR cable and its connection ensures that signal problems are a problem of the past. Interruptions can no longer occur, whether you are moving during recording or hiding the device in a hard-to-reach place.

Wi-Fi module - It is now well tested and we know that the Wi-Fi is ideal for secret indoor operations, as well as for short-distance outdoor activities. The signal can cross several rooms and also works outside, where it can reach 100 m.
The distance depends on the location of your router and the signal strength.
To cover long distances, we recommend our IP products, where you can monitor live streaming from anywhere in the world once you have set up the device.

Controller Cable - The controller cable allows you to use the DVR when it is in your pocket or hidden elsewhere (purse). It is easy to use and offers several functions.
Plug the controller cable into the control port.
To turn on the device, slide the controller down and hold for 3 seconds. The device starts recording instantly. To turn off the unit and stop recording, slide the control dial down again and hold for 3 seconds.
To turn on Wi-Fi, slide the controller down and hold for 1 second while the controller cable is turned on. To turn off Wi-Fi, slide the controller down again and hold for 1 second.

Model PV-500 NEO PRO Wifi / DVR
Video input: CMOS camera BU-18Neo (2000 * 1121)
Compression algorithm: H.264, JPEG
File Format: MOV, JPG
Video Recording Mode: Auto / Manual / Motion Detection / Crush
Recording resolution :: 1080P / 720P / WVGA
Frame rate: up to 30 frames per second
Wi-Fi: integrated Wi-Fi module (IEEE 802.11b / g / n)
Memory Type: Micro SD Card (SDHC up to 32GB)
Data interface: Mini USB 2.0
Date / Time Table: YYYY / MM / DD, HH: MM: SS
Power input: DC 5V
Power Consumption: 380mA-440mA
Battery life: 160 minutes resolution at 1080p with BA-2200
Dimensions: 85 * 54 * 21mm (with battery)
Weight: 104g (with battery)
