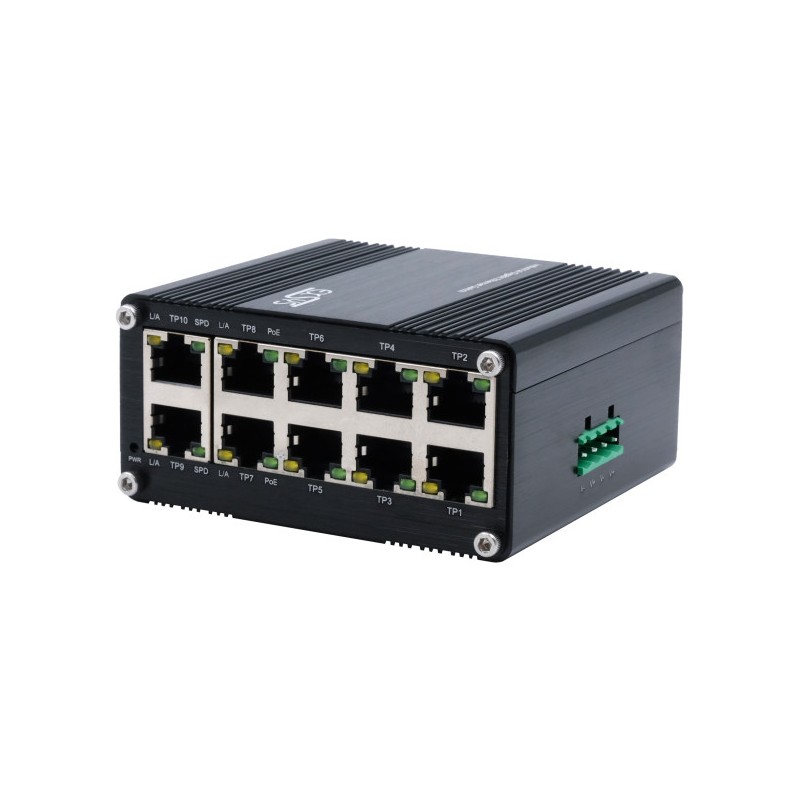

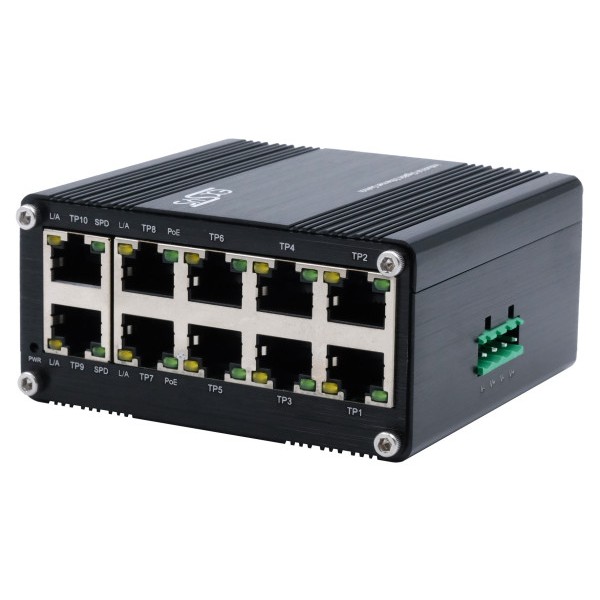

10-Port 10/100/1000T Gigabit Ethernet
Power up to 8 PoE-capable remote network devices, transfers data and power on one single cable
Fully IEEE 802.3af compliant PoE (PSE) type 1 = 15.40W and IEEE802.3at PoE+ (PSE) type 2 = 34.20W
Maximum power delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B
Auto-MDI/MDIX eliminates the need for crossover cables
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
Supports jumbo frames up to 9KBytes
Plug and play, no configuration and installation required
Terminal block for redundant DC input, 2x 48 V to 57 VDC
Rugged, very compact metal housing, IP40
Includes DIN-Rail Kit
Extended operating temperature range from -40°C to +80°C
48V active PoE splitter to 12V DC 1.5A.
