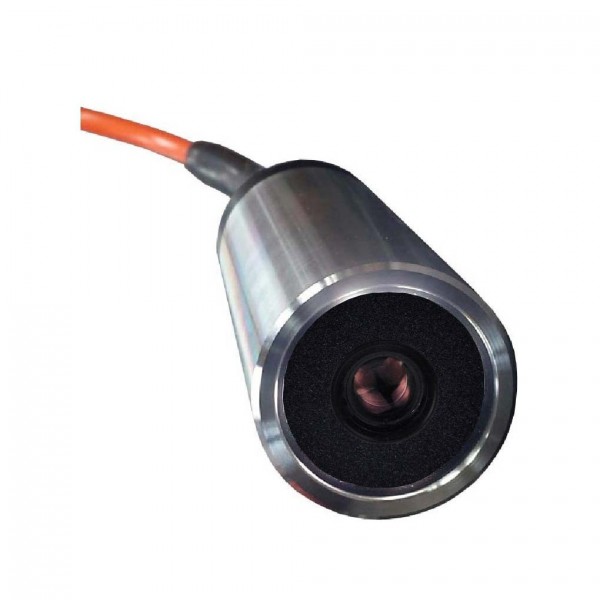

UW-38iHD Underwater Camera 200m - 1080i 1080p
New product
High definition mini camera in stainless steel 316L submersible 200m depth.
Especially designed for TV production, 1080i or 1080p.
As optional, a remote controller for video settings.
IP68 immersion protection 100m or 200m reinforced allows permanent use in water.
Description
Professional FULL HD underwater camera with HD-SDI/EX-SDI video output, highly valued in television production.
A reinforced French-made equipment designed for frequent assembly/disassembly, submersible up to 200m, and featuring a 1080i50 or 1080p output (to be specified).
Optionally, video settings can be managed via an OSD menu and a wired remote control:
- Exposure: Shutter, DSS, AGC
- White Balance: Auto, Push, Manual
- HLC/BLC
- Image: Sharpness, Digital Zoom, Freeze, Gamma, Flip, DNC, ACE, Defog, Shading
- Special: Detection, Image Stabilization (DIS), Resolution*, Video Signal**
*Resolution options: 1080p60 / 1080p50 / 1080p30 / 1080p25 / 720p60 / 720p50 / 720p30 / 720p25 / 1080i60 / 1080i50 frames per second.
**Video signal: HD-SDI or EX-SDI
Applications
- Submerged video
- Television broadcasts
- Broadcast
- Compatible with BlackMagic solutions
Technical Specifications
- Mini submersible camera, 200m depth, made of 316L stainless steel - 1080p/1080i Full HD resolution
- Lens options: 2.9mm, 3.6mm, 6mm, 8mm
- Power supply: 9
12VDC or 1430VDC - Polyurethane immersion cable sold separately
- Diameter: 39.8mm
- High-quality machined 316L stainless steel body
- Highly transparent, scratch-proof sapphire crystal lens
- Mounting supports optional
- Weight: 800g
Options
- Stabilized power supply: 12V or 24V
- Underwater connector (Jupiter, SubConn, Glenair…)
- High-quality reinforced cable with polyurethane sheath
| Camera type | Fixed |
| Video Signal | SDI / HD-SDI / EX-SDI / 3G-SDI |
| Resolution | 1920x1080 Full-HD |
| Material | SST 316 |
| Ingress Protection | IP68 |
| Cable length | Sold separately |
| Built-in illuminator | Without |
| Power Supply | 12VDC |
