Caméras sous marines sur-mesure
New product

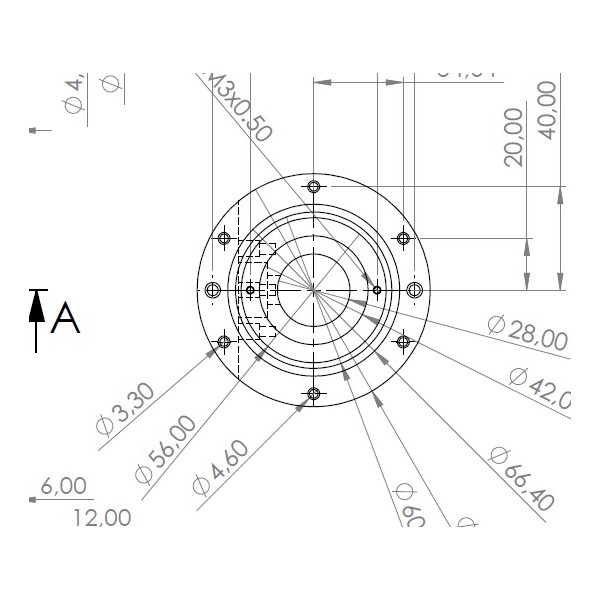

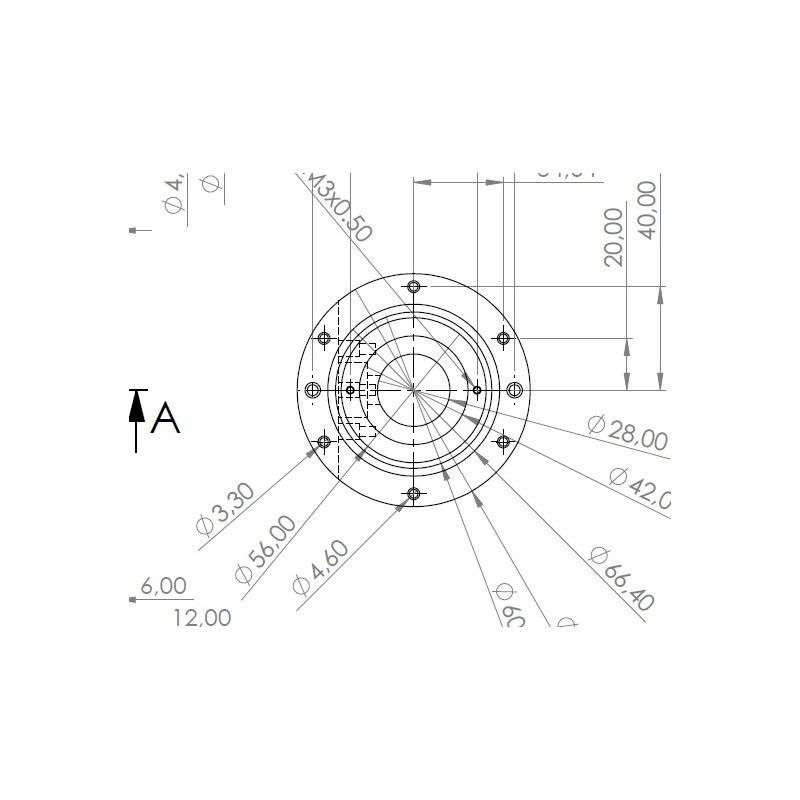

Study and custom manufacturing of underwater cameras
With its expertise, design office, and machining center, ALLWAN-SECURITY's Industrial division designs and manufactures custom industrial and submersible cameras
Description
Service pressure up to 100 bars (1000m immersion)
Wide or narrow field of view, zoom lens controllable on demand.
Resolutions ranging from D1 (704*576) to 4K or even 8K, depending on models and technologies.
Materials
Aluminum (anodizing available)
Delrin (machinable polymer)
PVC (for environments with H2S presence)
Stainless Steel 316L (electropolished finish, marine and industrial applications)
Bronze (marine applications, compatible with Souriau Jupiter M-series connectors)
Common options
Sapphire crystal porthole
Dimmable LED lighting
Mounting brackets
Laser pointer
GigE camera trigger management
Video technologies
Analog CVBS PAL or NTSC
HD over coax AHD, CVI, TVI
Uncompressed HD-SDI/3G-SDI/6G-SDI
IP over Ethernet network
GigE IP
Custom options on request
Cables
Video, power, and data with PUR sheath (diameter 9.8mm)
Ethernet with PUR sheath (diameter 11mm)
Ethernet + 4 power/data immersion PUR (diameter 16mm)
SDI video + power
Management
Our cameras interface with our monitoring cases, where we also offer custom solutions based on your specifications.
Certain models can be directly connected to a PC (IP and GigE cameras)
