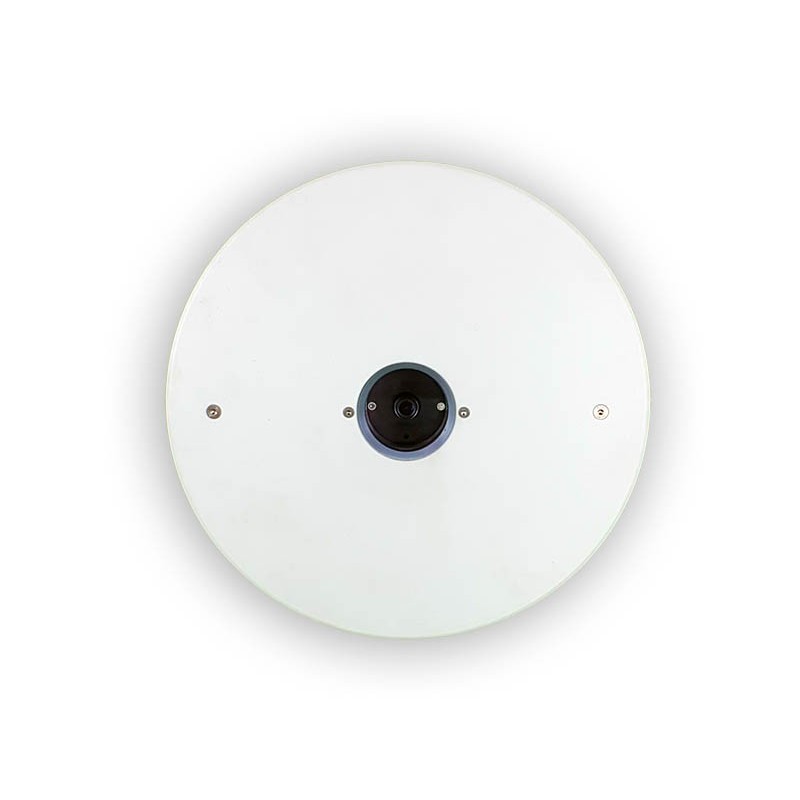

Swimming Pool Underwater camera | UW-POOLHD47
Permanent submersible to 50m for public pool monitoring.
Materials selected for chlorine resistance.
IP camera under the standardized OnVif protocol, RTSP video stream.
Description
The new UW-POOLHD47 submersible anti-drowning surveillance camera enables pool monitoring, providing extra safety for customers underwater.
100% OnVif, RTSP, and RTP compatible, it works with all IP recording systems on the market.
The underwater pool surveillance camera UW-POOLHD47 comes with an integrated wide-angle lens and a PAR56 type mounting pot (see downloadable technical sheet).
Specifically designed for poolsA high-quality lens with a finish free of any protruding edges Stainless steel A4 screws with pool-compatible technical plastic materials The 2.8mm HD wide-angle lens offers an 81° or 114° angle underwater depending on the type of porthole, and 1080p 2.43Mp video Custom adaptation possible for your own mounting pot, subject to feasibility Created and manufactured in France by ALLWAN-SECURITY A special chlorine-resistant high-strength PU cable |
|  |
| Simplified maintenanceLike public pool spotlights, our camera allows you to store up to 6m of cable for potential maintenance, without the need to drain the pool. The cable is easily placed into the mounting pot thanks to its semi-rigidity, which allows it to fit well along the walls. Its thick 2mm PU pool sheath ensures excellent resistance and shape memory for passing through the cable gland. Cable diameter: 11mm |
Technical specifications
- Reference: UW-POOLHD47
- Construction: PVC or 316L stainless steel
- Mounting flange: White PVC (standard), gray or black. 316L stainless steel option available
- Sealing: IP68 - Permanent immersion at 50m
- Mounting case: V4A stainless steel with lateral or rear cable exit. Compatible with tiles or liners. ABS pot for stainless steel panel pools available as an option.
- Cable reserve capacity in the pot: Up to 6m
- Window material: Polycarbonate or sapphire crystal (optional)
- Window type: Flat or hemispherical for a wider viewing angle
- Viewing angle: 81° horizontal with flat porthole, wide angle 114° with optional hemispherical porthole
- Resolution: 2.43Mp
- Sensitivity: 0.1Lux
- Video stream: OnVif, RTP, RTSP
- Diameter of finished product, installed: 325mm
- Power supply: Passive POE 12V, POE injector provided
- Cable: Chlorine-resistant polyurethane for chlorinated water 4mg/L - Sold separately by the meter (maximum 100m)
