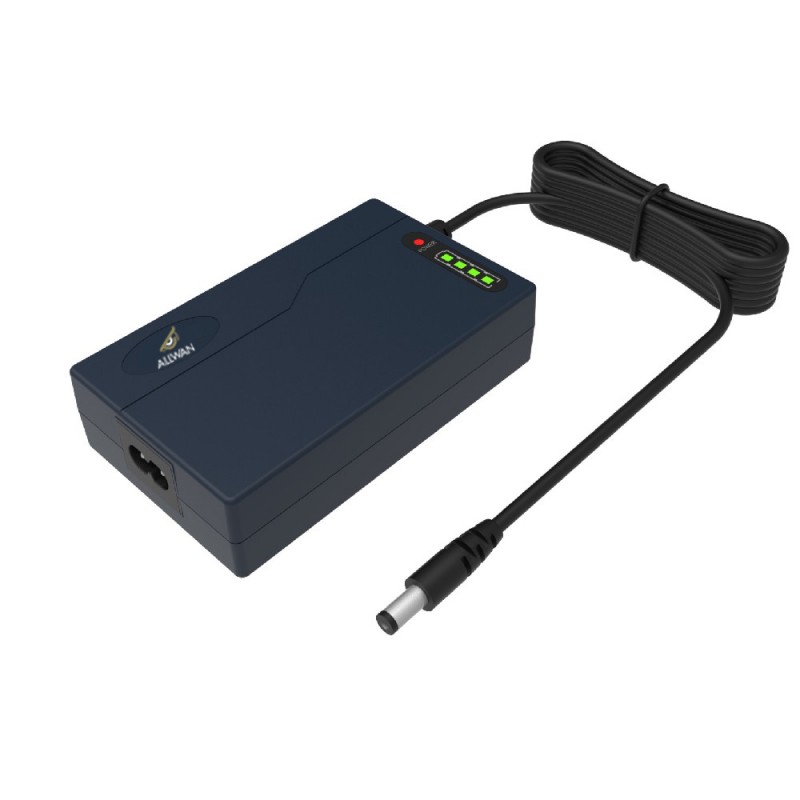

GaN08516-5 Chargeur Litium-ion 4S 16.8V
New product
Charger Lithium ion 4 Cells with LED charge indicator
Tension 16.8V +-1%
Charge Current 5.0A +-7%
Cut-off current 0.5A +-0.1A
4 level charge
Capacity level
Batteries 4S Li-ion 5~50Ah
Detailed technical indicators:
Rated input: 100~240V
Rated output: 16.8V 85W,
Suitable batteries: Li-ion
Charging process: "pre-charge + C.C. charge + C.V. charge + cut-off" 4 stages for Li-Ion type;
Charging indication: Four segment green LEDs to indicate battery SOC (capacity level)
Erros protection: overcurrent, overvoltage, short circuit, battery reverse connection, etc
Power efficiency: 96.7% @ 220V full load output
Back Drain current: less than 1.5 mA (current flowing from battery to the charger when AC off)
Operating temperature: - 10~+40 ℃
Heat dissipation: natural cooling (without fan)
AC Input plug: AC inlet ICE-320-C6 type, AC cable / plug is optional part.
DC Output plug: standard DC terminal 5.5 * 2.5 * 12mm, output wire AWG18, length 1.5m
Safety certification: CE, cTUVus, FCC
Safety standards: GB/T13837; GB17625; GB8898; UL1310; EN60335; EN62233; EN55014; EN61000
Dimensions Weight: 114 x 68 x 28mm/220g
