DS-1600KI Control panel

DS-1600KI Description – Network Control Keyboard

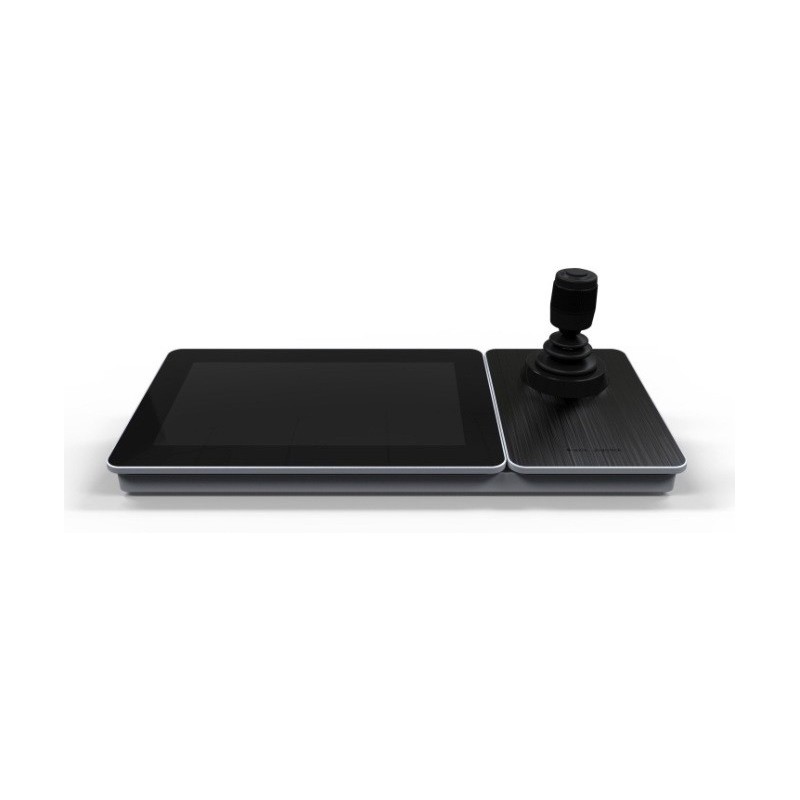

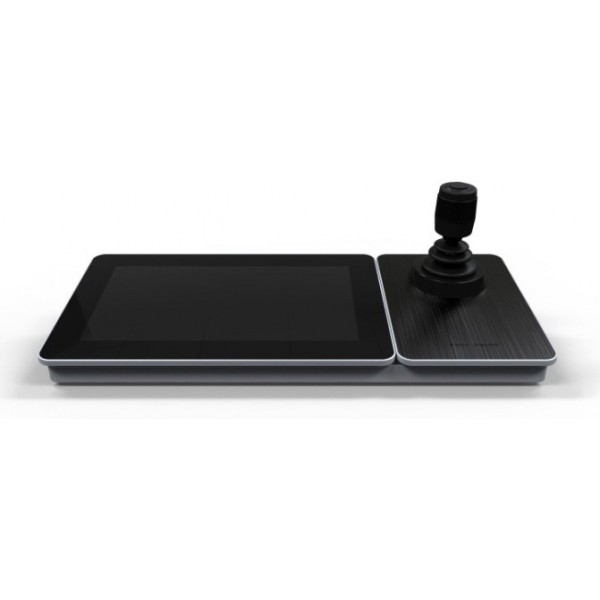

The DS-1600KI(B) is a high-end network keyboard with a 10.1" touchscreen, designed for smooth control of Hikvision video surveillance systems. It offers extensive connectivity (Ethernet, Wi-Fi, RS-232/422/485, USB) and compatibility with ONVIF protocols.

Key Features

• 10.1" TFT LCD touchscreen (1280 × 800)

• 4-axis joystick with integrated zoom

• HDMI and DVI video outputs

• Direct control of IP cameras, NVRs, DVRs, and decoders

• Powered via 12 VDC or PoE

• Wired or Wi-Fi network connection

• Video decoding up to 4K@30fps

• Built-in Android system

Technical Specifications

• Model: DS-1600KI(B)

• Display: 10.1" TFT LCD, resolution 1280 × 800

• Joystick: 4-axis

• Video Outputs: 1 × HDMI, 1 × DVI

• Interfaces:

  • 2 × USB 2.0

  • RS-232, RS-422, RS-485

  • Ethernet 10/100/1000 Mbps

  • Wi-Fi supported

• Audio:

  • Input: 1 channel, 3.5 mm jack (2.0 Vp-p, >1 KΩ)

  • Output: 1 channel, 3.5 mm jack (2.0 Vp-p, 600 Ω)

• Video Decoding:

  • Formats: H.264, H.264+, H.265, H.265+, MPEG4

  • Capacity: 1 channel at 4K@30fps or 4 channels at 1080P@30fps

• Power Supply: 12 VDC or PoE (802.3af)

• Power Consumption: ≤15 W

• Dimensions (W × H × D): 404 × 163 × 180 mm

• Weight: 1.7 kg

• Operating Temperature: -10°C to +55°C

• Operating Humidity: 10% to 90%
