AL-PTZKIT2 Integrable PTZ Control Console PELCO-D
New product
A Control Kit for Motorized Camera to be Integrated into a Panel
Ideal for industrial systems, foundries, factories, machine tools, process control
Ready to use
Special functions available
RS-485 Pelco-D
Up to 16 addressable cameras
Description
The AL-PTZKIT2 is a tool composed of a joystick and buttons that can be integrated to create a control station for motorized cameras directly on an HMI (Human Machine Interface) panel, offering a solution perfectly suited for machine control stations with industrial-grade quality.
When a button or joystick is pressed, the board emits a control frame in RS485 through its output using the Pelco-D protocol.
The Schneider M22 buttons are waterproof and professional, and the APEM joystick provided is a robust controller. The integration of the entire system into a chassis allows for a solid solution that is easily handled with gloves, both indoors and outdoors.
Customizable Functions
The management electronics board is factory-configured according to your request.
It has 13 programmable contact (pulse) inputs, 4 of which are used for zoom +/- and focus management.
The remaining inputs can be used to:
Select camera addresses if there are multiple to control (4 bits, 16 addresses)
Trigger preset commands
Manage the iris of an Open/Close camera
Technical specifications

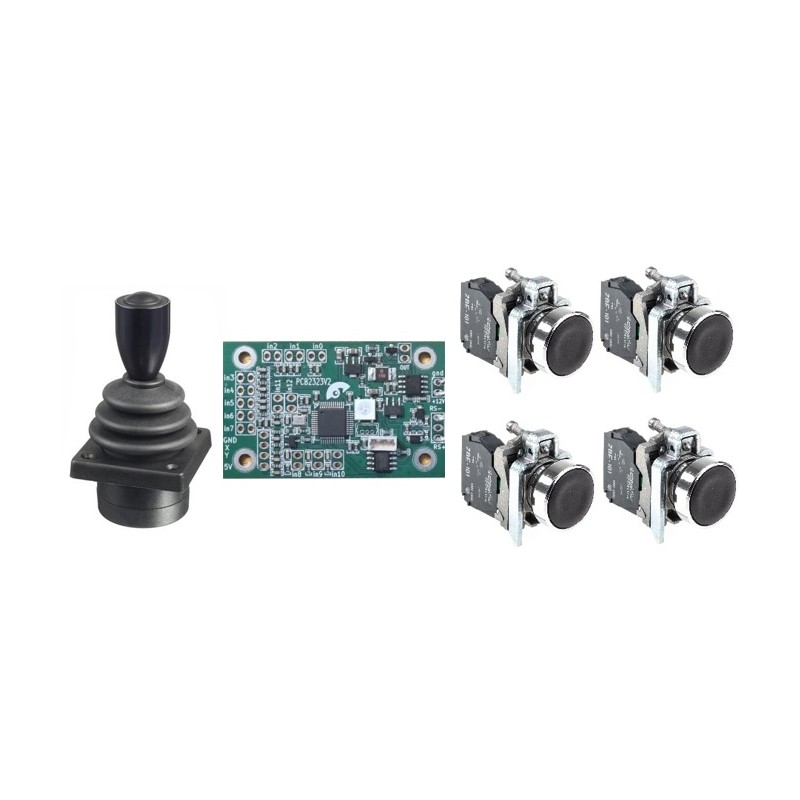

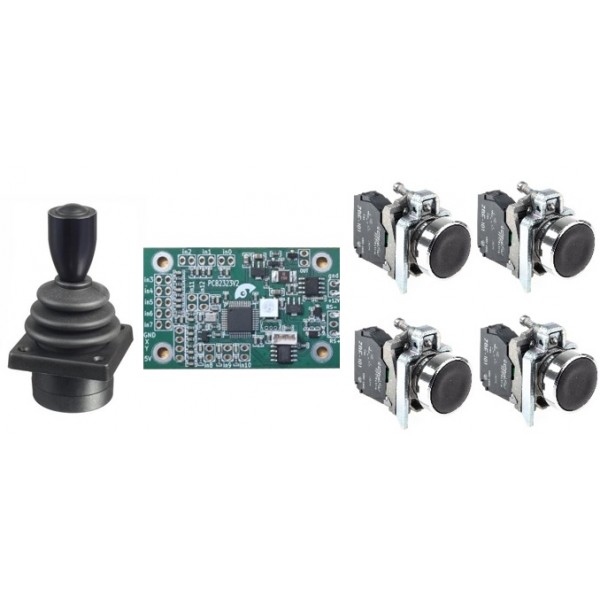

AL-PTZKIT2: Rotating camera control set with management board made in France by ALLWAN SECURITY.
2-axis Hall-effect joystick
4 Schneider Electric XB4 22mm buttons (zoom +/-, focus n/f)
Customizable functions (presets, iris, camera address)
12VDC power supply (provided)
Pelco-D 2400bps, configurable to 4800bps and 9200bps
