Pelco controller | 3-Axis | RS485 Pelco-D
New product
3-axis PTZ control keyboard for analog cameras
RS485 Pelco-D protocol
LCD display for camera address information and configuration menu
12V DC power supply
Pelco-D Controller - Description

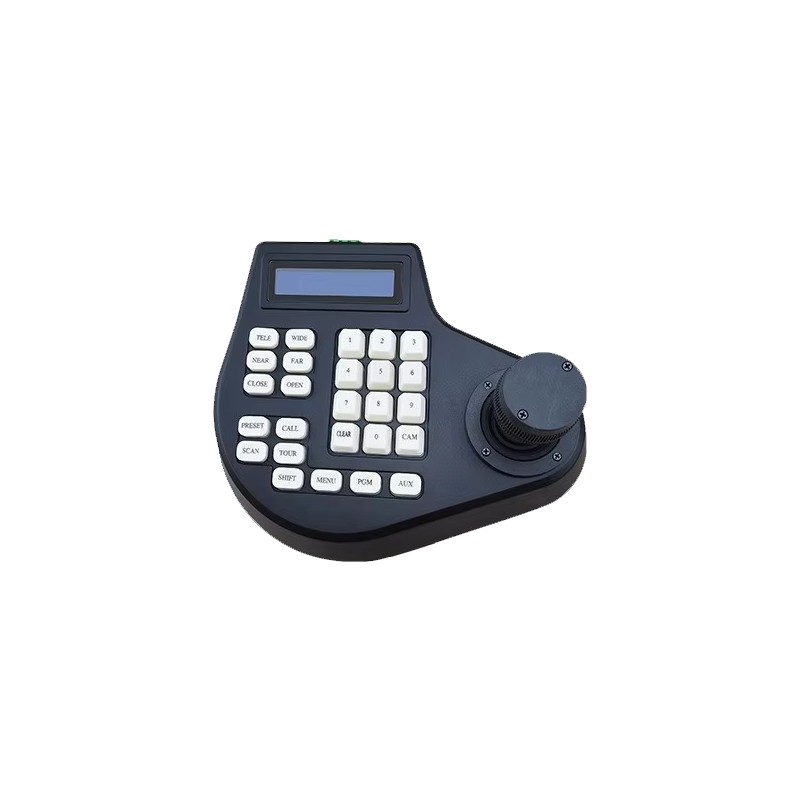

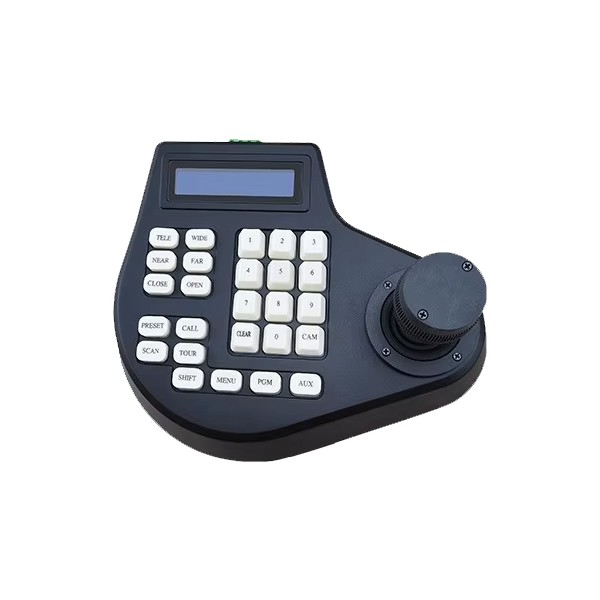

The intelligent PTZ control keyboard KB-782 is a versatile control solution designed for smooth operation of various camera systems.
This multifunctional keyboard allows users to set and call camera functions, as well as manually control pan, tilt, zoom, focus, and iris.
Main Features
- 3D Joystick Pan/Tilt/Zoom
- RS-485 Pelco-D/P, Samsung
- Preset, Tour, Pattern, Iris, Focus
- Up to 255 camera addresses
- 12VDC power supply – 5W
Technical Specifications
- Reference: KB-782
- Type: PTZ keyboard for cameras
- Joystick type: 3 axes (PAN/TILT/ZOOM)
- Progressive speed control
- Camera address: Max 255
- Communication: RS-485
- Protocol: Pelco-D, Pelco-P, Samsung
- Baud rate: 1200, 2400, 4800, 9600, 19200 Bps
- Functions: Preset, Tour, Pattern
- Preset: Max 128
- Tour: 4 tours of 16 positions each
- Lens control: Zoom, Focus, Iris
- Other: Password setup function
- Power supply: 12VDC 500mA
- Humidity: 0-90% RH
- Operating temperature: 0-60°C
- Dimensions: 15 x 15 x 10 cm
