Mini Borehole 100m Inspection Camera | TWISTCAM-Mini

Description

The TWISTCAM-Mini is a compact, lightweight, and portable borehole inspection camera designed to inspect your clients' wells without requiring a major investment.

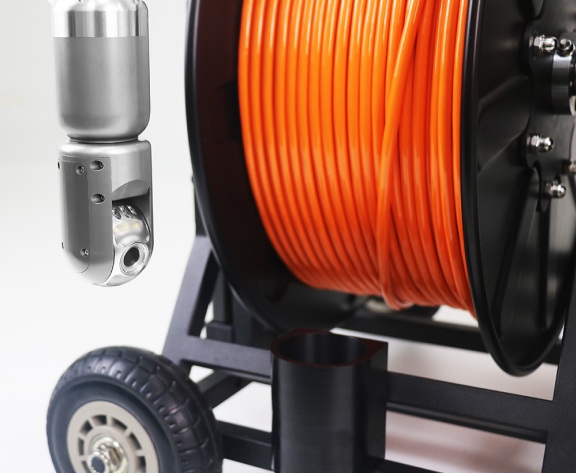

The TWISTCAM-Mini well inspection camera features a motorized head that rotates in all directions, powerful adjustable LED lighting, and excellent image quality to ensure clear vision under any conditions.

Thanks to its adjustable focus, you can manually fine-tune sharpness from as close as 3 cm.

Our borehole exploration camera comes with a high-quality flexible cable, delivered on a reel with a slip ring, allowing the cable to unwind while staying connected to the control case.

The integrated precision odometer (accuracy ±1%) displays the deployed cable length directly on the video—ideal for pinpointing the exact location of a defect when using the borehole survey camera.

The camera is equipped with an industrial-grade LEMO-style connector and a rugged anti-pullout system.

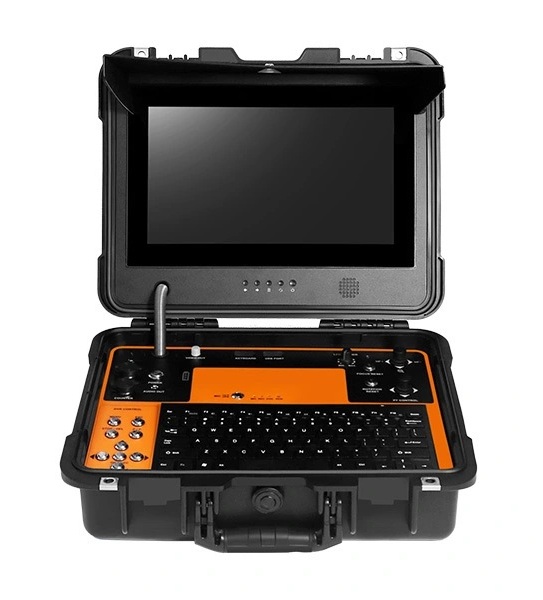

The portable video control unit includes a built-in battery for complete autonomy. Its bright 10" widescreen display provides comfort during inspection. The control case allows you to operate the camera and lighting, as well as:

• View live video

• Record high-quality footage

• Add live voice commentary during inspections

• Type on-screen text for quick diagnostics, which is recorded in the video

Videos are saved in AVI MPEG2 format in HD 1280x720p, compatible with any Windows or Mac computer.

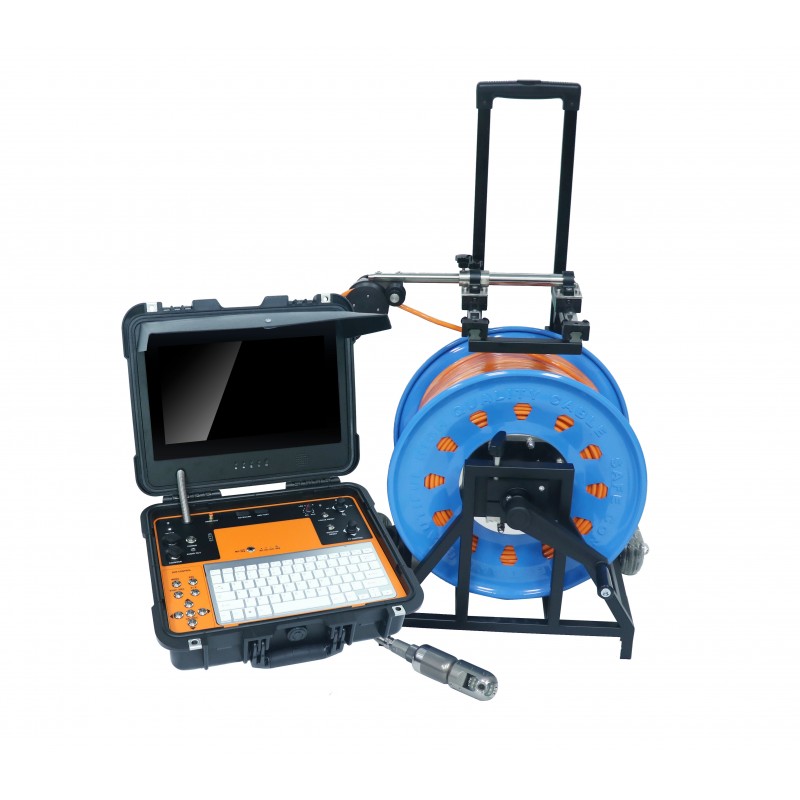

A compact, portable, and affordable borehole inspection camera system

.

Technical Specifications

• Model: TwistCam-Mini
• Type: Borehole Inspection Camera
• Inspection diameters: from 55 mm to 900 mm
• Cable length: 100 m
• Odometer: Yes, with reset and calibration

Camera

• Camera diameter: 50 mm
• Rotation: 360° horizontal (endless) / 180° vertical
• Integrated lighting: Yes, 6 adjustable white LEDs, 500 Lumens
• Video resolution: 1280x720 (HD)
• Lens field of view: 90°
• Waterproofing: 10 bar – immersion up to 100 m
• Focus: Automatic and manual focus adjustment

Video Control Case

• Screen: 13" high-brightness display
• Display resolution: 1024x768
• Recording: USB stick
• Comments: Live audio and on-screen text recorded directly in video
• Battery life: Approx. 7 hours
• Recording: Video and photo in HD

Included in the package

• Motorized stainless steel camera, 50 mm diameter
• Battery-powered case with Bluetooth keyboard, 13" HD screen, and built-in recorder
• 32GB USB drive
• Wireless remote control
• Reel with 100 m cable and built-in centimeter counter
• Connection cables
• Centering kits: rigid 78 mm + flexible centering guide for 160–220 mm
• Charger

Optional

• Adjustable stainless steel centering device with side wheels
