ALLWAN-SECURITY has designed the first pole inspection system rugged for industry, with a Full HD video quality in 1080p.

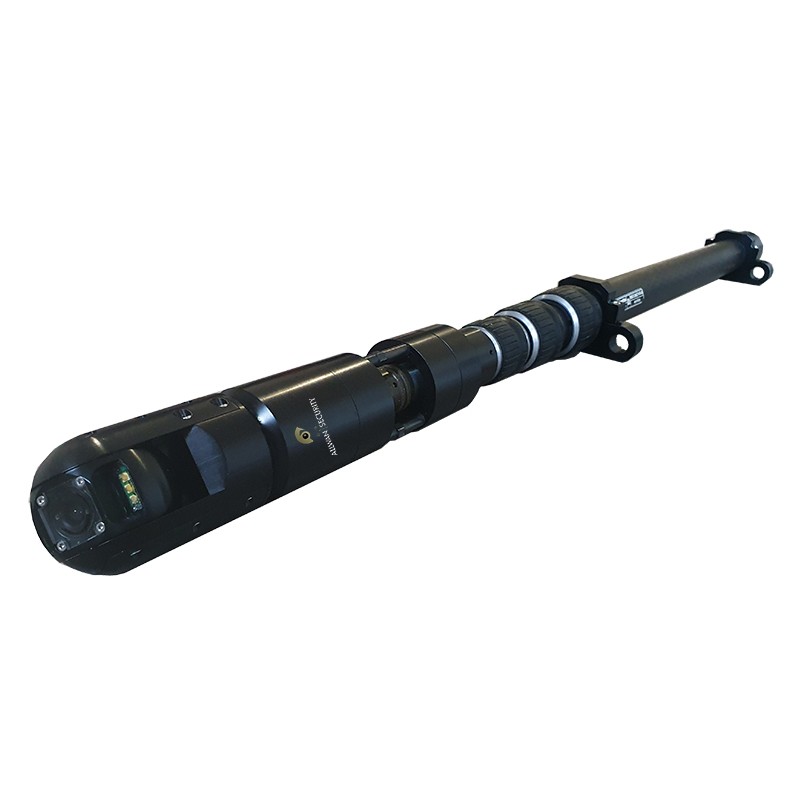

The VISIOPOLE is a modular pole camera system, customizable with industrial construction method to operate in harsh environments.
Our telescopic poles in carbon from 270cm to 1000cm (depend of models), allow to inspect plants, tanks and all areas difficult of access, offering a NDC (Non destructif control).
In its wireless version, you have 2 batteries with 4h of work each.
The pan tilt control is done by a joystick system and 2 buttons for the LEDS.
Our camera heads (except thermal) are fully IP68 waterproof up to 10m underwater. They can be controlled at 360° endless for PAN, and +/-110° for TILT.
With a 1080p video sensor, with high luminosity sensibility, the video is perfect in all conditions, even in darkness thanks to the 1200 lumens white leds, allowing a lightning distance of max 8-10m.
In sur-exposition case, the camera intelligence automatically corrects the video to get a clear and focused image.
The VISIOPOLE is delivered in a rugged case, waterproof especially designed for industrial work and frequent handling.
A compact tool, easly and quickly deployed, offering an exceptional video quality.
Several configurations are available:
Our R&D department in Electronic and CAD can modify and adapt our equipment on your requirements (on costs)
A wide range of pole as standard in carbon and on special request is available:
Color head with white leds
Thermal head - FLIR 160 x 120 Ø 50 mm
Xgrip-Clamp Quick set for smartphone
BQVISIO manual tiltable to 90°
Battery system with built-in wireless Tx
Visiohand Handle PTZ Joystick (option)
Light control and pan-tilt
Quick mouting set
Visiohand 720p control monitor with clamp (needed with the VisioHand, option) :
Military type Carrying case
ALLWAN offers wide range of 4 way articulation remote visual inspection camera. The high-end night vision industrial inspection videoscope is a portable, durable, and easy to use inspection tool, designed to remotely inspect area that are not otherwise visible. The IR offers operators the ability to detect persons or animals when no ambient light is...
Endovicam - Advanced video inspectionPortable industrial endoscope. Ultra Definition (720P / 1080P Photography & Video). Replaceable monitor 360 ° precise articulation With joystick. Double battery, 8 hours of autonomy. Working distance 1.5m / 2m / 3m / 4m / 5m / 6m.
Infrared Thermal Endoscope RB-1710 SeriesResolution of the 80x60 / 160x120 probeSpecial features Pro version (automatic search for hot and cold spots)Length of the fiber 1 meterAvailable in Standard / Professional version.
FCS680 - Flexible Endoscopes for Police / ArmyPatented OptiLux ™ No-Light Loss TechnologyAngle of 360 ° view controlled by joystick3.7 "touch screen, 640 X 480p resolutionCapture of images (JPEG) and video (AVI)SD card for multimedia storageRechargeable Li-ion batteryCertified use hazardous areas of Class 1, Division
EB23080 Invisible Infrared VideoscopeHigh resolution industrial articulated endoscopic camera. Lighting with infrared optical guide. Interchangeable sheath. Inspection distance 5 ~ 10 meters. Viewing angle 150 metersWaterproof IP67, Anti-shock.
FM3-P IR Series Police VideoscopeInterchangeable night vision insertion tube(infrared thermal imaging)Micro probe, 360 ° articulationLong-distance night vision inspectionReal-time dynamic monitoringRemote image transmissionLightweight and portable, only 45g
Motorized telescopic Pan & Tilt pole camera for inspection and securityMotorization 360 ° horizontally endless and -110 ° ~ + 110 ° verticallyWhite or invisible 940 nm infrared lightingOFDM video transmissionBattery life 4 hoursWaterproof IP68Rugged Polecam Customization possible
Under door camera with a space of 6.5 mm. Angle offset of 30 ° for total observation of the workpiece. Mount boom (C), allows integration of CCTV cameras (Watec type). Infrared light to see in a very low light. Observation is done on a portable monitor or a mini DVR. Optional: ultra-sensitive microphone for listening to the room.
Thermal 160X120p Telescopic Pole Camera Pan Tilt Motorized 360° Wireless for inspection and security. Telescopic Pole Inspection Camera, Microbolometer sensor technology FLIR Lepton® 3 VOx (does not require a cooling system).
This camera is designed and manufactured by the company Allwan Security. It has a double vision front and rear with a very high dimmable brightness white lighting allowing to see a box or a room in total darkness.It has a wifi transmission system for viewing and recording the camera on an Android or iOS smartphone or tablet.This endoscope is easily hidden...
TVS-36 Telescopic Pole Pan-Tilt Inspection Camera has a strong and extendable pole, high resolution camera and video viewing system. They are convenient for tasks such as roof and building inspections, aerial photography, inventory checks, gutter cleaning, wildlife surveying, tunnel and manhole inspection, heavy equipment inspection etc. The pan and tilt...
The TP1308D telescopic camera is perfect for execute high corner detection. It includes the 23mm camera head, one DVR control unit, the 5inch monitor and 4 joints of telescopic pole. The power supply is DC 12V. The control box also has built-in 2200mA battery.
Display: 3.5 inches TFT LCDProbe Diameter: 6mmLight Source: IR light, optic fiber light guidingCamera Pixel: 450,000Articulation: 360° all-wayTube Length: 1-2mInspection Distance: 5-10mViewing Angle:90°Bending Angle: ≥150°Brightness: 0~6 levelsMemory: Standard TF card:8GWaterproof Level: IP67Working Time: ≥4 hoursBattery Capacity: 3200mAHBattery Brand:...
• Record thousands of images and hours ofvideo on a standard SD card• Grab still images from captured videodirectly on the base unit• Add voice annotations to clarify findingsPatent# US D6971215 and reduce note-taking High Tech, Waterproof and Versatile Let the VS70 take you where few have gone before.Bring hidden problems into clear view by accessing...
