EB23080 Invisible infrared articulated videoscope
New product

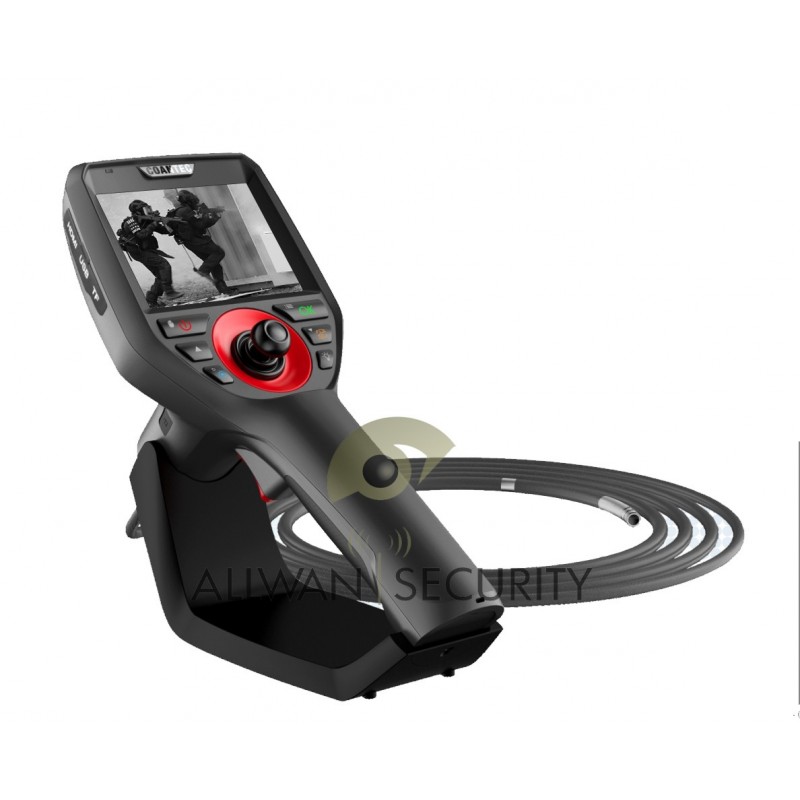

EB23080 Invisible Infrared Videoscope
High resolution articulated endoscopic camera. Lighting with infrared optical guide. Interchangeable sheath. Inspection distance 5 ~ 10 meters. Viewing angle 150°
Waterproof IP67, Anti-shock.
B23080 Videoscope is part of our range of high resolution endoscopic cameras.
Its technical characteristics make it a versatile and powerful tool.
This flexible videoscope provides precision inspection.
Optional fiber diameters variable from 2 to 6 mm interchangeable.
This high-resolution articulated endoscopic camera gives you a viewing angle of 150 degrees.
EB23080 Invisible Infrared Videoscope is IP67 waterproof and shockproof.
Technical characteristics
Endoscopes / Fiberscope
Model: EB23080
Screen: LCD 3.5 '' TFT
Resolution: HD 720P
Lighting: Infrared optical guide
Fiber diameter in IR: 6mm
Fiber: Tungsten metal
Interchangeable sheath: Length from 1 to 2 meters
Angle of vision: 150°
Video recording: Micro-SD (8Gb)
Cable: Audio / video included
Resistance: Anti-shock
Waterproof: IP67
Power supply: LG 18650 - 3200 mAh batteries
Autonomy: 4 hours
Weight 3.55 Kg
1 year warranty
Optional
Other fibers available: diameters from 2 to 6 mm on request with white lighting.
